CAT: 3808

CiNX 3 HDC 1 Stage Alloy

Compare
  • Fluid drag system with smooth start and soft stop technology.
  • 5 selectable positions of fluid pan and tilt drag + 0.
  • 16 positions of counterbalance.
  • Perfect for payload range from 1kg (2.2lbs) up to 19kg (41.8lbs).
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
  • Integrated 100mm bowl.
  • 1-stage rotary lock leg extension.
  • Heavy duty black anodised alloy tubing.
  • Integrated stainless steel spikes.
  • Comes with mid-level spreader.
  • 3 years warranty.

1 customer had already enquired for this product.

From your nearest dealer

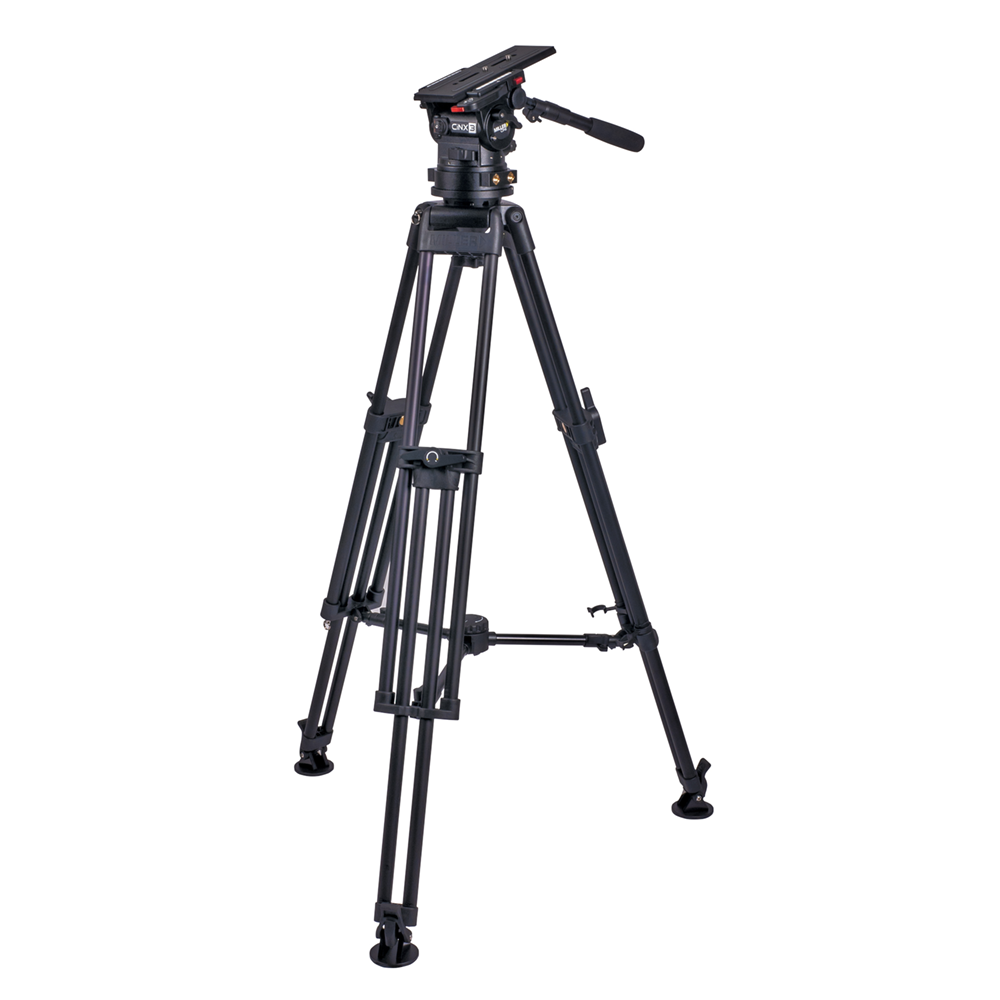

Introducing the 3808 CiNX 3 HDC 100 1 Stage (alloy) system, meticulously engineered to offer lightweight durability and a plethora of features tailored to meet the dynamic needs of cinematographers.

The sideload platform enables swift deployment of camera rigs of various sizes and extends the camera plate’s range of movement, ensuring seamless balancing of front-heavy setups.

Equipped with a wide payload range, precision fluid drag, and Miller’s innovative 16-position CB Plus™ counterbalance system, the CiNX 3 delivers the flexibility, speed of setup, and accuracy demanded by industry professionals.

With a payload range of 1-19kg (2.2-41.8lb) and 5+0 selectable pan-tilt fluid drag positions, the CiNX 3 is ideal for cinematographers working with lighter rigs, offering lighter pan and tilt drag options for smooth operation.

The HDC 100 1-stage tripod incorporates a 100mm bowl, metal rotary leg locks, and comes with the 993 above-ground spreader, ensuring stability and reliability on any terrain.

Engineered with stability in mind, the HDC series tripods utilize heavy-duty 24mm alloy tubing coupled with the Miller 100mm bowl, providing a stable platform in extreme climates and terrains.

Experience maximum lock-off performance with quick-action rotary screw-type leg locks, eliminating the need for maintenance and ensuring hassle-free operation.

The CiNX 3 HDC 100 1 Stage empowers cinematographers to achieve excellence in their craft, setting them apart in the realm of filmmaking.

Specifications - CiNX 3 HDC 1 Stage Alloy

Camera Platform

Side loading quick release camera plate (Arri type)

Components

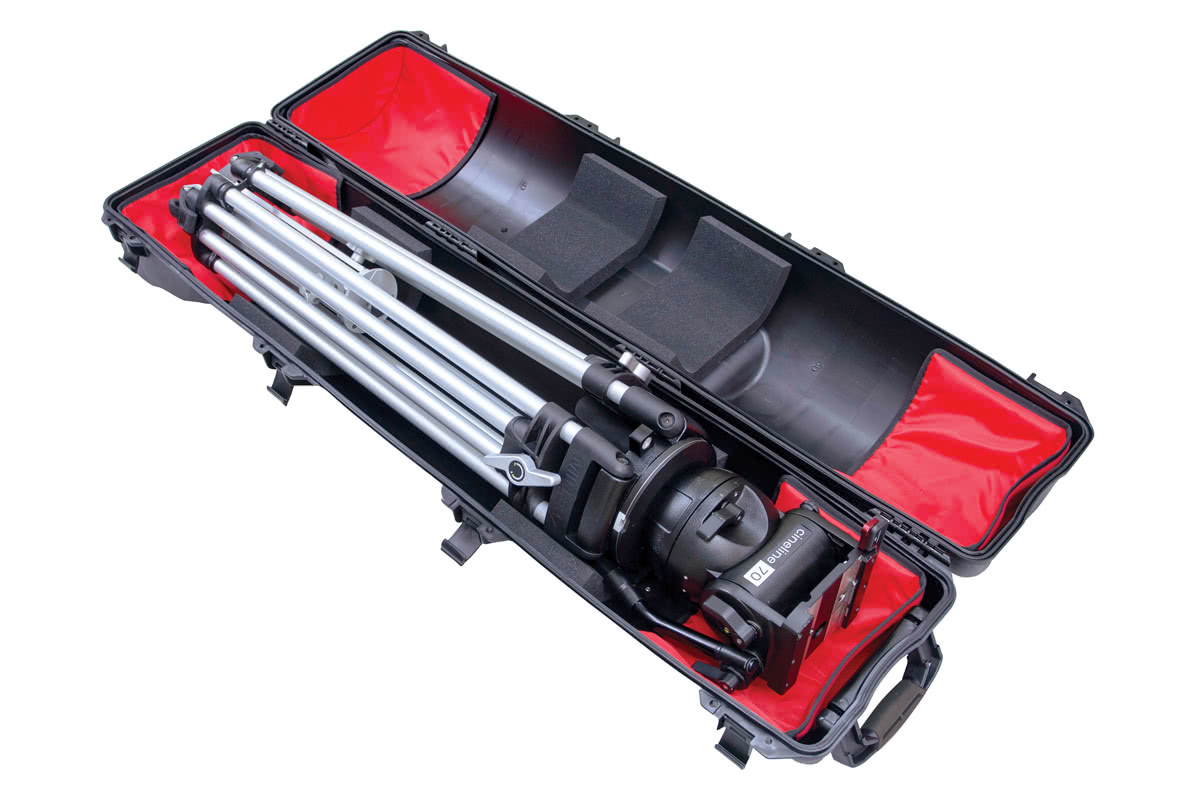

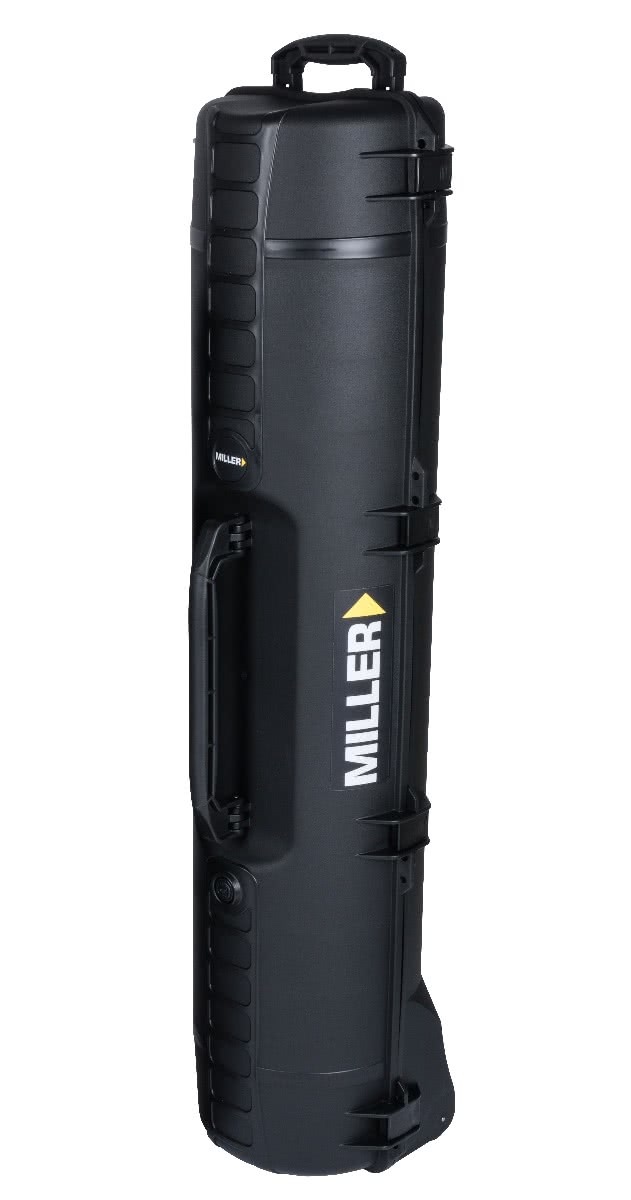

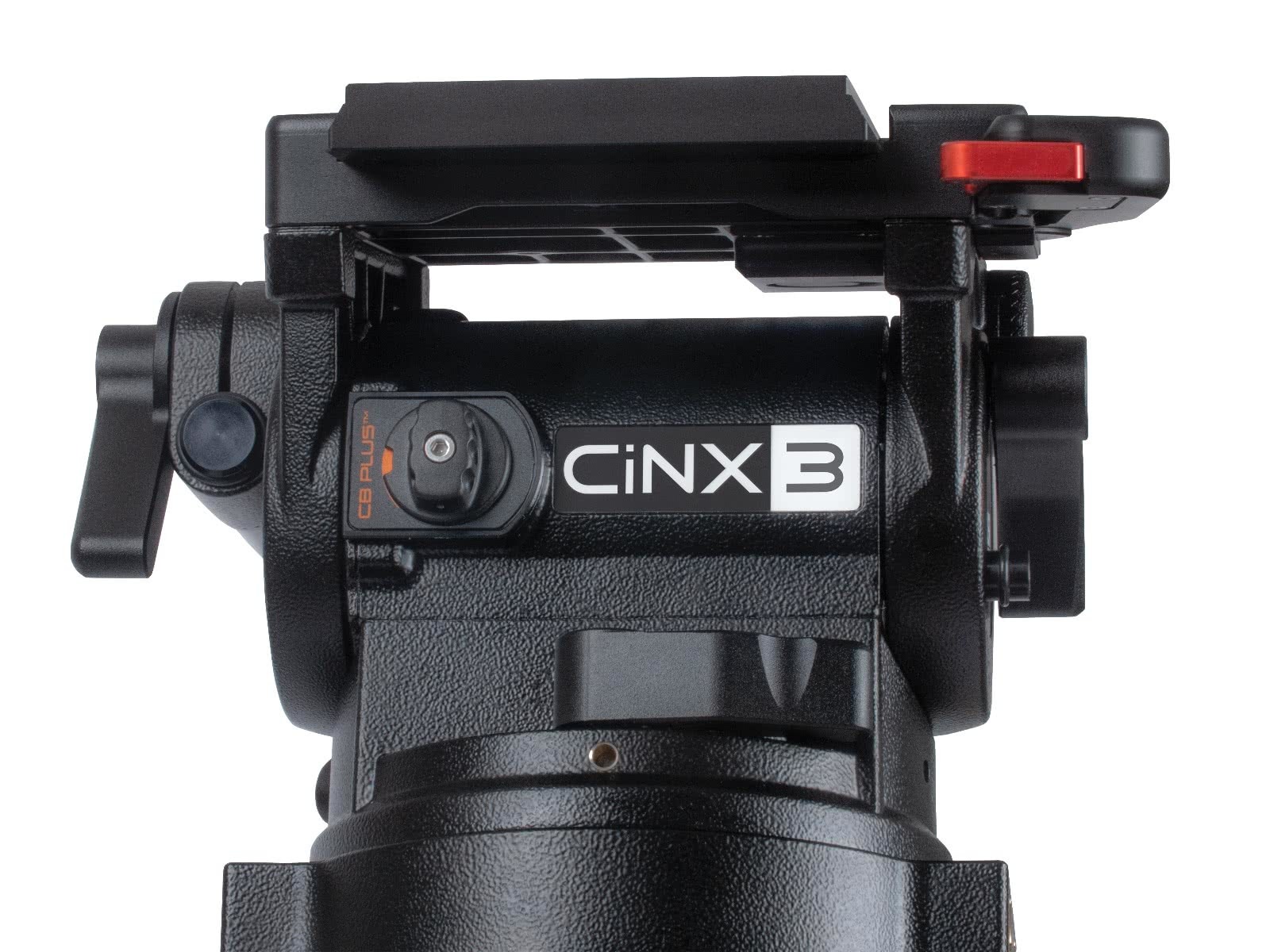

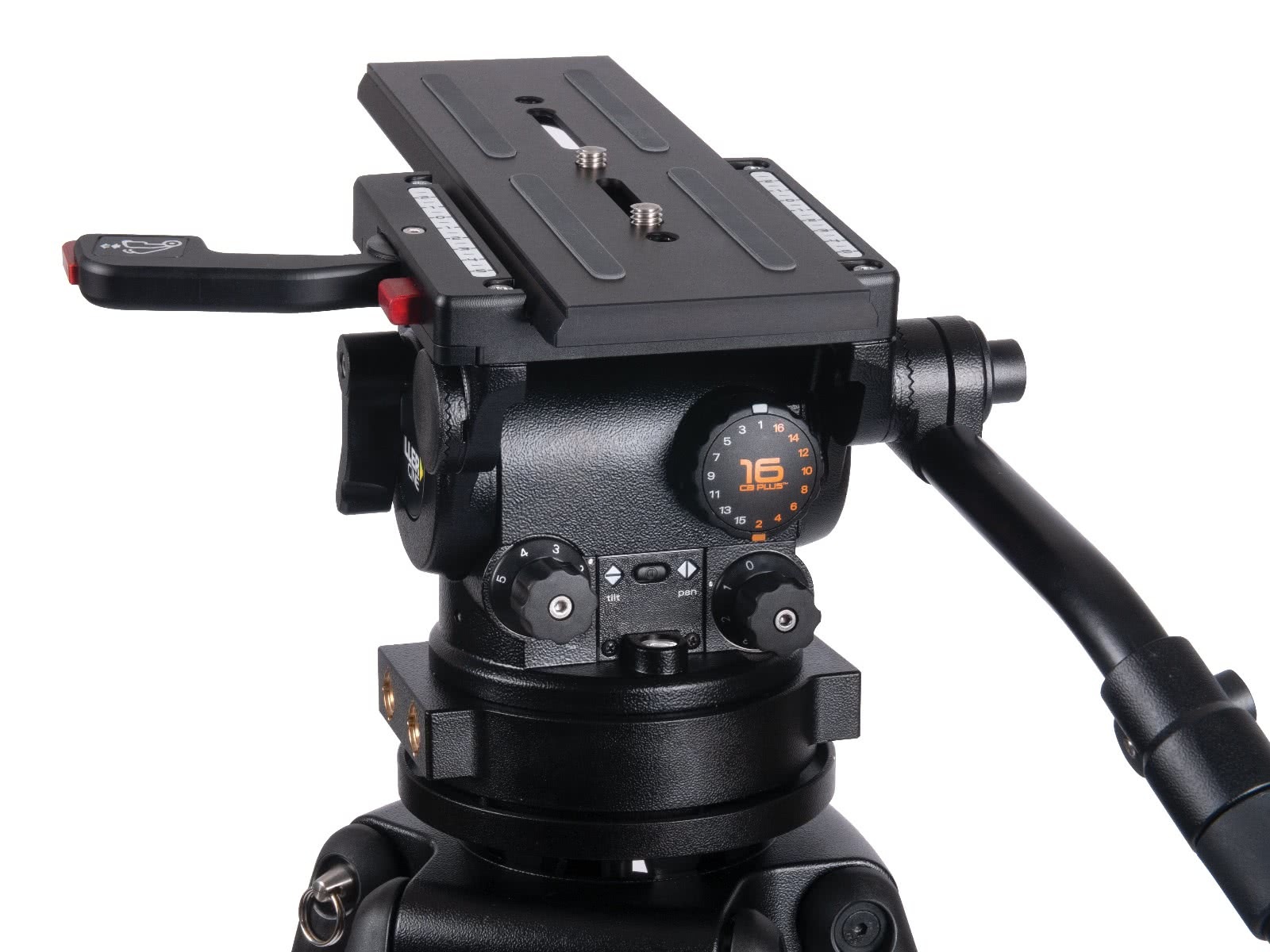

1103: CiNX 3 Fluid Head, 698: Pan Handle HD Telescopic with clamp), 2121: HDC 100mm 1-stage tripod (alloy), 993: Mid-level spreader, 3615: Smart Case (long)

Counterbalance Positions

16 selectable positions

Height Above Bowl

202mm (8.0”) MB 200mm (7.9”)

Height Range

929-1741mm (36.1-68.5")

Illuminated Controls

Bubble Level

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Quick action rotary lock

Mounting Base

Ø100mm (3.9") ball levelling

Pan Handle

Telescopic 390-590mm (15.4-23.2")

Pan Range

360°

Pan Tilt Drag

5 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

1-19kg (2.2-41.8lbs)

Sliding Range

150mm (5.9")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

1138mm (44.8")

Weight

13.0kg (28.6lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041002549
