CAT: 3768

CX10 Solo-Q 100 3 Stage Carbon Fibre

Compare

Affordable, Stable, Robust.
100mm ball levelling.
Perfect for payloads to 0-12kg (26.4lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
3-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
Lightweight carbon fibre legs.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

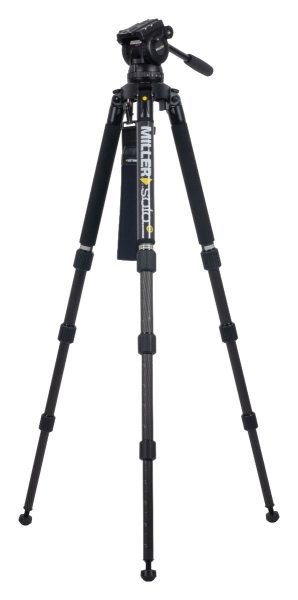

The 3768 CX10 Solo-Q 100 3-stage (carbon fibre) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

CX10 employs CB Plus™ technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

The CX10 Solo-Q 100 3 stage (carbon fibre) tripod results in range topping height range of 381-2033mm (15-80″), all terrain versatility in the lightest CX10 system package.

Specifications - CX10 Solo-Q 100 3 Stage Carbon Fibre

Camera Platform	Quick release

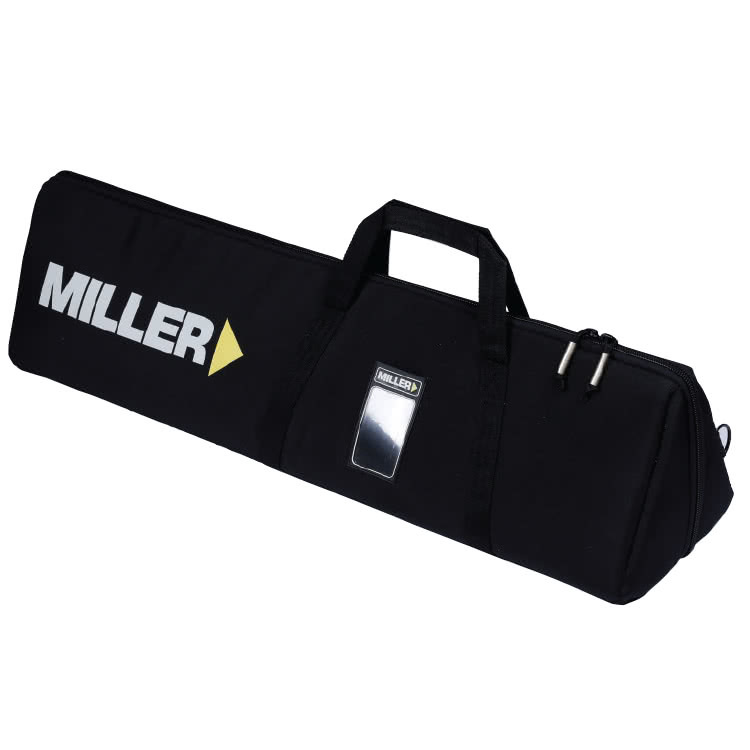

Components	1096: CX10 fluid head, 2520: Solo-Q 100 3-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q Shoulder strap (Aircell), 3514: Softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	150mm (6.0")
Height Range	381-2033mm (15-80")
Illuminated Controls	Bubble Level
Leg Extension	3-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-12kg (0-26.4lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	905mm (35.6")
Weight	6.2kg (13.7lbs)

1096 CX10 Data Sheet

(Size: 661.79 KB)

2520 Solo 100 3-Stage (Carbon Fibre) Data Sheet

(Size: 156.98 KB)

CompassX Operator Manual

(Size: 5242.35 KB)
