CAT: 3736

CX8 Toggle 2 Stage Alloy

Compare

Compact, uncompromised performance.
75mm ball levelling.
Perfect for payloads to 0-12kg (26.4lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with on ground spreader.

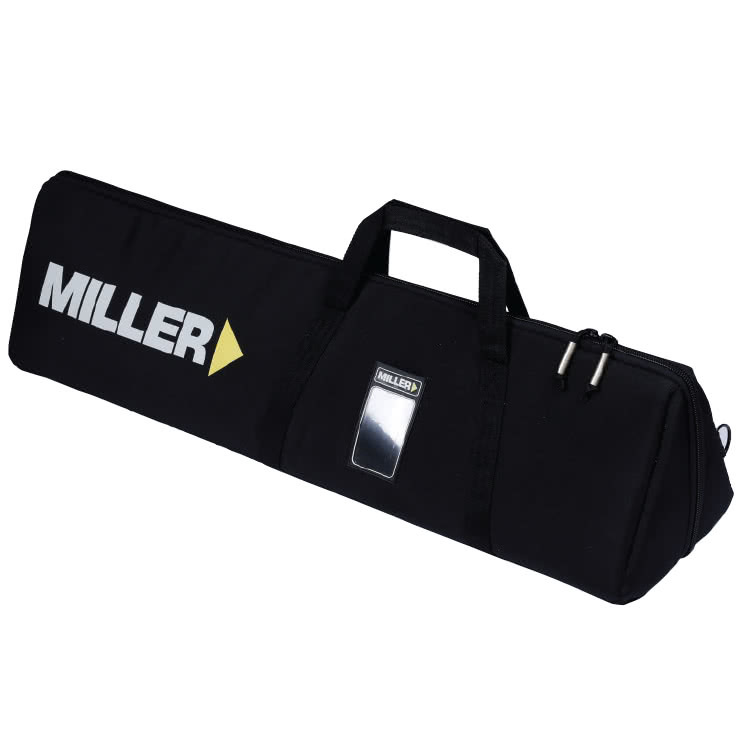

Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

1 customer had already enquired for this product.

From your nearest dealer

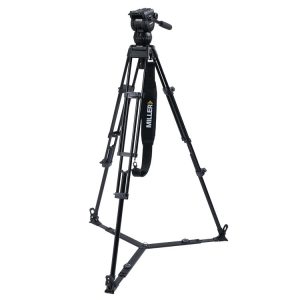

The 3736 CX8 Toggle 2 Stage Alloy tripod system combines CX8 fluid head with cost-effective yet solid 420G Toggle tripod with ground spreader. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

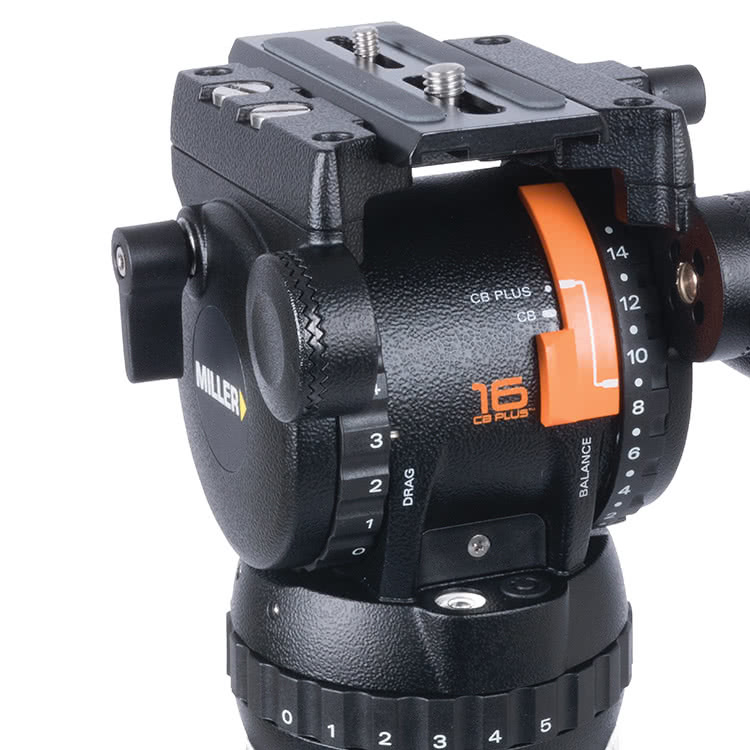

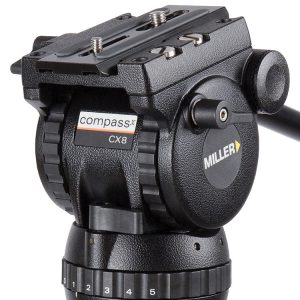

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

The CX8 Toggle 2 Stage Alloy tripod and on ground spreader to yield a large height range 570-1740mm (22.4-68.5″), offer positive toggle leg locks and the stability of a ground spreader.

Specifications - CX8 Toggle 2 Stage Alloy

Camera Platform	Quick release
Components	1093 CX8 fluid head 420G Toggle 75 2-stage tripod (alloy) 411 On ground spreader 679 Pan handle – fixed with clamp 554 Shoulder strap (padded) 3514 Softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	167mm (6.6")
Height Range	570-1740mm (22.4-68.5")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Alloy
Lock Type	Toggle
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-12kg (0-26.4lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	860mm (33.9")
Weight	6.9kg (15.2lbs)

1093 CX8 Data Sheet

(Size: 771.16 KB)

420G Toggle 75 2-Stage (Alloy) Data Sheet

(Size: 166.3 KB)

CompassX Operator Manual

(Size: 5242.35 KB)
