CAT: 3404

Skyline 90 HD 1 Stage Alloy

Compare

15 selectable fluid pan-tilt drag positions + 0.
Continuous counterbalance control knob for perfect counterbalance adjustment.
Perfect for payloads up to 75kg (165lbs) at 30 cm above central tilt axis.
Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
Mitchell base for flat mounting.
One stage alloy rotary lock leg extension for heavy duty clamping.
Heavy duty clear anodised alloy tubing.
Cast alloy brackets for rigid geometry.
Comes with off-ground spreader.

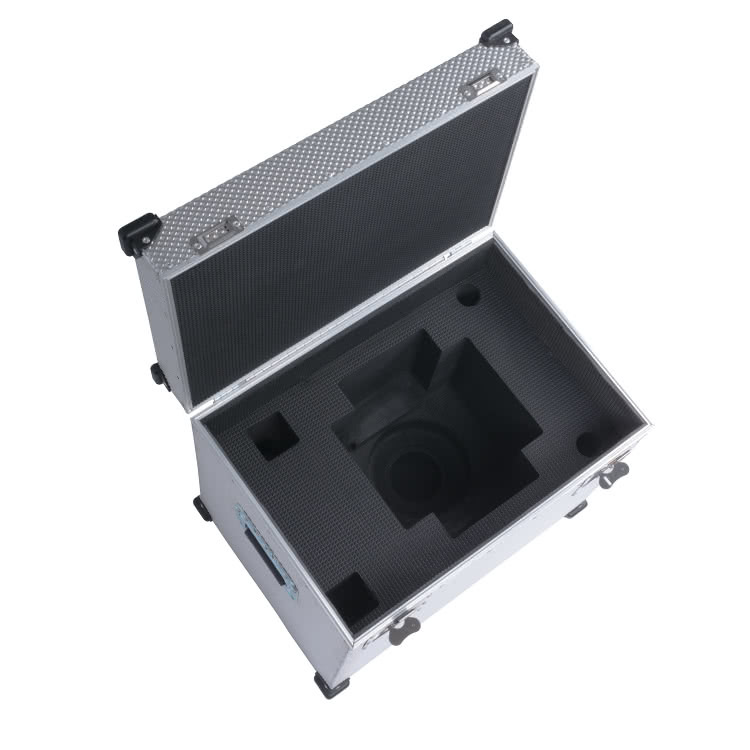

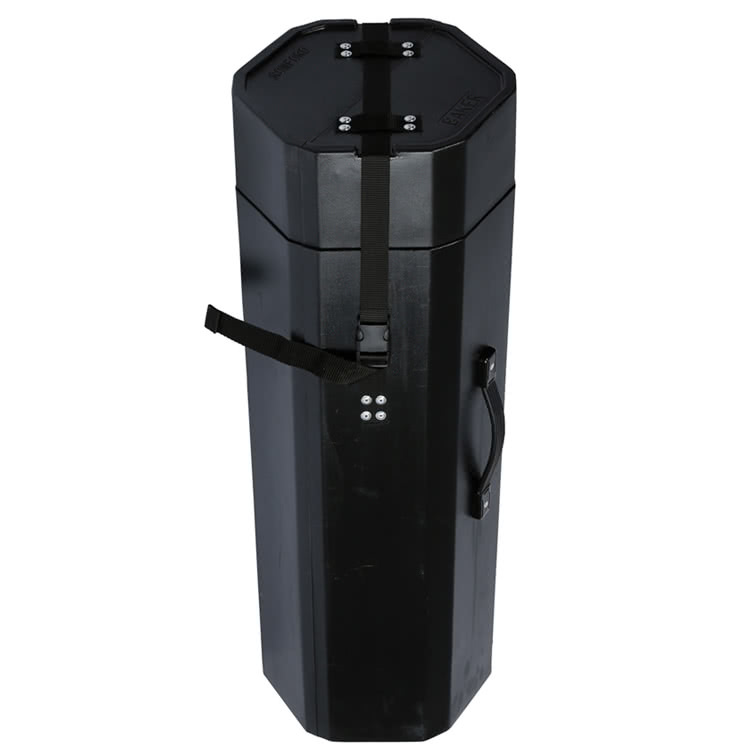

Comes with fluid head and tripod transport cases.
3 year warranty.

Make a Sales Enquiry

1 customer had already enquired for this product.

From your nearest dealer

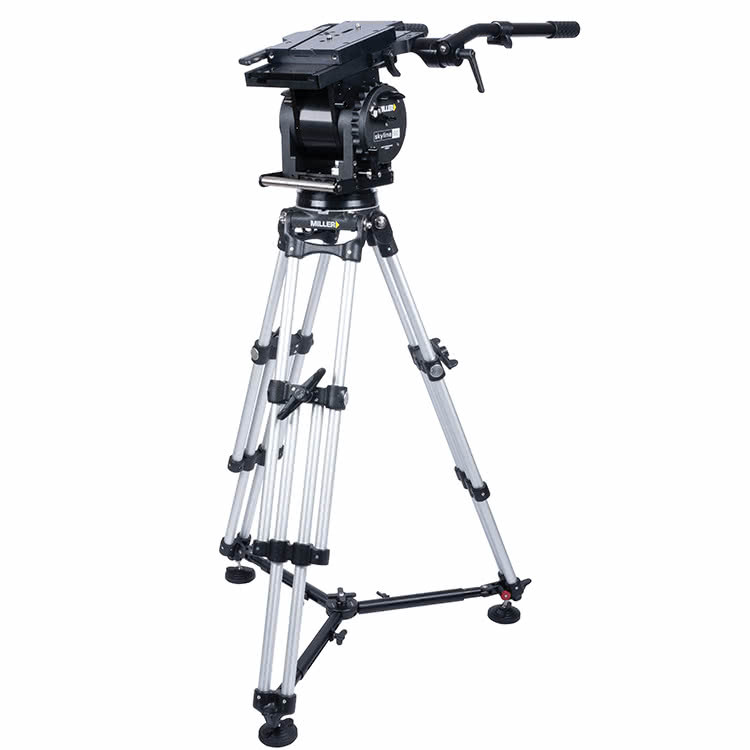

The 3404 Skyline 90 HD 1 Stage comes with a heavy duty fluid head designed to meet the challenging requirements of outside broadcast productions. Skyline 90 HD 1 Stage brings reliability, ease of setup, smooth pans, tilts, diagonals and user ergonomics form the hallmarks of this revolutionary head.

The Skyline 90 has continuous counterbalance control that ranges from zero to 165 lb. (75 kg.) at 12 in. (30 cm.) above the tilt axis and 15+0 selectable fluid pan-tilt drag positions to ensure optimum drag for any lens focal length. The sliding platform features 300mm of sliding range that glides smoothly and effortlessly with full payload. Skyline 90 also comes with an auto safety lock to ensure a secure horizontal position when loading or dismantling heavy box lenses.

The Skyline 90 HD 1 Stage system comes with all head accessories and is coupled with the HD 1-stage tripod and off-ground spreader giving ultimate stability on a variety of surfaces.

Specifications - Skyline 90 HD 1 Stage Alloy

Camera Platform	Quick release wedge plate
Components	1085: Skyline 90 fluid head, 3350: HD 1-stage alloy tripod, 3336: Wedge plate, 3342: Pan handles (2), 3346: Centre screw / nut, 3348: Head case, 3360: Above ground spreader, 3366: HD feet, 3380: Hexagonal tripod case
Counterbalance Positions	Continuous adjustment (0 – 100%)
Height Above Bowl	332mm (13.1”)
Height Range	957-1642mm (37.7-64.7”)
Leg Extension	1-stage
Leg Material	Alloy
Lock Type	Rotary lock
Mounting Base	Mitchell base
Pan Handle	2 x HD telescopic
Pan Range	360°
Pan Tilt Drag	15 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock caliper brake system
Payload Range	0-75kg (0-165.4lbs)
Safety Lock	Quick release tilt lock pin
Sliding Range	300mm (11.8”)
Temperature Range	-40° to +65° C (-40° to +150° F)
Tilt Range	+60° / -60°
Transport Length	1162mm (45.8”)
Weight	38.4kg (84.7lbs)
