CAT: 1580

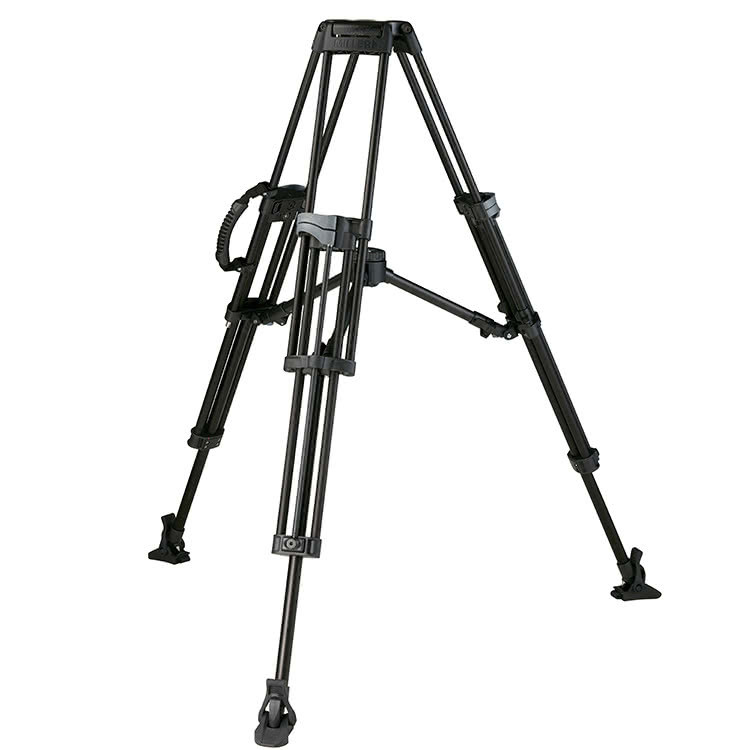

Sprinter II 2 Stage Alloy

* Tripod does not include spreader or rubber feet. Compare
  • 100mm alloy bowl.
  • High speed independent 2-stage dual leg locks.
  • Durable black anodised alloy tubing.
  • In-line carry handle.
  • Suited for mid-level spreader.
  • Integrated stainless steel spikes.
  • Stay flat rubber feet (optional).
  • Integratedtransport clips.
  • 3 year warranty.

3 customer(s) had already enquired for this product.

From your nearest dealer

The 1580 Sprinter II 2 Stage Alloy, above ground spreader tripod employs the patented Miller design that enables the leg stages to be adjusted independently via two leg locks conveniently located high above the ground thus eliminating the need for the operator to bend down.

The Sprinter II 2 Stage Alloy dual action leg lock system is designed for operators who require speed and convenience of setup without compromise. By placing independent leg lock levers adjacent to each other, both the upper and lower stages they can be operated in unison or independently from one single upper leg location.

The black anodised leg assemblies are integrated with the precision-machined 100mm die-cast alloy bowl resulting in a highly rigid tripod no matter whatheight you choose.

Specifications - Sprinter II 2 Stage Alloy

Height Range

440-1530mm (17.3-60.4")

Leg Extension

2-stage

Leg Material

Alloy

Lock Type

HS Dual Action

Maximum Payload Capacity

45kg (100lbs)

Mounting Base

Ø100mm (3.9") ball levelling

Transport Length

700mm (27.6")

Weight

3.8kg (8.3lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041000859
