CAT: 3015

AIR Toggle LW Alloy

Compare
  • Compact, lightweight, dependable.
  • Consistent fluid drag performance in extreme environments.
  • 2 selectable positions of counterbalance.
  • Perfect for camera payloads to 2-5kg (4.4-11lbs).
  • Integrated 75mm bowl.
  • 1-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with above ground spreader and rubber feet.

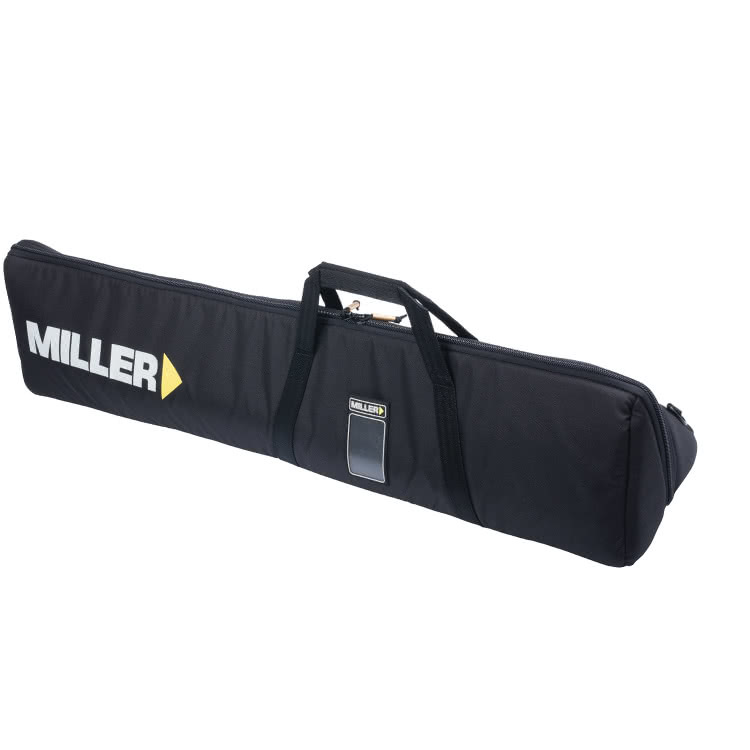

  • Comes with 1-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

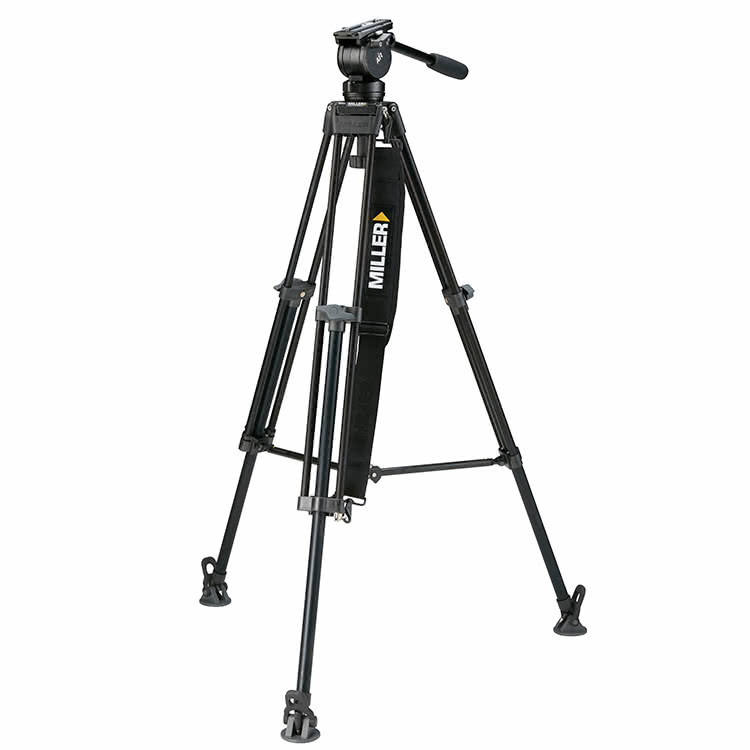

The 3015 Air Toggle LW system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AIR will always impress.

The Air fluid head is a professional, robust head used extensively by broadcasters such as the BBC, UK and ABC, Australia for news gathering. The Air head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can easily serviced.

The AIR Toggle LW tripod (alloy) with above ground spreader makes for the most traditional AIR system in the AIR range, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.



Specifications - AIR Toggle LW Alloy

Camera Platform

Sliding camera plate

Counterbalance Positions

2 selectable positions

Height Above Bowl

137mm (5.4")

Height Range

757-1467mm (29.8-57.6" )

Illuminated Controls

Bubble Level

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

Fixed

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

2.0-5.0kg (4.4-11.0lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Transport Length

967mm (38.1")

Weight

5.0kg (11.1lbs )

Components

1042: AIR fluid head, 440: Toggle 75 LW tripod (alloy), 682: Pan handle – fixed with clamp, 835: DS tripod spreader, 550: Rubber feet (set of 3), 554: Shoulder strap (padded), 3512: Softcase 1-stage

Compatible Accessories

EAN | UPC | GTIN 9354041001054
