CAT: 4170

System Versa 4170 CXV14 SII 2-STG (Carbon Fibre) with Mid-Level Spreader, Feet an Bag

Compare
  • Compact, lightweight and versatile.
  • 100mm bowl levelling.
  • Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • High speed independent 2-stage dual leg locks.
  • Lightweight carbon fibre tubing.
  • Comes with Mid-level ground spreader and rubber feet.
  • With 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

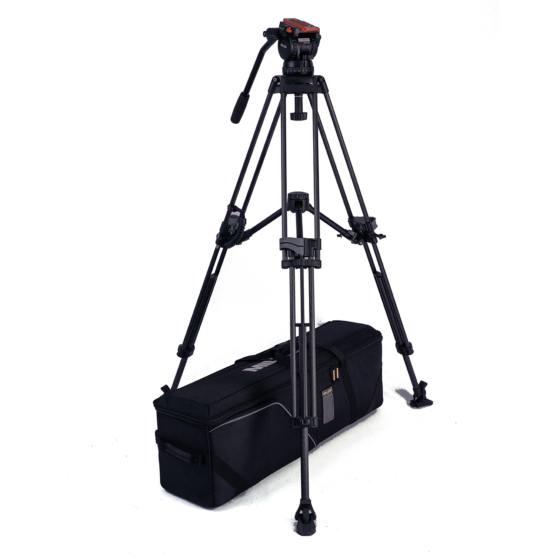

The Versa 4170 CXV14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and Versa CXV14 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller’s precision fluid drag system.

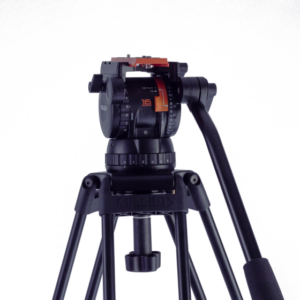

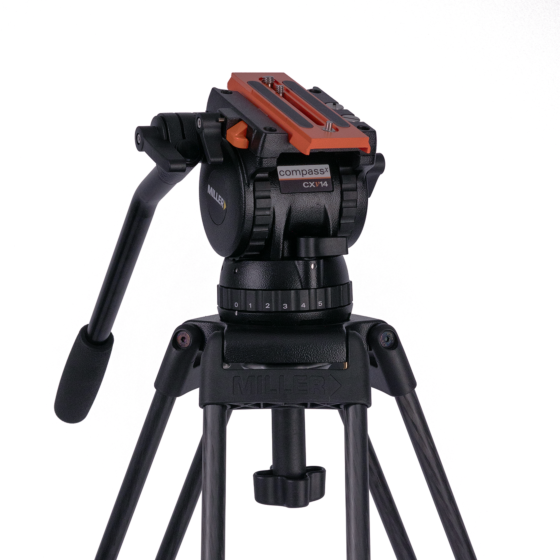

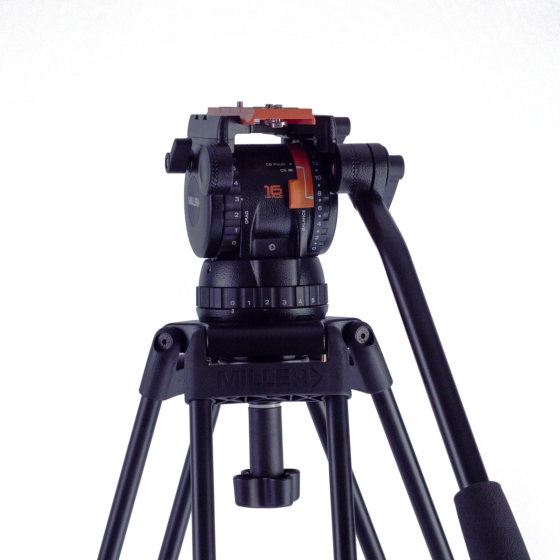

Versa CXV14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 – 30.9 lbs) and with 100mm of camera plate travel, enabling you to match your camera configuration to any shot.

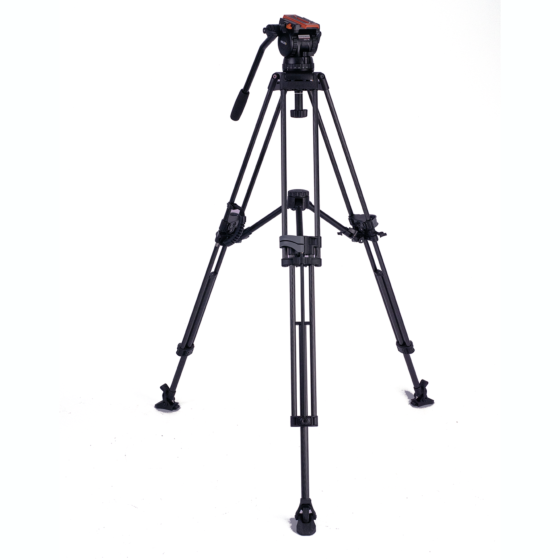

Matched with the 2-stage Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.

The Versa 4170 CXV14 Sprinter II 2-stage (carbon fibre) tripod system epitomises the perfect blend of innovation, stability, and versatility. Designed for creative professionals who demand a stable and higher capacity solution, this system excels in balancing from broadcast to DSLR cameras, thanks to its CB Plus™ technology and Miller’s precision fluid drag system.

Specifications - System Versa 4170 CXV14 SII 2-STG (Carbon Fibre) with Mid-Level Spreader, Feet an Bag

Camera Platform

Quick release

Components

1147: Versa CXV14 fluid head, 1576: Sprinter II 2-stage tripod (carbon fibre), 993: Mid-level spreader, 475: Rubber feet (set of 3), 679: Pan handle – fixed with clamp, 3502: Arrowx softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

158mm (6.2")

Height Range

603-1693mm (23.7-66.6")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Carbon fibre

Lock Type

HS Dual Action

Mounting Base

Ø100mm (3.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

5 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-14.0 kg (0-30.9 lbs)

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

853mm (33.6")

Weight

7.2kg (16.0bs)

Compatible Accessories

EAN | UPC | GTIN 9354041004079
