SkyX 8 Heavy Duty 1 Stage Alloy

Compare
  • 7 selectable of fluid pan-tilt drag positions + 0.
  • 16 selectable positions of counterbalance.
  • Perfect for payloads to 4.5-40kg (9.9-88lbs).
  • Controls “all in one location” design for fast easy and practical use.
  • 150mm alloy bowl.
  • 1-stage flip lock leg extension.
  • Durable black anodised alloy tubing.
  • Comes with mid-level spreader and rubber feet.
  • 3 year warranty.
From your nearest dealer

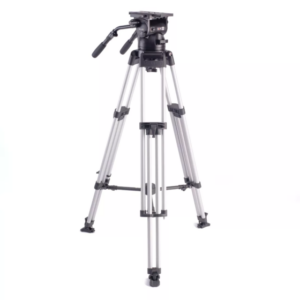

The 2072 SkyX 8 Heavy Duty 1-Stage alloy tripod system, with Mid level spreader, consists of Miller’s innovative 150mm fluid head and robust HD tripod, features include advanced precision drag and counterbalance systems controlled through a rear mounted illuminated ‘all in one location’ operating layout.

Together with the strength and torsional rigidity of alloy HD tripod make the SkyX 8 system the most desirable system for professional Sports, Studio, EFP and Outside Broadcast production crews.

With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 16 counterbalance settings plus 120mm camera plate balance travel.

The SkyX 8 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations.

The 2072 SkyX 8 Heavy Duty is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.

Specifications - SkyX 8 Heavy Duty 1 Stage Alloy

Camera Platform

Quick release camera plate large (Euro)

Components

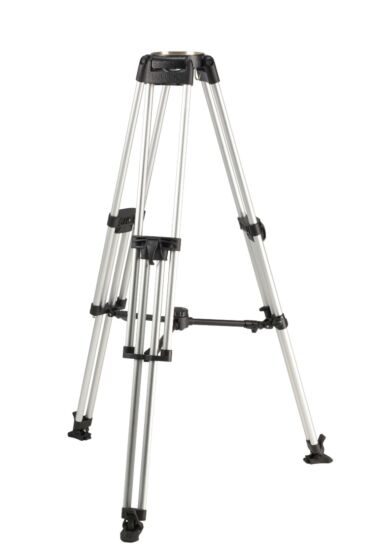

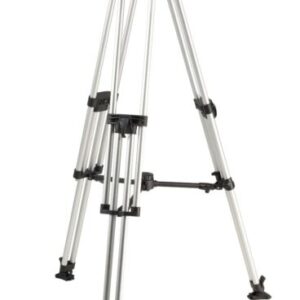

1052: SkyX 8 fluid head, 943: HD 150 1-stage tripod (alloy), 993: Mid-level spreader, 475: Rubber feet (set of 3), 698: 2 x Pan handle HD – telescopic with clamp

Counterbalance Positions

16 selectable positions

Height Above Bowl

191mm (7.5")

Height Range

990-1780mm (39-70.1")

Illuminated Controls

Bubble Level

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Flip lock

Mounting Base

Ø150mm (5.9") ball levelling

Pan Handle

2 x HD Telescopic 430-630mm (16.9-24.8")

Pan Range

360°

Pan Tilt Drag

7 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

4.5-40kg (9.9-88lbs)

Safety Lock

Quick release tilt lock pin

Sliding Range

120mm (4.7)

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

1130mm (44.5")

Weight

13.1kg (29.1lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041004093
