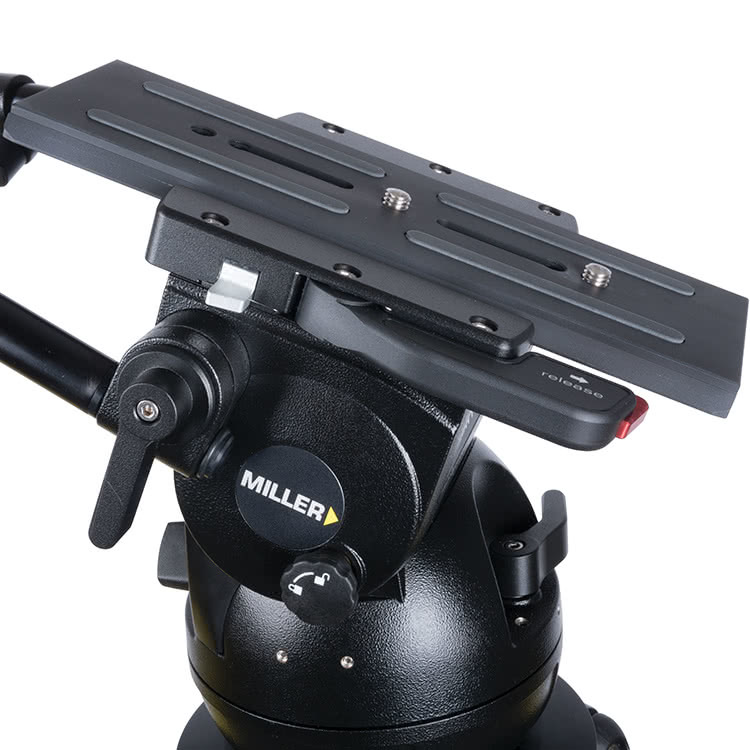

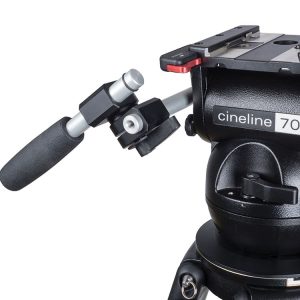

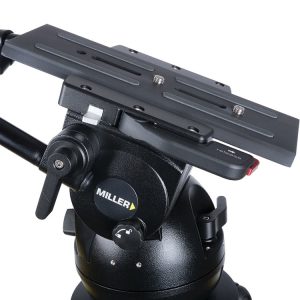

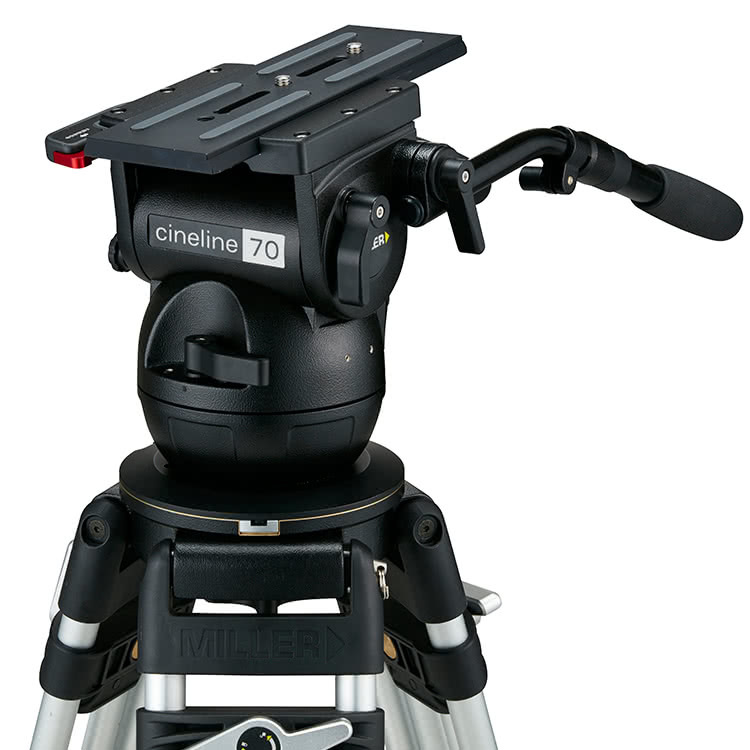

Designed for cinematic productions, Cineline 70 brings a new dimension to professional camera support.

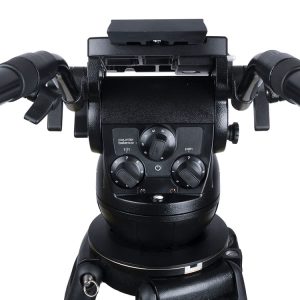

Incorporating advanced precision fluid drag and counterbalance systems operated through rear mounted “all in one location” with unique illumination of all controls and bubble level, the Cineline 70 makes it even faster and easier than ever before to set up and capture the action.
With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 8 counterbalance settings plus 150mm camera plate balance travel, the Cineline 70 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations.
It is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.
Constructed of lightweight high-strength die-cast alloy and rigid composite polymers and featuring precision ball bearing supported pan and tilt movements, Cineline 70 is extremely durable and robust delivering silky smooth pan-tilt fluid actions to match camera payloads up to 37.5kg (82.5Ibs).
Cineline 70 meets the demands of professional storytellers and comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.
CAT# – 1055
Side loading quick release camera plate (Arri)
8 selectable positions
189mm (7.4")
Bubble Level
Ø150mm (5.9") ball levelling with 3 x M5 holes for flat base mounting
2 x HD Telescopic 430-630mm (16.9-24.8")
360°
7 selectable fluid drag positions + 0
Positive lock calliper brake system
4.5-37.5kg (9.9-82.5lbs)
Quick release tilt lock pin
150mm (5.9")
-40° to +65°C (-40° to +149°F)
+ 90°/ -75°
5.8kg (12.7lbs)
CAT: 1223
CAT: 698
CAT: 1234
CAT: 1230
CAT: 1065
CAT: 1240
EAN | UPC | GTIN 9354041000545
