CAT: 2090

Cineline 70 HD MB 1 Stage Alloy

Compare
  • 7 selectable of fluid pan-tilt drag positions + 0.
  • 8 selectable positions of counterbalance.
  • Perfect for payloads to 4.5-37.5kg (9.9-82.5lbs).
  • Controls “all in one location” design for fast easy and practical use.
  • Heavy duty billet levers.
  • Side loading Arri style camera plate.
  • Mitchell base.
  • 1-stage rotary lock leg extension.
  • Durable clear anodised alloy tubing.
  • Comes with HD ground spreader.
  • 3 year warranty.
From your nearest dealer

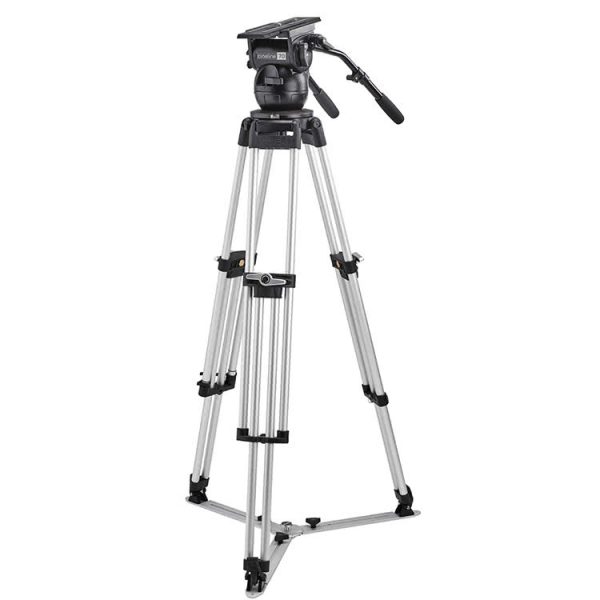

The 2090 Cineline 70 HD MB 1-Stage (alloy) system is designed specifically for the cine market, rich with features requested by industry leading cinematographers and comes at a very affordable price.

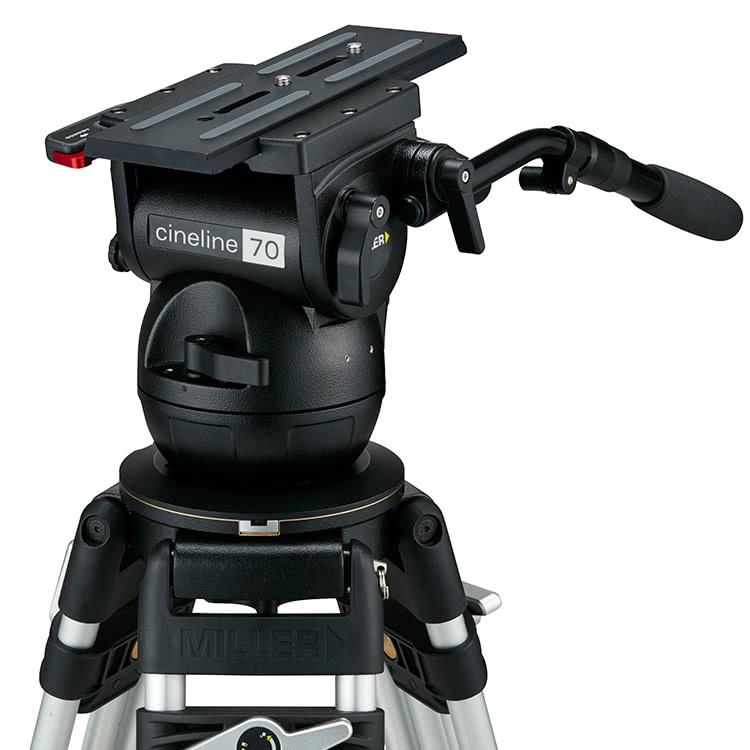

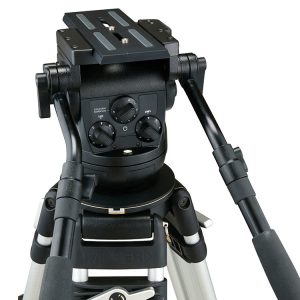

The Cineline 70 fluid head brings a new dimension to professional camera support. Incorporating advanced precision fluid drag and counterbalance systems operated through rear mounted “all in one location” with unique illumination of all controls and bubble level, the Cineline 70 makes it even faster and easier than ever before to set up and capture the action.

With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 8 counterbalance settings plus 150mm camera plate balance travel, the Cineline 70 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations. It is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.

The HD MB 1-Stage tripod comes standard with Mitchel base to give universal flat base mounting, solid billet rotary screw type locks, heavy duty alloy tubes and matched to the HD on-ground spreader. These features combine to create Miller’s most robust Cine system in the range.

Test the 2090 Cineline system and you will be surprised at the results you can get for the price you pay

Specifications - Cineline 70 HD MB 1 Stage Alloy

Camera Platform

Side loading quick release camera plate (Arri)

Counterbalance Positions

8 selectable positions

Height Above Bowl

189mm (7.4")

Height Range

737-1549mm (29.0 – 61.0")

Illuminated Controls

Bubble Level

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Quick action rotary screw

Mounting Base

Ø150mm (5.9") ball levelling with 3 x M5 holes for flat base mounting

Pan Handle

2 x HD Telescopic 430-630mm (16.9-24.8")

Pan Range

360°

Pan Tilt Drag

7 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

4.5-37.5kg (9.9-82.5lbs)

Safety Lock

Quick release tilt lock pin

Sliding Range

150mm (5.9")

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Transport Length

1178mm (46.4")

Weight

15.8kg (35.1lbs)

Components

1055: Cineline 70 fluid head, 2110G: HD MB 1-stage tripod (alloy), 1225: Mitchell base adaptor with clamp, 2130: HD ground spreader, 698: 2 x Pan handle HD – telescopic with clamp

Compatible Accessories

EAN | UPC | GTIN 9354041000996
