CAT: 1105

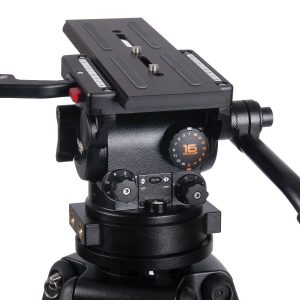

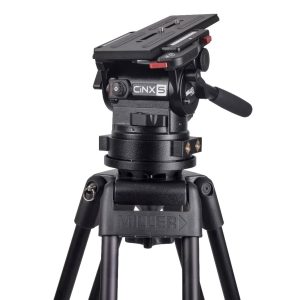

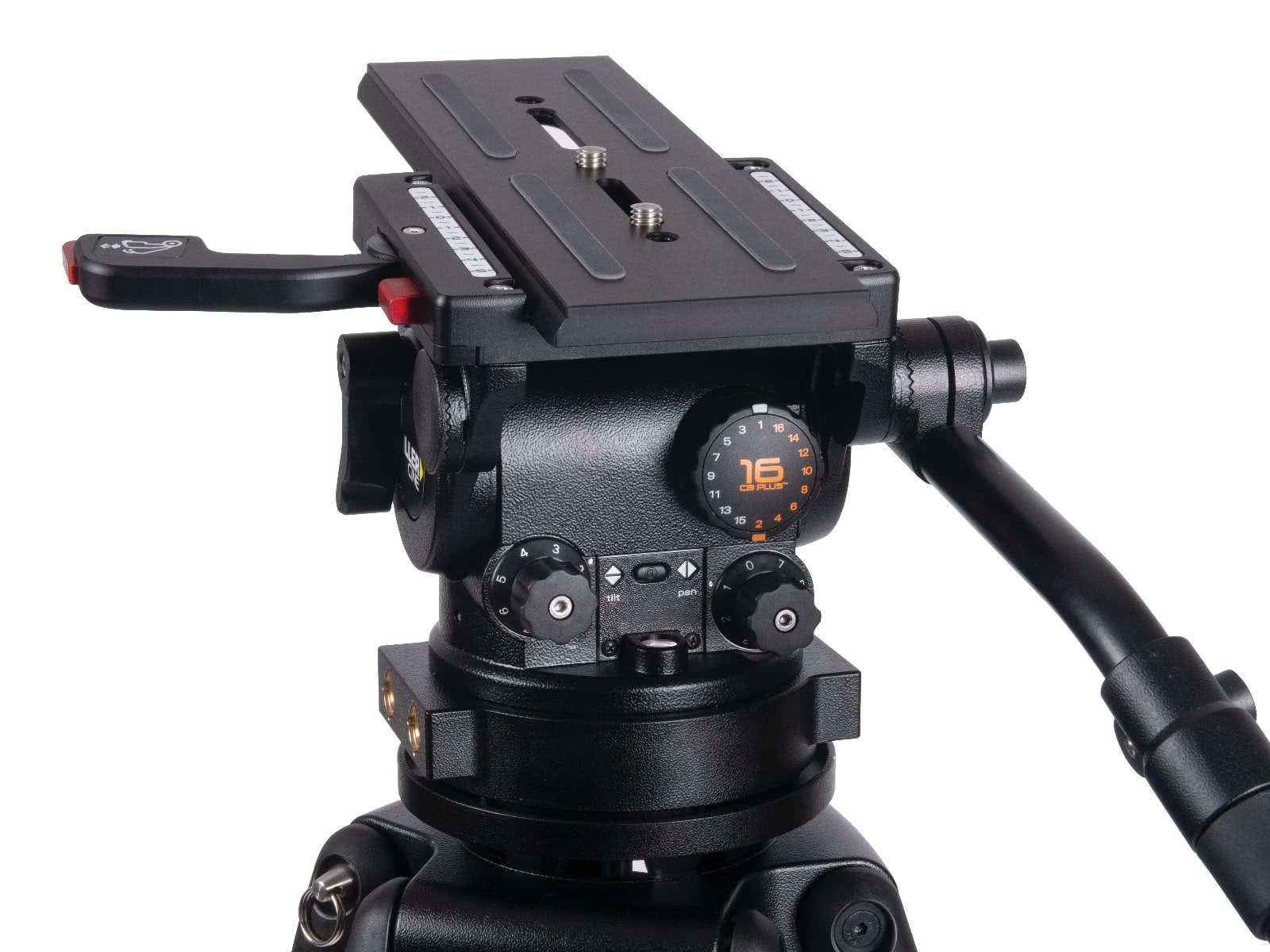

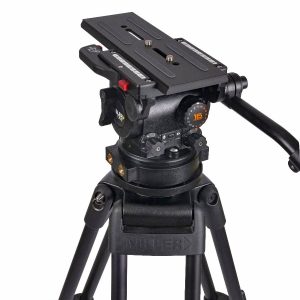

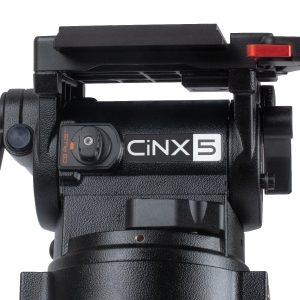

CiNX 5 Fluid Head

Perfect for lighter rigs, requiring more positions of pan, and tilt drag Compare

Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
16 positions of counterbalance.
Payload range from 2kg (4.4lbs) up to 21kg (46.2lbs).
Pan and tilt drag 7+0 positions.
Side loading camera platform, with safety lock, to suite Arri/OConnor or compatible camera plates.
150mm camera plate sliding range.
Multiple mounting bases: CiNX is adaptable to a Mitchel base plate, 100mm or 150mm ball levelling (supplied with 100mm ball levelling).
4 Arri type accessory mounting points.
Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Removable ball level stud allows for flat base mounting with 3/8” screw thread.
Optional second pan handle mount.
3 years warranty.

Make a Sales Enquiry

From your nearest dealer

The CiNX 5 Fluid head with a payload range from 2kg (4.4lb) up to 21 kg (46.2lb) and pan and tilt drag of 7+0 positions.

CiNX 5 is a lightweight and durable fluid head packed with features designed to meet all the needs of cinematographers at an affordable price. The wide payload range of Miller’s new CiNX 5 Fluid Head enables accurate counterbalance of multiple camera sizes, lenses and accessories – increasing the flexibility of use.

A key feature of the CiNX series is Miller’s patented 16 CB Plus™ technology—a unique sequential counterbalance design resulting in accurate and rapid setup. With 16 positions of counterbalance, the new series provides very fine, repeatable balance, which is ideal for cinematographers requiring frequent and fast re-rigging.

The side load platform enables rapid deployment of countless sizes of camera rigs as well as extended camera plate range of movement for balancing front heavy setups.

The new CiNX 5 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

CAT# – 1105

Specifications - CiNX 5 Fluid Head

Camera Platform	Side load quick release camera plate (Arri type)
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	202mm (8.0”)
Illuminated Controls	Bubble Level
Mounting Base	Ø100mm (3.9") ball levelling (std.) Ø150mm (5.9") ball levelling (opt.) Mitchell Base (opt.)
Pan Handle	Telescopic 390 to 590mm (15.4 to 23.2”)
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock caliper brake system
Payload Range	2-21kg (4.4-46.2lbs)
Sliding Range	150mm (5.9")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Weight	4.0kg (8.8lbs)

CiNX 5 Fluid Head Product Data Sheet

(Size: 1186.48 KB)

CiNX Fluid Head Operator Manual

(Size: 1243.98 KB)

Compatible Accessories

CAT: 1290
ø100 Claw Ball Level to suit CiNX and ArrowFX fluid heads
CAT: 3618
Miller Camera Plate Pouch To suit CiNX, SkyX, Arrow camera plates & accessories
CAT: 1296
Ø150 Claw Ball Level to suit ArtX, ArrowFX, SkyX, SFX9, CiNX fluid heads
CAT: 1225
Mitchell base Adaptor With Clamp to suit Arrowx, Skyline 70 & Cineline 70, CiNX 8 & SkyX 8 fluid heads
CAT: 1238
Serrated Handle Clamp Extender to suit Cineline 70, Skyline 70 and Arrowx fluid heads
CAT: 3602
CiNX Resin Transit Case to suit CiNX fluid head and accessories
CAT: 1230
Pan Handle Articulated With Extender to suit CiNX, SkyX, Arrowx and Compass fluid heads
CAT: 1260
Accessory Mounting Block ArrowX to suit AX & Arrow fluid heads
CAT: 1065
Camera Plate Arri Type to suit CiNX fluid heads
