CAT: 1096

CX10 Fluid Head

Affordable, stable and robust Compare
  • Affordable, Stable, Robust.
  • Perfect for payloads to 0-12kg (26.4lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • Illuminated bubble level.
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.

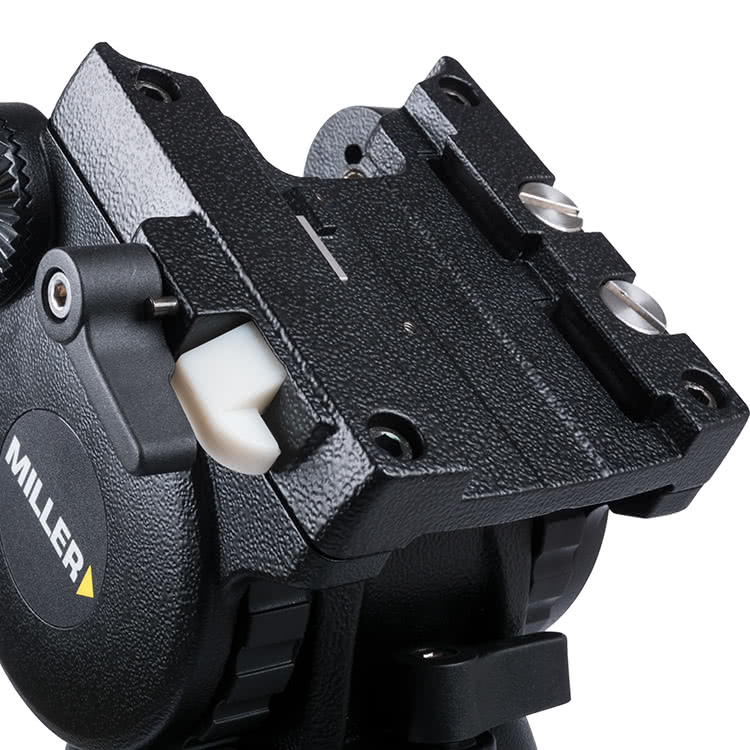

  • Side loading, 60mm balance travel camera plate with 1/4” and 3/8” screws.
  • Robust construction for rugged outdoor shooting conditions.

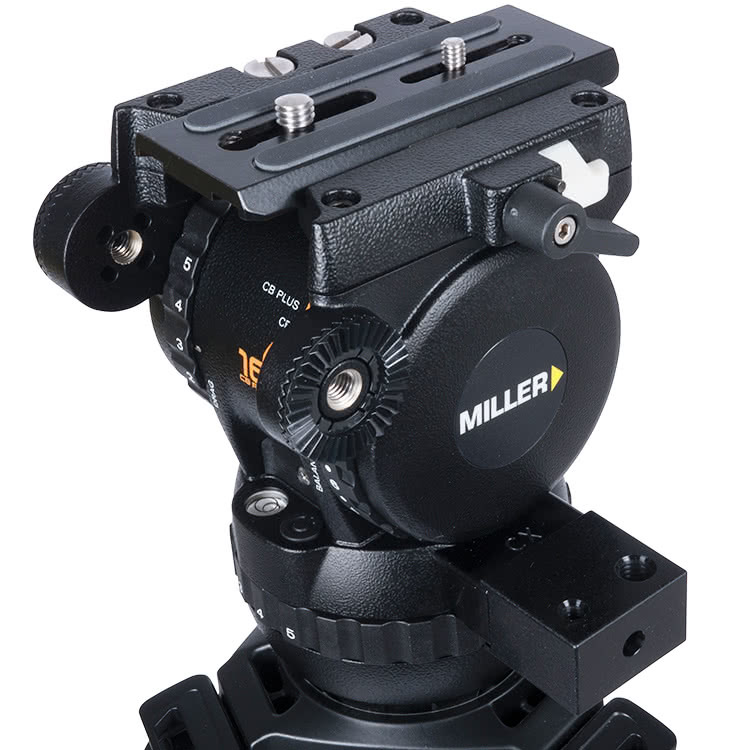

  • Side mounting point for viewfinders and accessories.
  • Optional second pan handle mount.
  • 3 year warranty.
From your nearest dealer

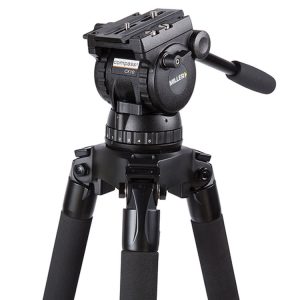

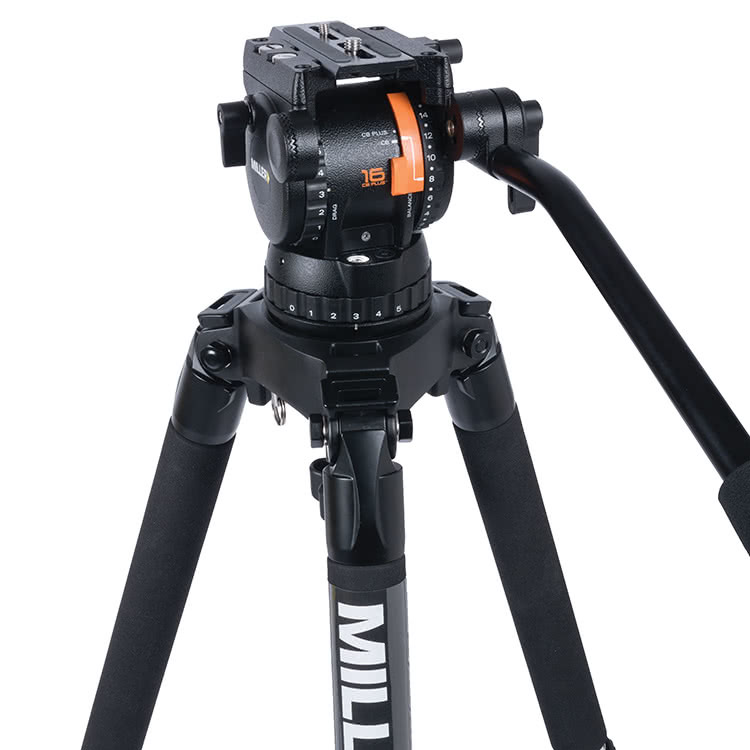

The new 1096 CX10 is a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance.

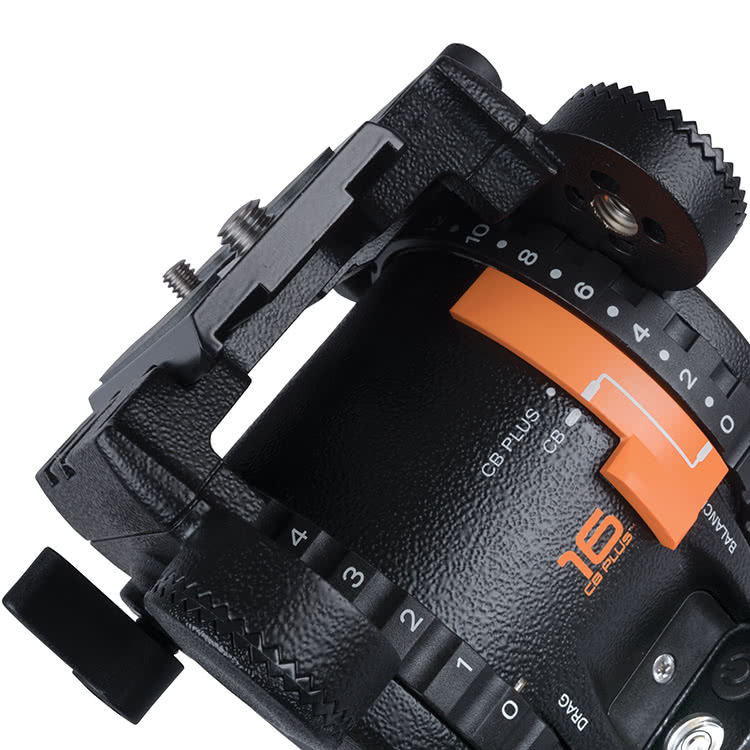

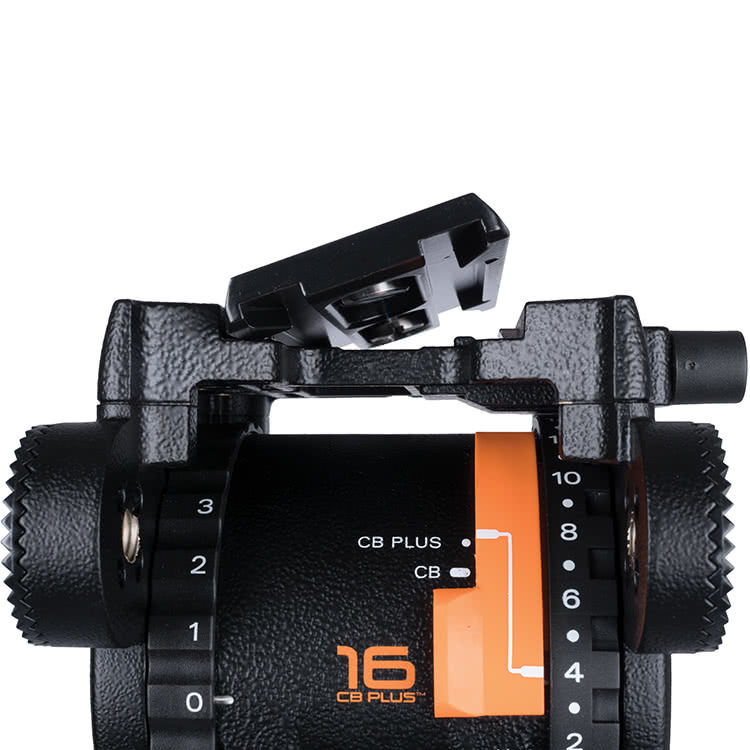

CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

Constructed of lightweight high-strength die-cast alloy and tough composite polymers and featuring precision ball bearings Miller have combined robust engineering with silk smooth pan and tilt camera movements.

Built for extreme conditions the CX10 performs consistently over a wide range of temperatures and environments giving you confidence when out on a shoot.

Affordable, stable and robust for heavier loads, CX10 makes a great choice for applications such as news gathering, documentary, wildlife and filmmaking. The CX10 meets the demands for reliability and “THE RIGHT FEEL” that are hallmarks of Miller, enabling you to tell your story.



Specifications - CX10 Fluid Head

Camera Platform

Quick release

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

150mm (6.0")

Illuminated Controls

Bubble Level

Mounting Base

Ø100mm (3.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

5 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

0-12.0kg (0-26.4lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Weight

2.5kg (5.5lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041000644
