CAT: 3712

CX2 Solo-Q 75 2 Stage Carbon Fibre

Compare

Compact, light and versatile.
75mm ball levelling.
Perfect for payloads to 0-8kg (17.6lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
3+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
Lightweight carbon fibre legs.

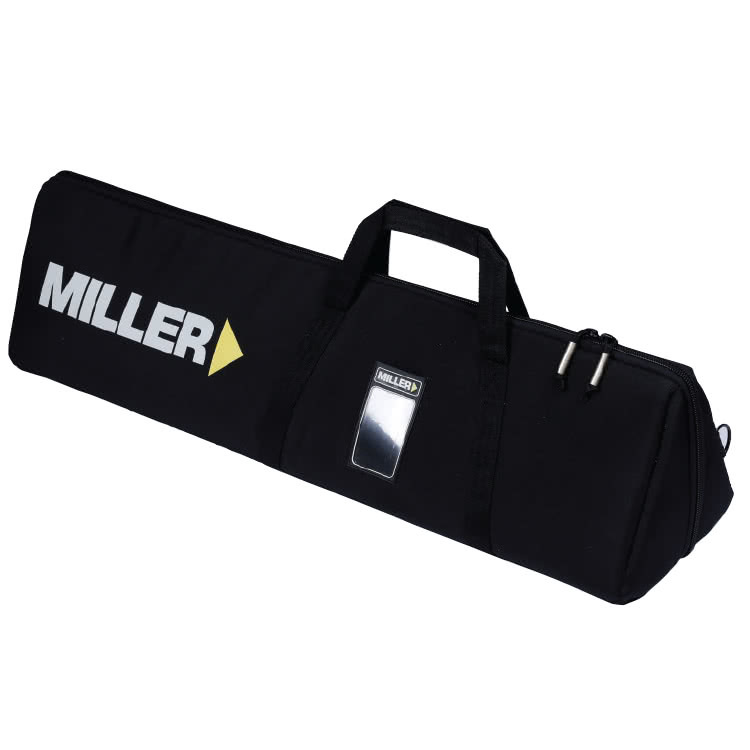

Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

1 customer had already enquired for this product.

From your nearest dealer

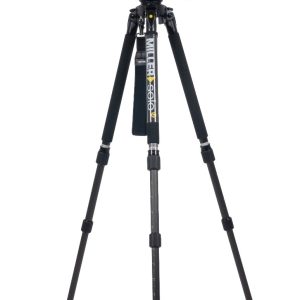

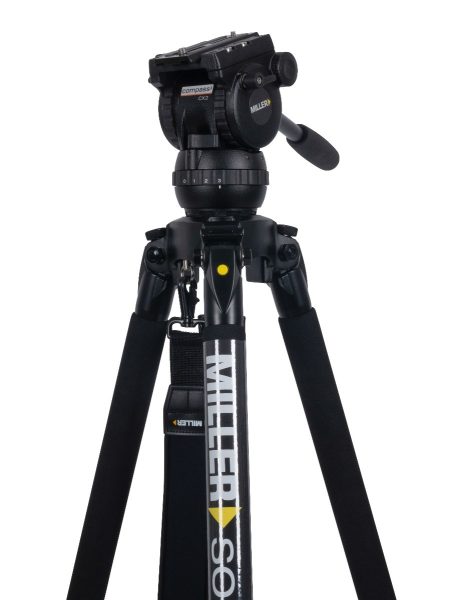

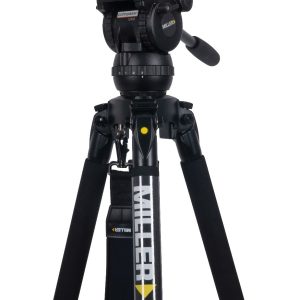

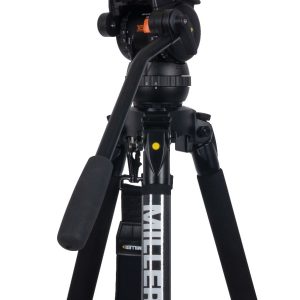

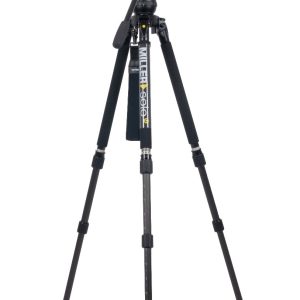

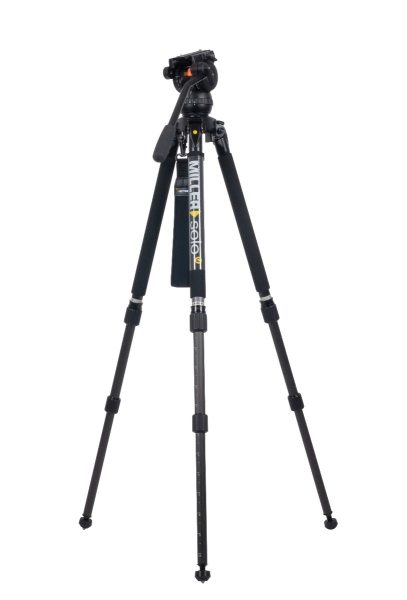

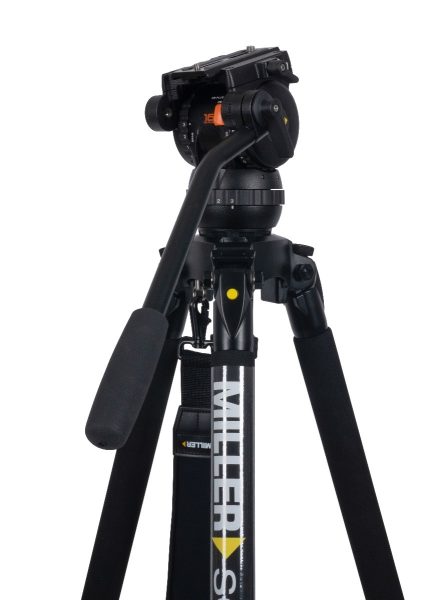

The 3712 CX2 Solo-Q 75 2 Stage (carbon fibre) system consists of the CX2 fluid head and the ultra-light yet rigid 2500 Solo-Q 75 2-Stage Carbon Fibre Tripod. The system is designed to suit payload capacities from 0 to 8kg. Featuring concentric self-adjusting leg locks, Q Lock and light high strength telescopic tubing.

The CX2 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The CX2 Solo-Q 75 2 Stage (carbon fibre) tripod results in a working height range of 412-1800mm (16.2-70.8”), offering rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.

Specifications - CX2 Solo-Q 75 2 Stage Carbon Fibre

Camera Platform	Quick release
Components	1090: CX2 fluid head, 2500: Solo-Q 75 2-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3514: Softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	167mm (6.6")
Height Range	412-1800mm (16.2-70.8”)
Illuminated Controls	Bubble Level
Leg Extension	2-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	3 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-8kg (0-17.6lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	864mm (34”)
Weight	5.5kg (12.2lbs)

1090 CX2 Data Sheet

(Size: 721.48 KB)

2500 Solo-Q 75 2-Stage (Carbon Fibre) Data Sheet

(Size: 167.82 KB)

CompassX Operator Manual

(Size: 5242.35 KB)
