CAT: 3714

CX2 Solo-Q 75 3 Stage Carbon Fibre

Compare
  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 3-stage rapid leg lock extension.
  • Q-Lock for rapid set-up and stowage.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

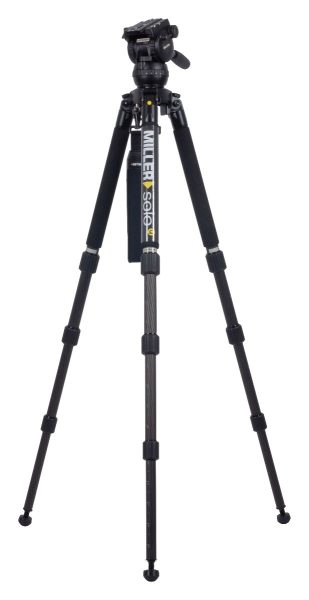

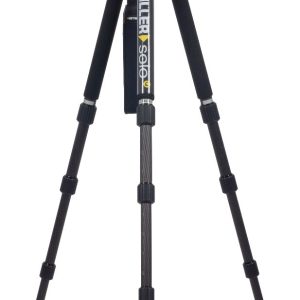

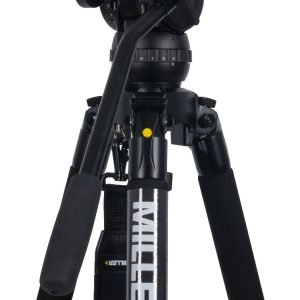

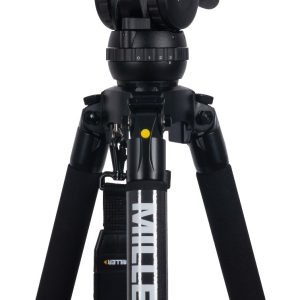

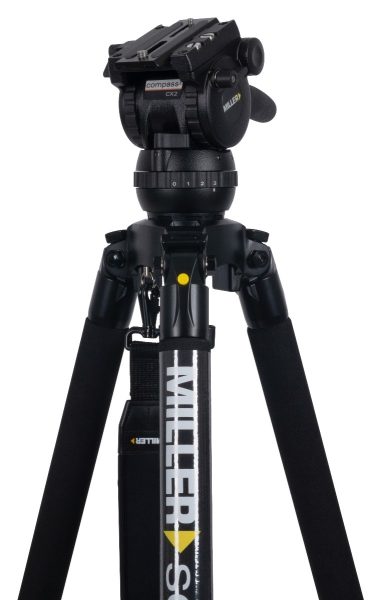

The 3714 CX2, Solo-Q 75 3-stage (carbon fibre) system consists of the CX2 fluid head and the ultra-light, super rigid Solo-Q 75 3-stage Carbon Fibre Tripod designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

The CX2 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 settings of Millers unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The CX2 Solo-Q 75 3 Stage (carbon fibre) tripod results in a range topping height range of 398-2049mm (15.71-80.68″), rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.

Specifications - CX2 Solo-Q 75 3 Stage Carbon Fibre

Camera Platform

Quick release

Components

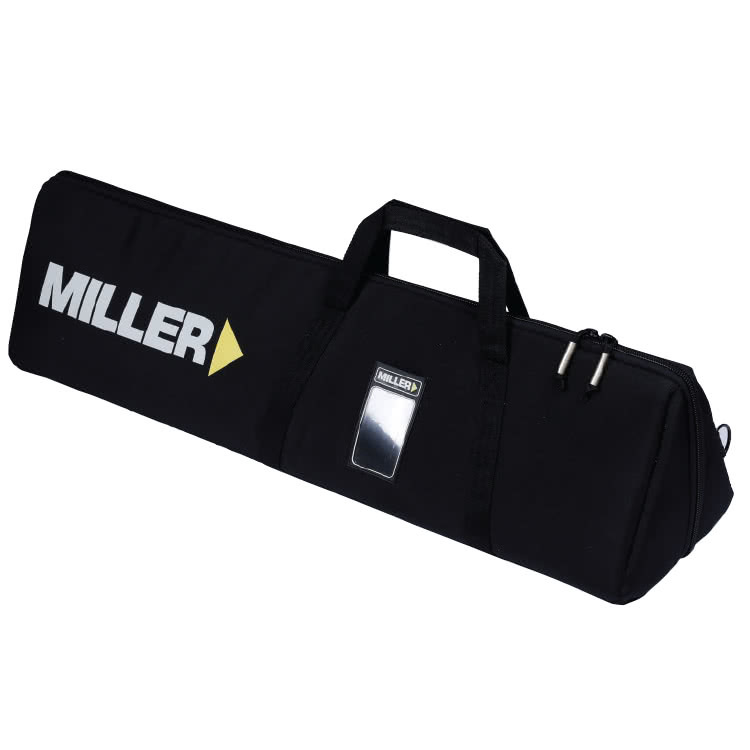

1090: CX2 fluid head, 2505: Solo-Q 75 3-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3514: Softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

167mm (6.6")

Height Range

398-2049mm (15.7-80.7")

Illuminated Controls

Bubble Level

Leg Extension

3-stage telescopic

Leg Material

Carbon fibre

Lock Type

Concentric Rapid Lock & Q-Lock

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

0-8kg (0-17.6lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Transport Length

832mm (32.8")

Weight

6.0kg (13.2lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041001580
