CAT: 3728

CX6 Solo-Q 75 2 Stage Carbon Fibre

Compare
  • Powerful, light and multifunctional.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage rapid leg lock extension.
  • Q-Lock for rapid set-up and stowage.
  • Lightweight carbon fibre legs.

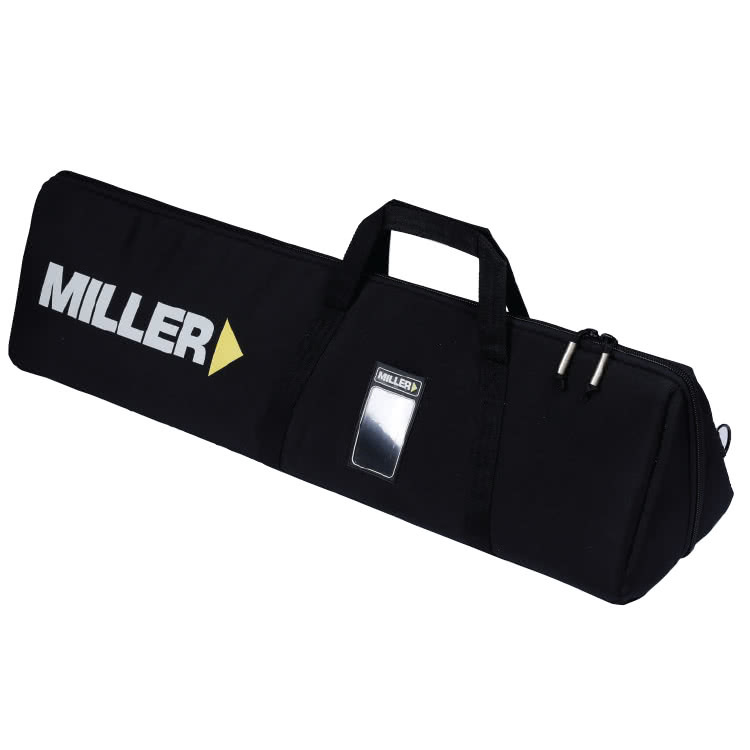

  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

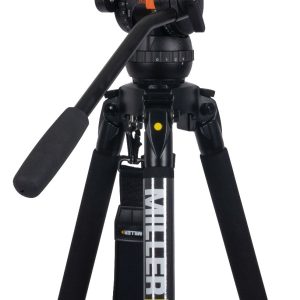

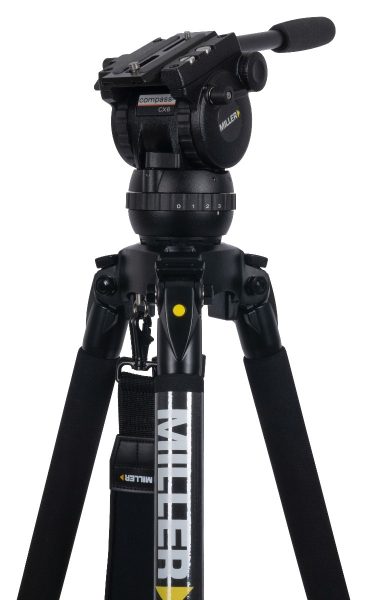

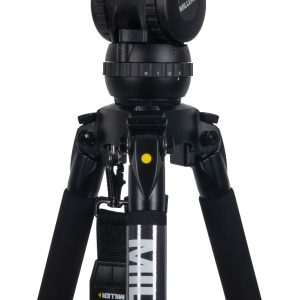

The 3728 CX6 Solo-Q 75 2-stage (carbon fibre) light weight tripod system combines the innovative lightweight 2500 Solo-Q tripod and CX6 fluid head. Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

The CX6 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

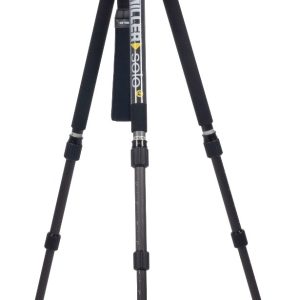

The CX6 Solo-Q 75 2 (carbon fibre) tripod results in a working height range of 412-1800mm (16.2-70.8”), and offer rapid action twist locks, versatility of Q-Lock and Solo-Q’s leg angles with the added benefit of carbon fibre construction.

Specifications - CX6 Solo-Q 75 2 Stage Carbon Fibre

Camera Platform

Quick release

Components

1092: CX6 fluid head, 2500: Solo-Q 75 2-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3514: Softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

167mm (6.6")

Height Range

412-1800mm (16.2-70.8”)

Illuminated Controls

Bubble Level

Leg Extension

2-stage telescopic

Leg Material

Carbon fibre

Lock Type

Concentric Rapid Lock & Q-Lock

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

0-12.0kg (0-26.4lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Transport Length

864mm (34”)

Weight

5.5kg (12.2lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041001627
