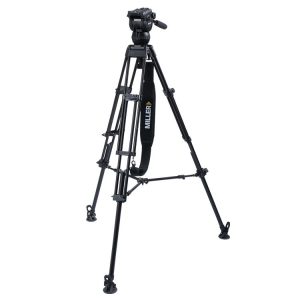

CX6 Toggle 2 Stage Alloy with AG Spreader

CAT: 3721

CX6 Toggle 2 Stage Alloy with AG Spreader

Compare

Powerful, light and multifunctional.
75mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
3+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with above ground spreader and rubber feet.

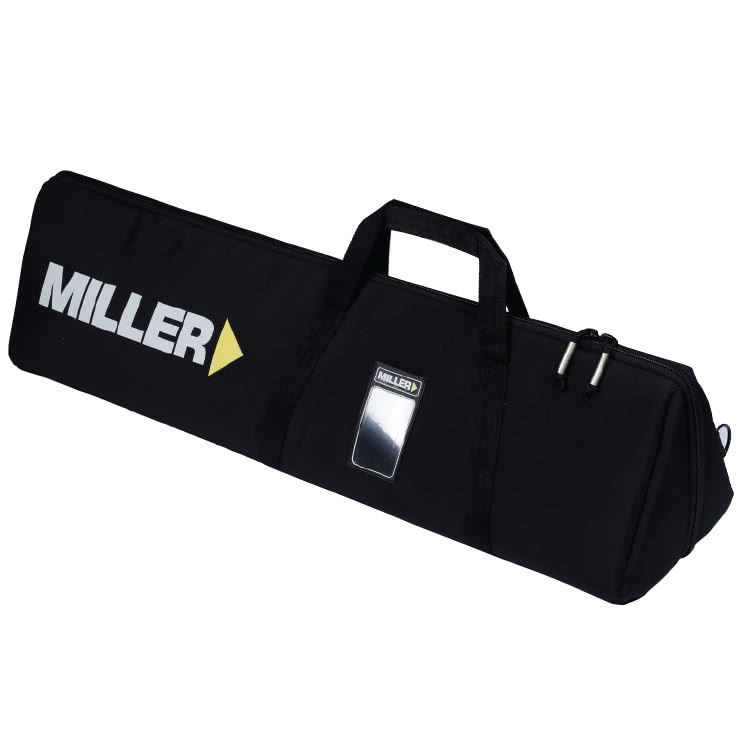

Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

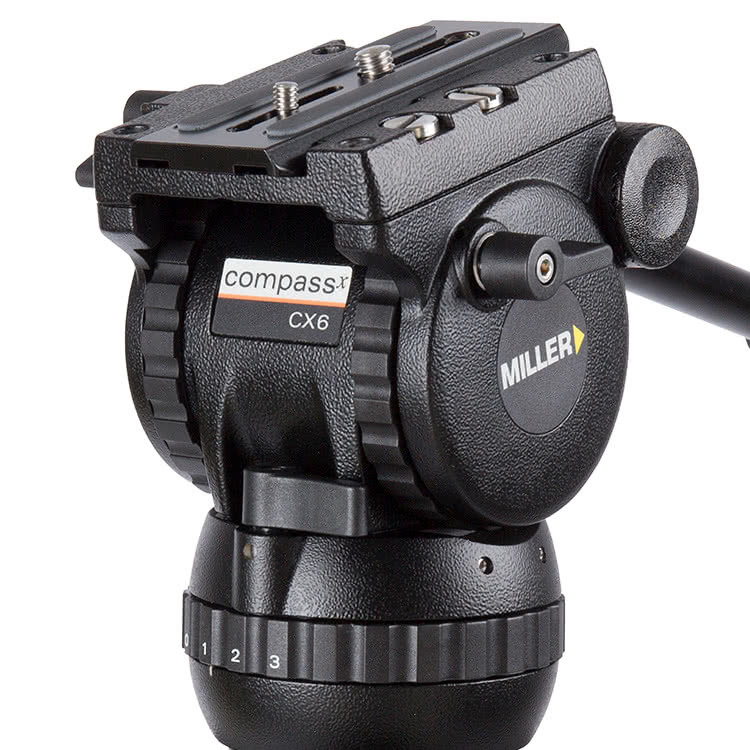

The 3721 CX6 Toggle 2 Stage Alloy with AG Spreader combines with CX6 fluid head and cost-effective yet extremely stable 420 Toggle tripod with above ground spreader. Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

The CX6 employs CB Plus^TM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

The CX6 Toggle 2 Stage Alloy with AG Spreader to yield a large height range 560-1730mm (22-68″), offer positive leg toggle locks and the versatility of using the system across all terrains.

Specifications - CX6 Toggle 2 Stage Alloy with AG Spreader

Camera Platform	Quick release
Components	1092: CX6 fluid head, 420: Toggle 75 2-stage tripod (alloy), 508: Above ground spreader, 550: Rubber feet (set of 3), 679: Pan handle – fixed with clamp, 554: Shoulder strap (padded), 3514: Softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	167mm (6.6")
Height Range	560-1730mm (22-68.1")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Alloy
Lock Type	Toggle
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	3 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-12kg (0-26.4lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	860mm (33.9")
Weight	6.7kg (14.8lbs)

1092 CX6 Data Sheet

(Size: 463.94 KB)

420 Toggle 75 2-Stage (Alloy) Data Sheet

(Size: 157.71 KB)

CompassX Operator Manual

(Size: 5242.35 KB)
