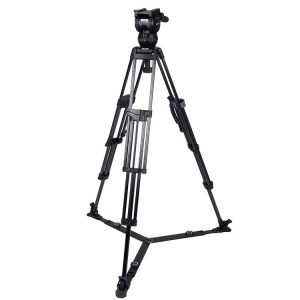

The 3748 CX8 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620G 75 Sprinter II tripod and CX8 fluid head for fast and easy set-ups. CX8 75 Sprinter II 2 Stage is designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.

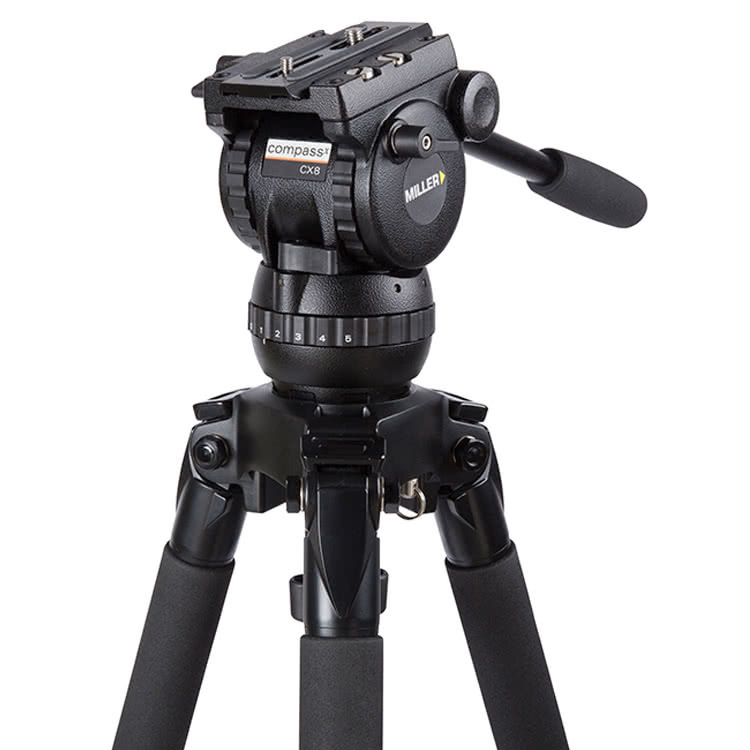

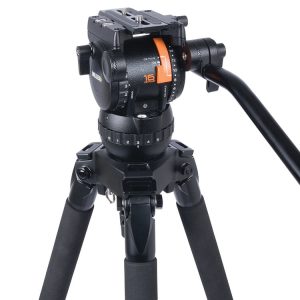

The CX8 fluid head employs CB Plus technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
The CX8 is matched with the 2-stage 75 Sprinter II (carbon fibre) tripod and ground spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.
side load camera plate

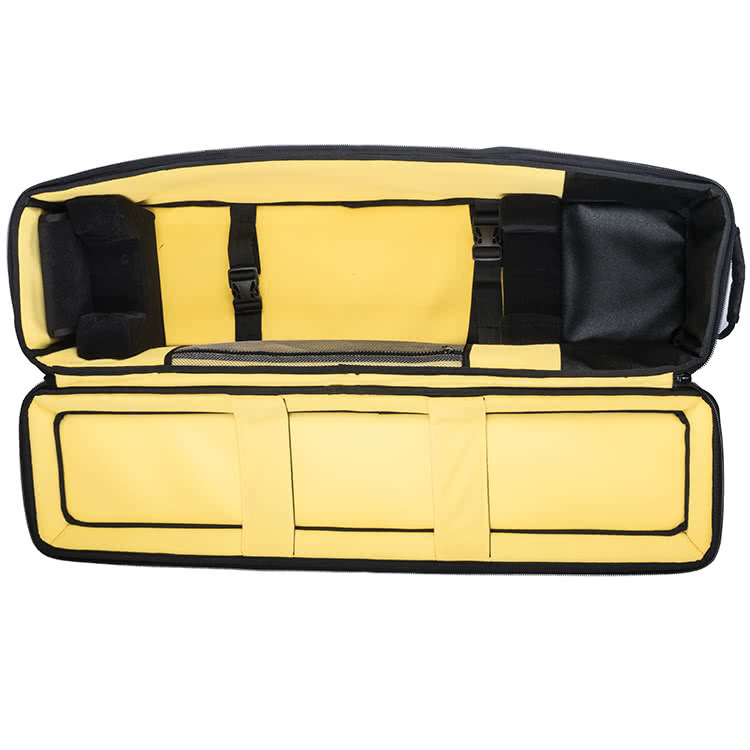

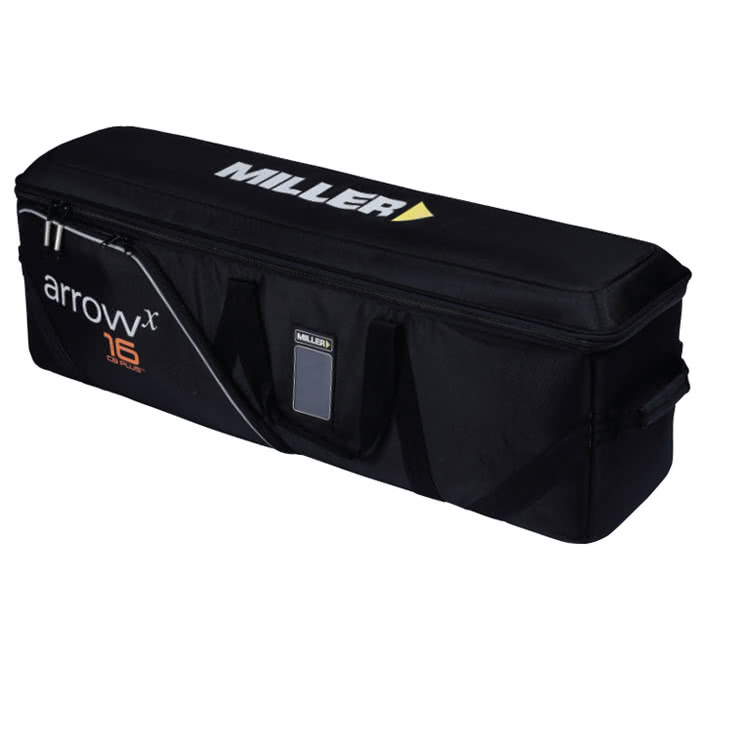

1093: CX8 fluid head, 1620G: 75 Sprinter II 2-stage tripod (carbon fibre), 470: Ground spreader, 679: Pan handle – fixed with clamp, 3502: Arrowx softcase 2-stage
16 selectable positions (15+0)
167mm (6.6")
607-1697mm (23.9-66.8")
Bubble Level
2-stage
Carbon fibre
HS Dual Action
Ø75mm (2.9") ball levelling
Fixed length 390mm (15.4")
360°
5 selectable fluid drag positions + 0
Positive lock caliper brake system
0-12kg (0-26.4lbs)
60mm (2.4")
-40° to +65°C (-40° to +150°F)
+ 90°/ -75°
867mm (34.1”)
6.8kg (15.0lbs)
CAT: 1209
CAT: 481
CAT: 696
CAT: 483
CAT: 493
CAT: 1205
CAT: 1207
CAT: 480
CAT: 1255
CAT: 470
EAN | UPC | GTIN 9354041002433
