CAT: 4050

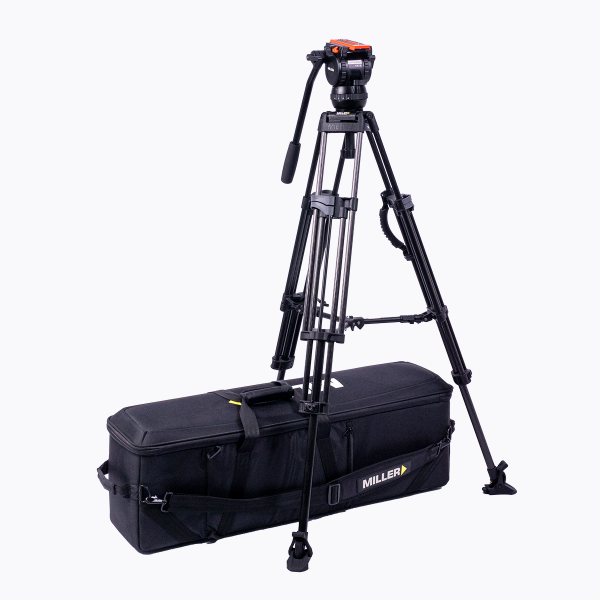

System Versa CXV2 75 Sprinter II 2-STG (Carbon Fibre) with Middle Level Spreader, Feet and Bag

Compare
  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage dual action lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

The 4050 Versa CXV2 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620 75 Sprinter II tripod and Versa CXV2 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.

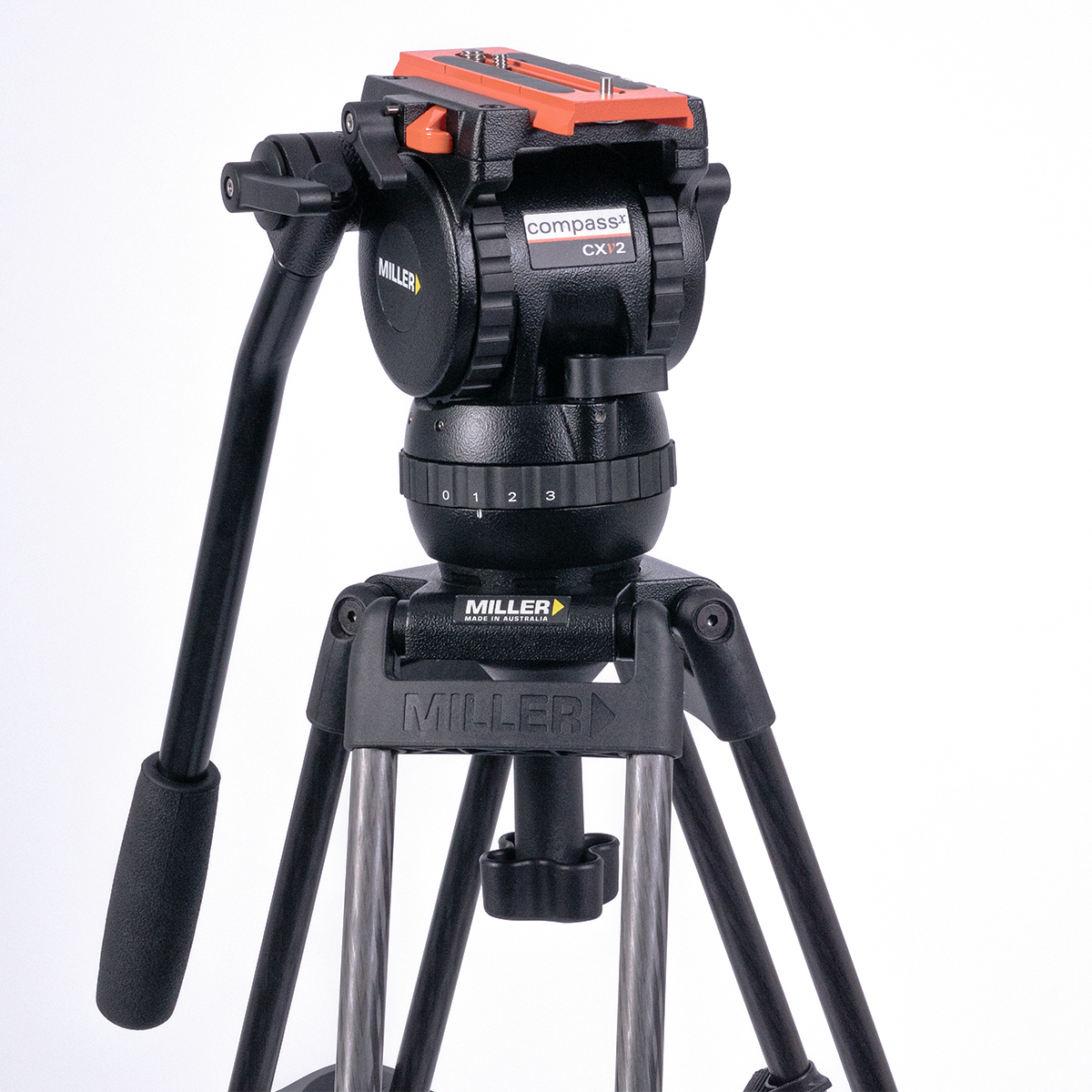

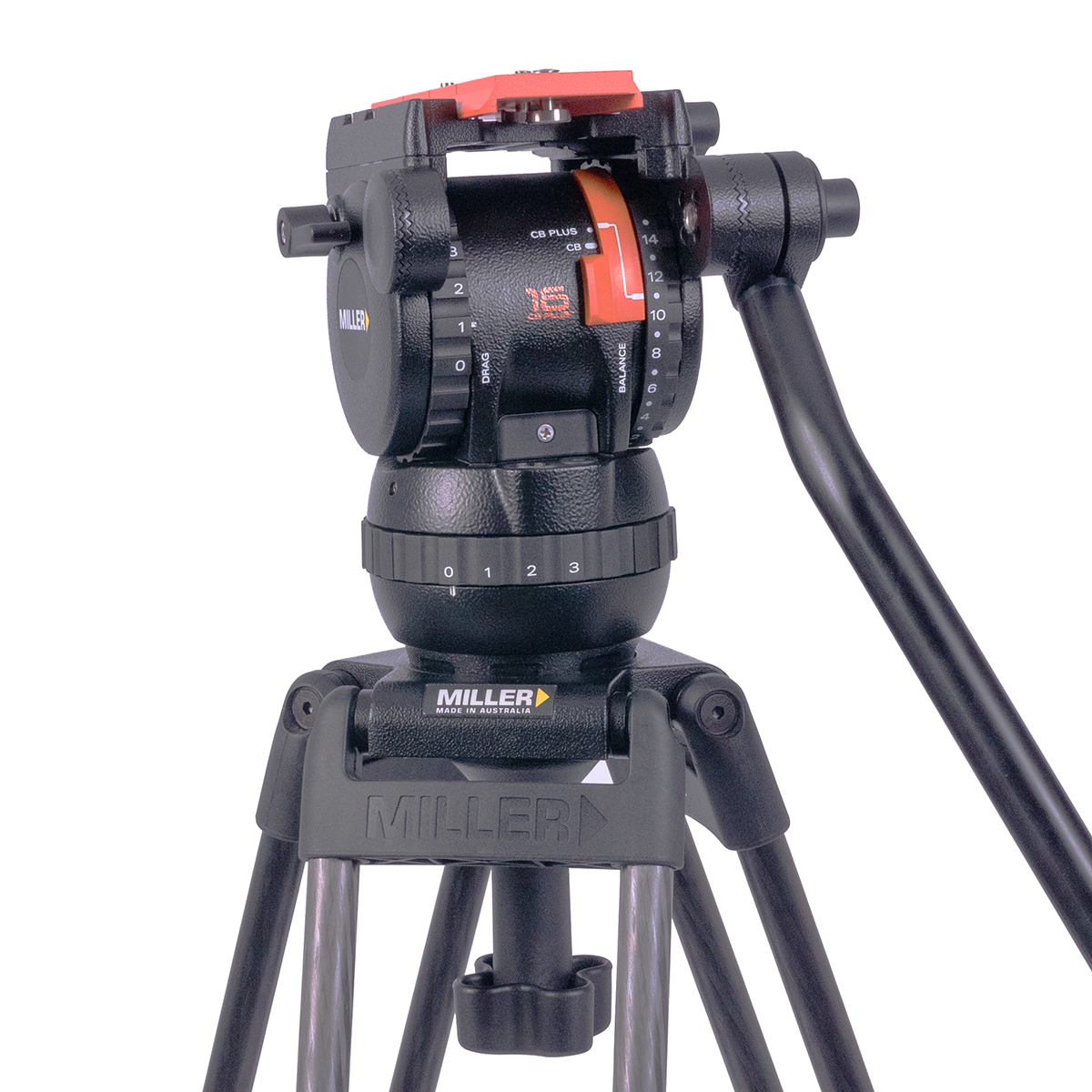

The Versa CXV2 employs CB Plus technology providing 16 positions of counterbalance, 3+0 settings of Miller’s fluid pan and tilt drag with 100mm of camera plate travel, enabling you to match your camera configuration to any shot.

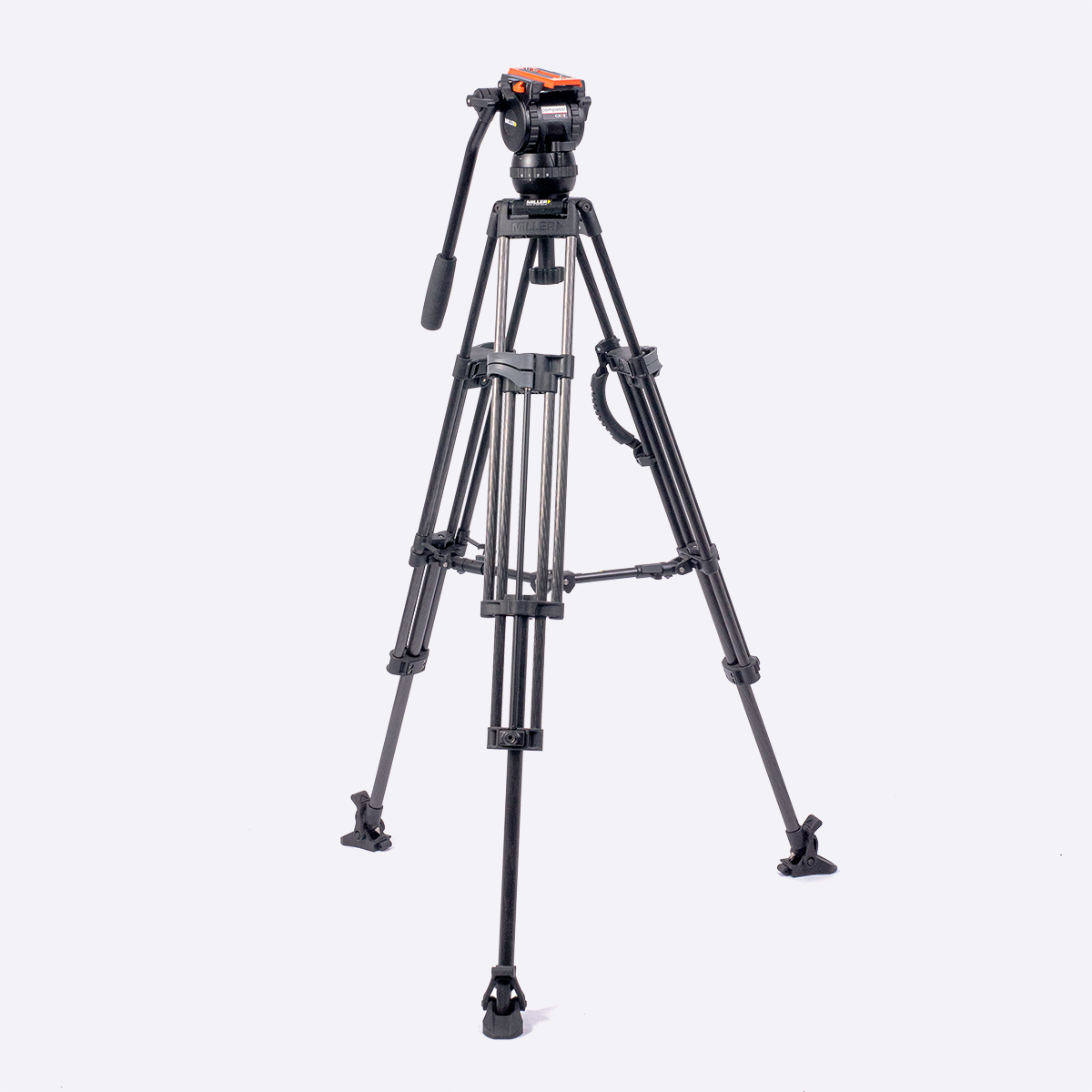

The Versa CXV2 is matched with the 2-stage 75 Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.

Specifications - System Versa CXV2 75 Sprinter II 2-STG (Carbon Fibre) with Middle Level Spreader, Feet and Bag

Camera Platform

Quick release

Components

1135: Versa CXV2 fluid head, 1620: 75 Sprinter II 2-stage tripod (carbon fibre), 593: Basic Mid-level spreader, 475: Rubber feet (set of 3), 679: Pan handle – fixed with clamp, 3502: Arrowx softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

176mm (6.9")

Height Range

767-1697mm (30.2-66.8")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Carbon fibre

Lock Type

HS Dual Action

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-8kg (0-17.6lbs)

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

867mm (34.1”)

Weight

6.5kg (14.3lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041003751
