CAT: 4034

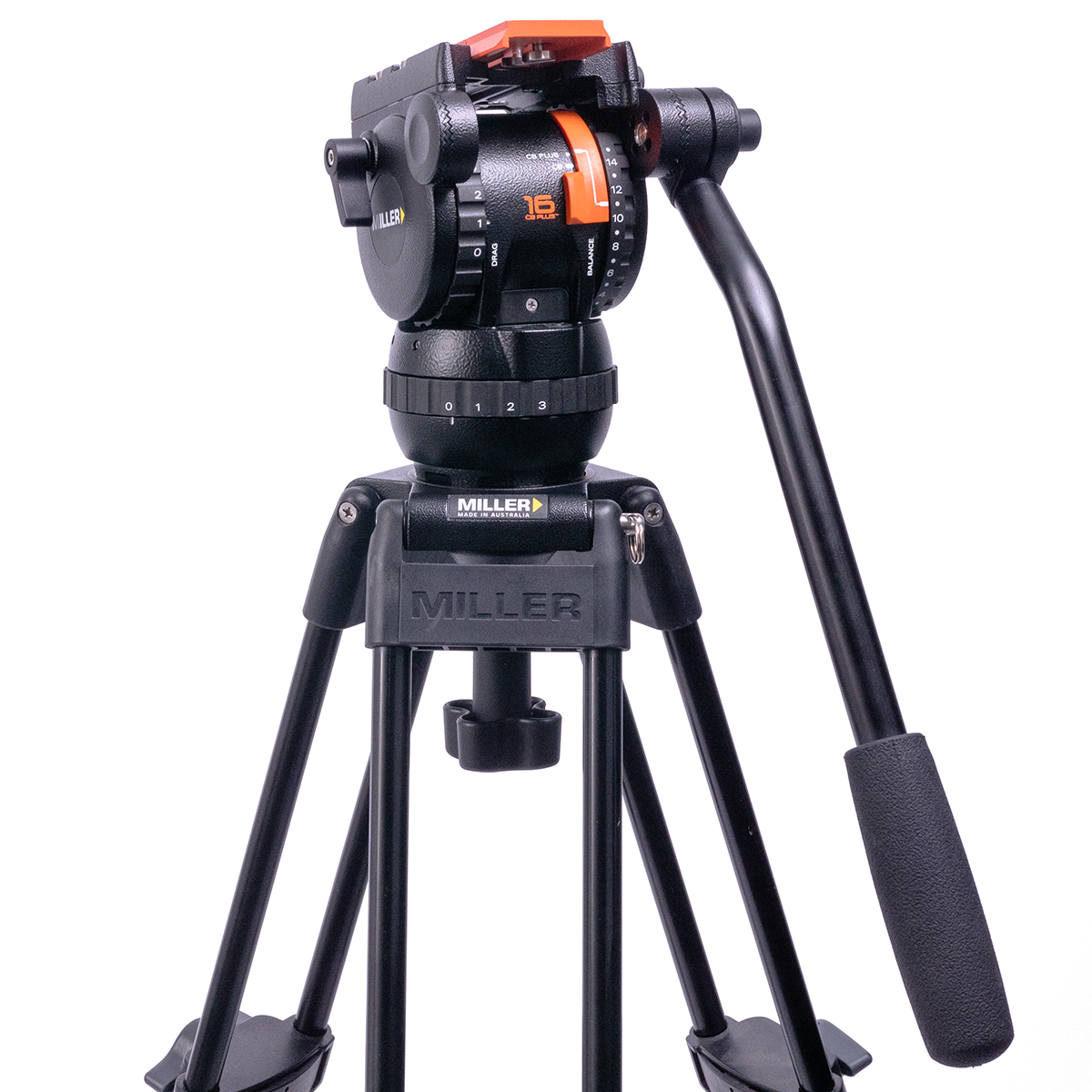

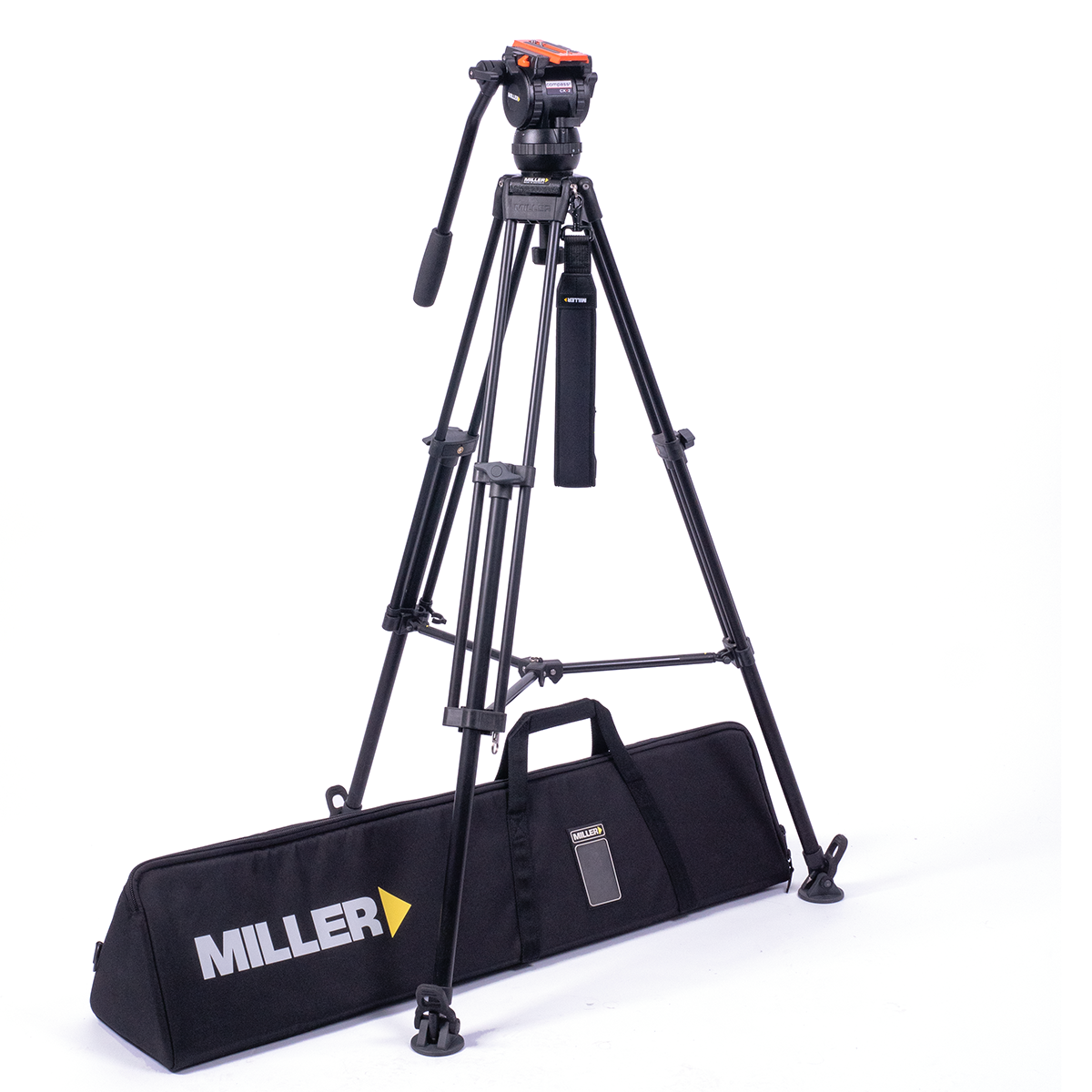

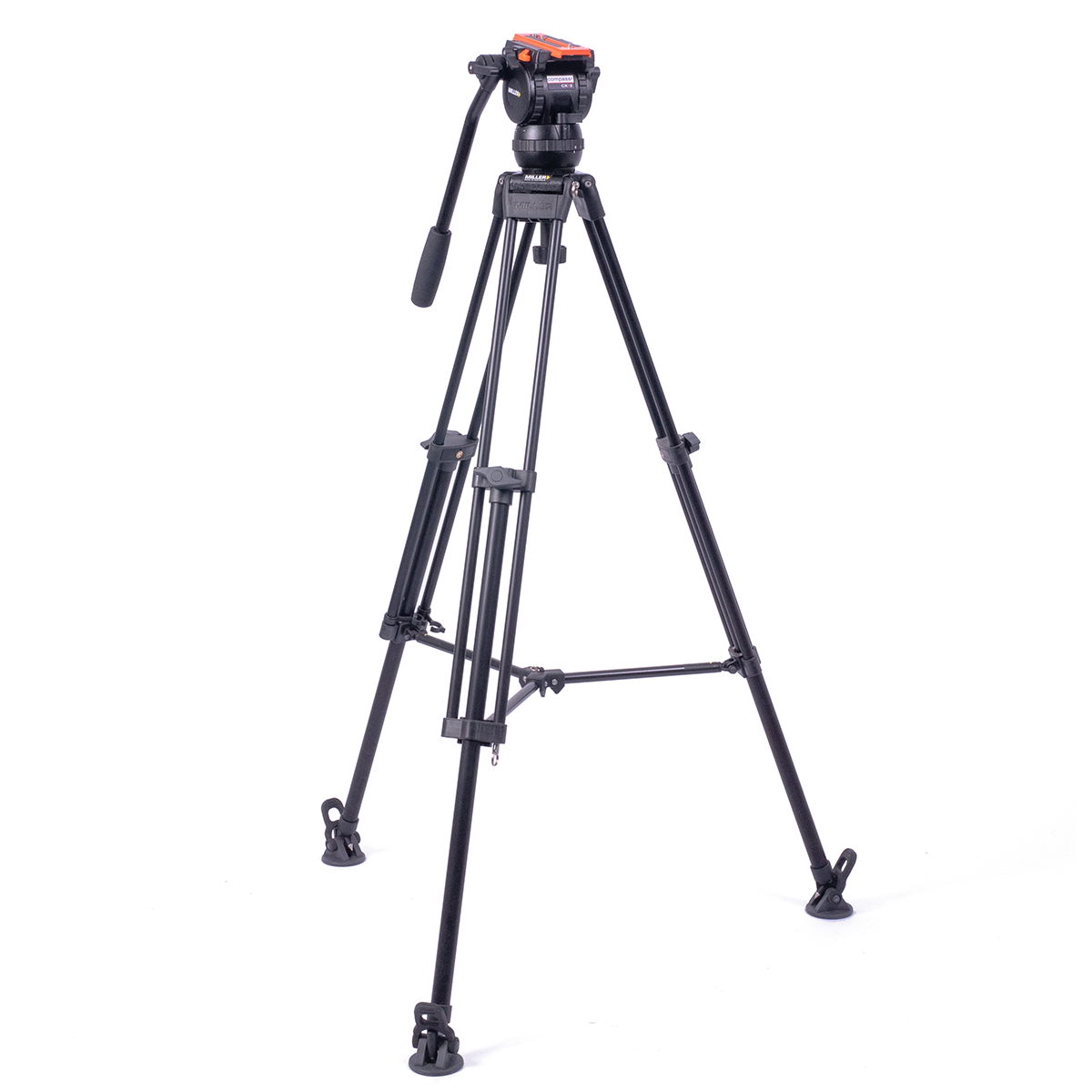

System Versa CXV2 Toggle LW with Above Ground Spreader, Feet and Bag

Compare
  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 selectable counterbalance positions.
  • Ergonomically located CB Plus™ switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 1-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with above ground spreader and rubber feet.
  • Comes with 1-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

The 4034 Versa CXV2 Toggle LW 1-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, Versa CXV2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

The Versa CXV2 employs CB Plus technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 100mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The Versa CXV2 Toggle LW tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.

Specifications - System Versa CXV2 Toggle LW with Above Ground Spreader, Feet and Bag

Camera Platform

Quick release

Components

1135 Versa CXV2 fluid head 440 Toggle 75 LW tripod (alloy) 835 DS tripod spreader 679 Pan handle – fixed with clamp 550 Rubber feet (set of 3) 1520 Shoulder strap (padded) 3512 Softcase 1-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

176mm (6.9")

Height Range

790-1500mm (31.1-59")

Illuminated Controls

Bubble Level

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-8kg (0-17.6lbs)

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

1000mm (39.4")

Weight

5.9kg (13.0lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041003713
