CAT: 4067

System Versa CXV6 Toggle 2-STG (Alloy) with Ground Spreader and Bag

Compare
  • Powerful, light and multifunctional.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 selectable counterbalance positions.
  • Ergonomically located CB Plus™ switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with on ground spreader and rubber feet.

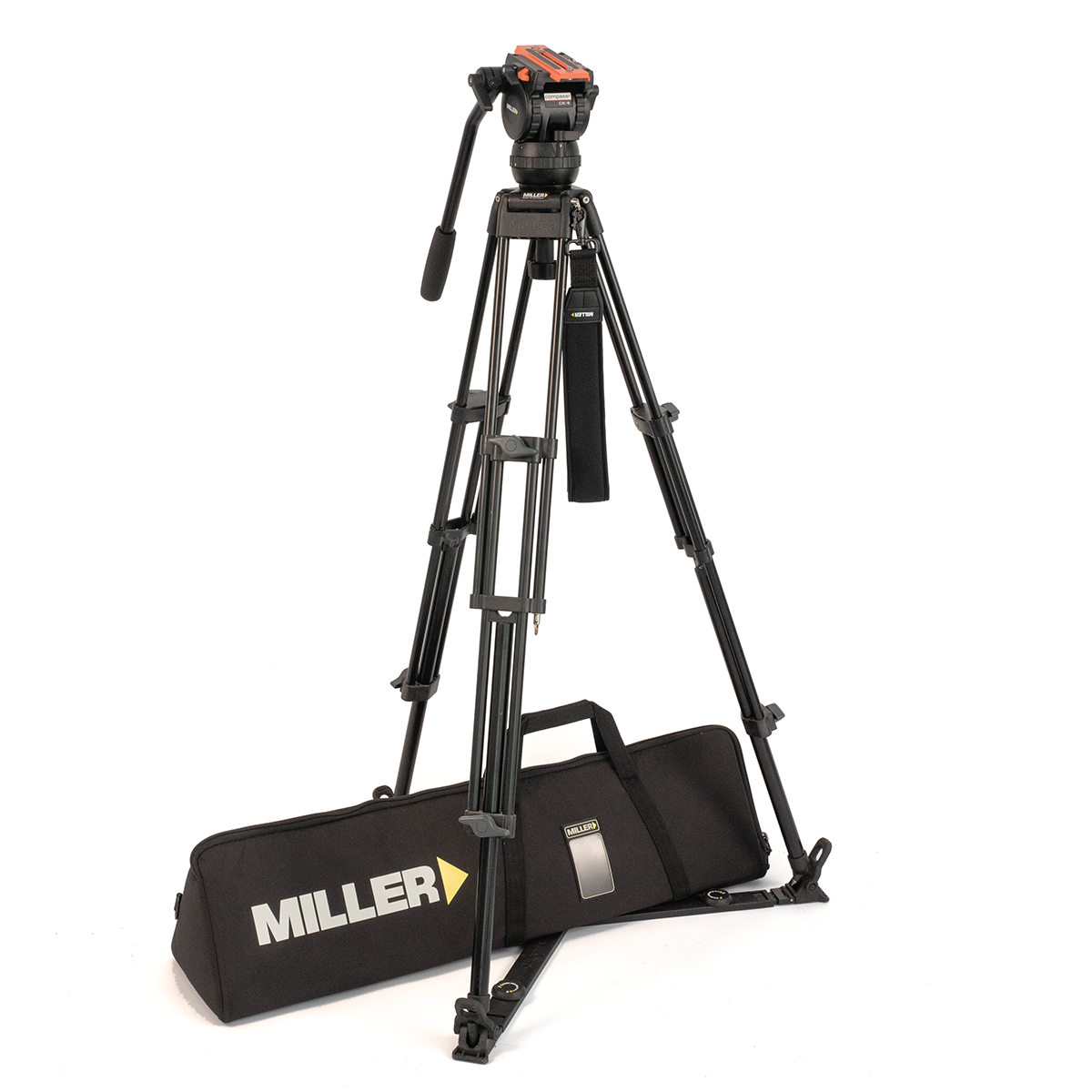

  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

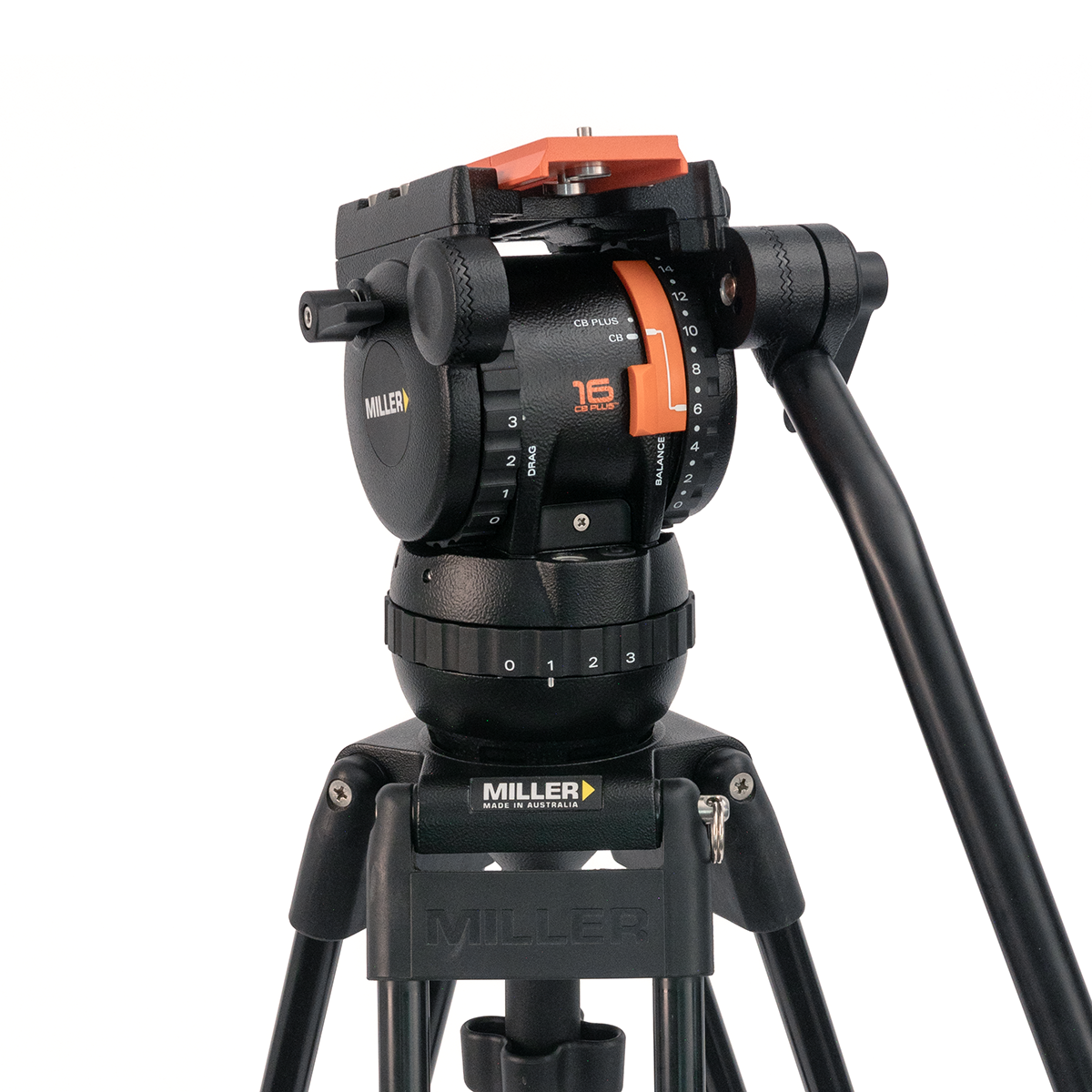

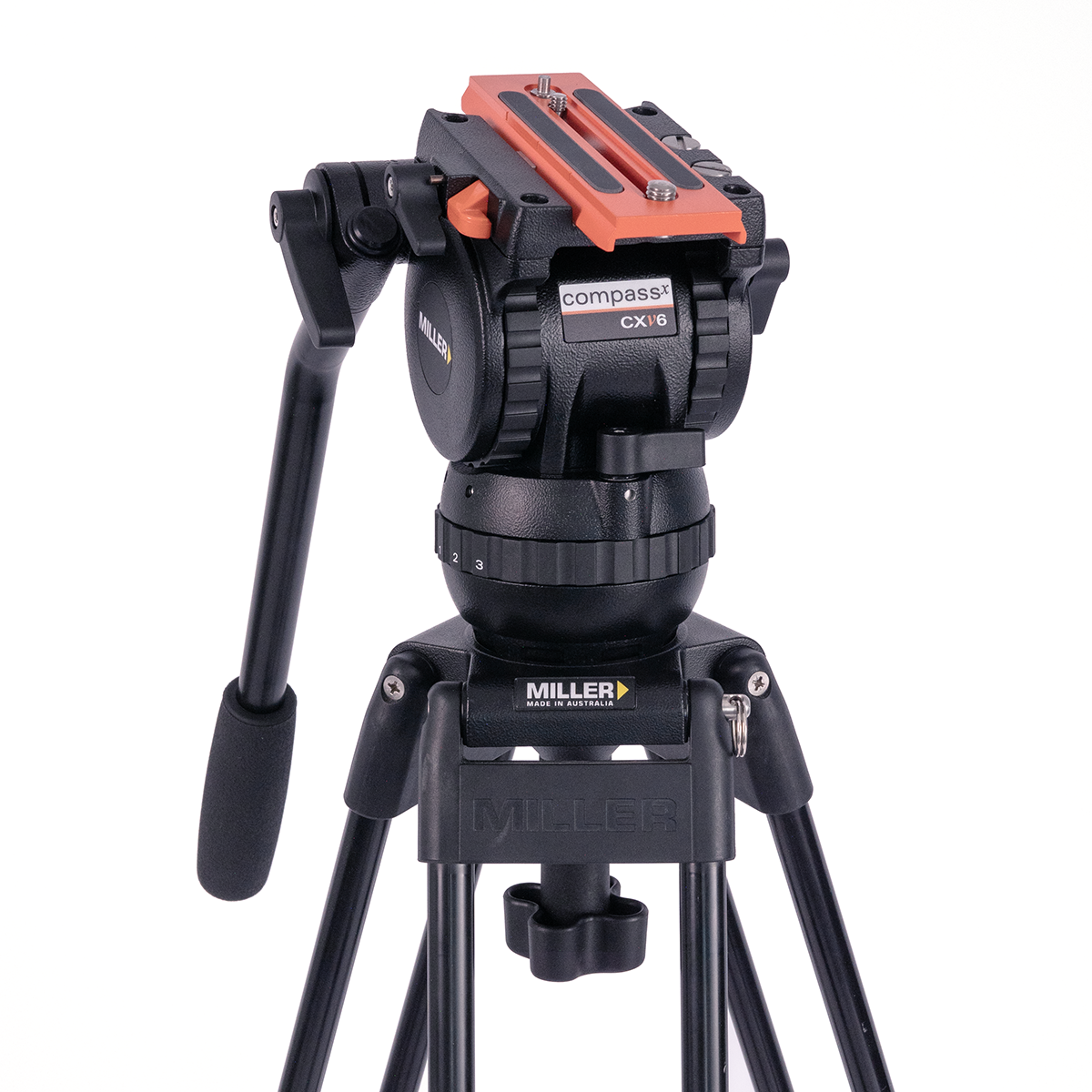

Introducing the 4067 Versa CXV6 Toggle 2-STG Alloy Tripod System, your adaptable solution for shooting needs. This system combines the Versa CXV6 fluid head with the cost-effective yet exceptionally stable 420G Toggle tripod featuring a ground spreader.

Designed to accommodate camera rigs ranging from 0kg to 12kg, the Versa CXV6 excels in ENG, soft news, documentary, and filmmaking scenarios, delivering versatile and powerful performance. With advanced fluid drag, radial control rings, and a quick-release side-loading platform, the Versa CXV6 ensures fast setup, smooth operation, and precise control.

Equipped with CB Plus technology offering 16 counterbalance positions and 3+0 levels of Miller’s unmatched fluid drag, along with 100mm of camera plate travel, you can swiftly fine-tune your tripod configuration for impeccable camera control.

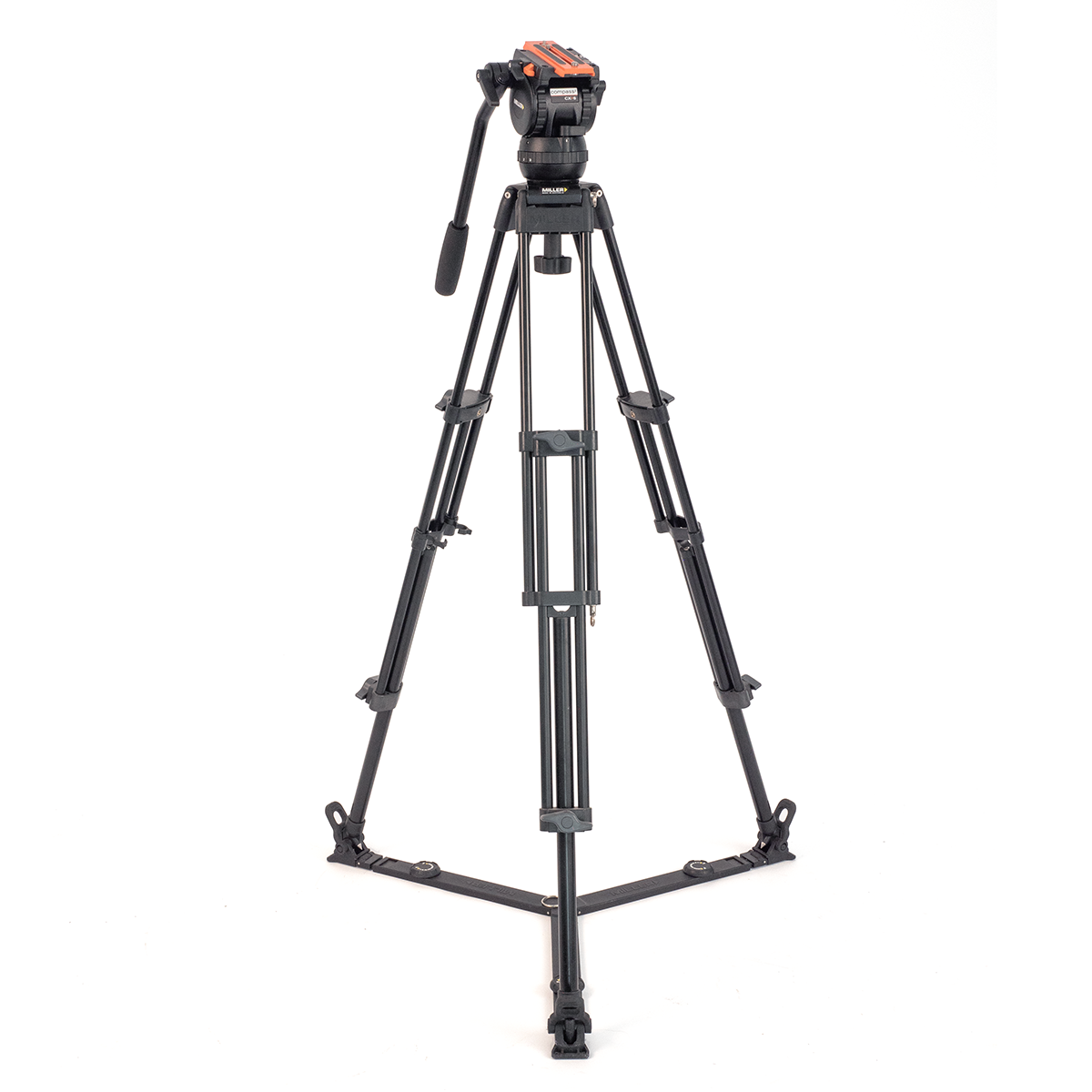

Paired with the 2-stage Toggle Alloy Tripod and a ground spreader, this system offers a height range of 560-1730mm (22-68″), featuring secure toggle leg locks and the stability of a ground spreader. Elevate your shooting experience with the 4067 Versa CXV6 Toggle 2-STG Alloy Tripod System, designed for performance and adaptability.

Specifications - System Versa CXV6 Toggle 2-STG (Alloy) with Ground Spreader and Bag

Camera Platform

Quick release

Components

1138: Versa CXV6 fluid head, 420G: Toggle 75 2-stage tripod (alloy), 411; On ground spreader, 679: Pan handle – fixed with clamp, 1520: Shoulder strap (padded), 3514: Softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

176mm (6.9")

Height Range

560-1730mm (22-68.1")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-12kg (0-26.4lbs)

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

861mm (33.9")

Weight

6.8kg (15lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041003799
