CAT: 4068

System Versa CXV6 Toggle 2-STG (Alloy) with Above Ground Spreader, Feet and Bag

Compare
  • Powerful, light and multifunctional.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 selectable counterbalance positions.
  • Ergonomically located CB Plus™ switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with on above ground spreader and rubber feet.

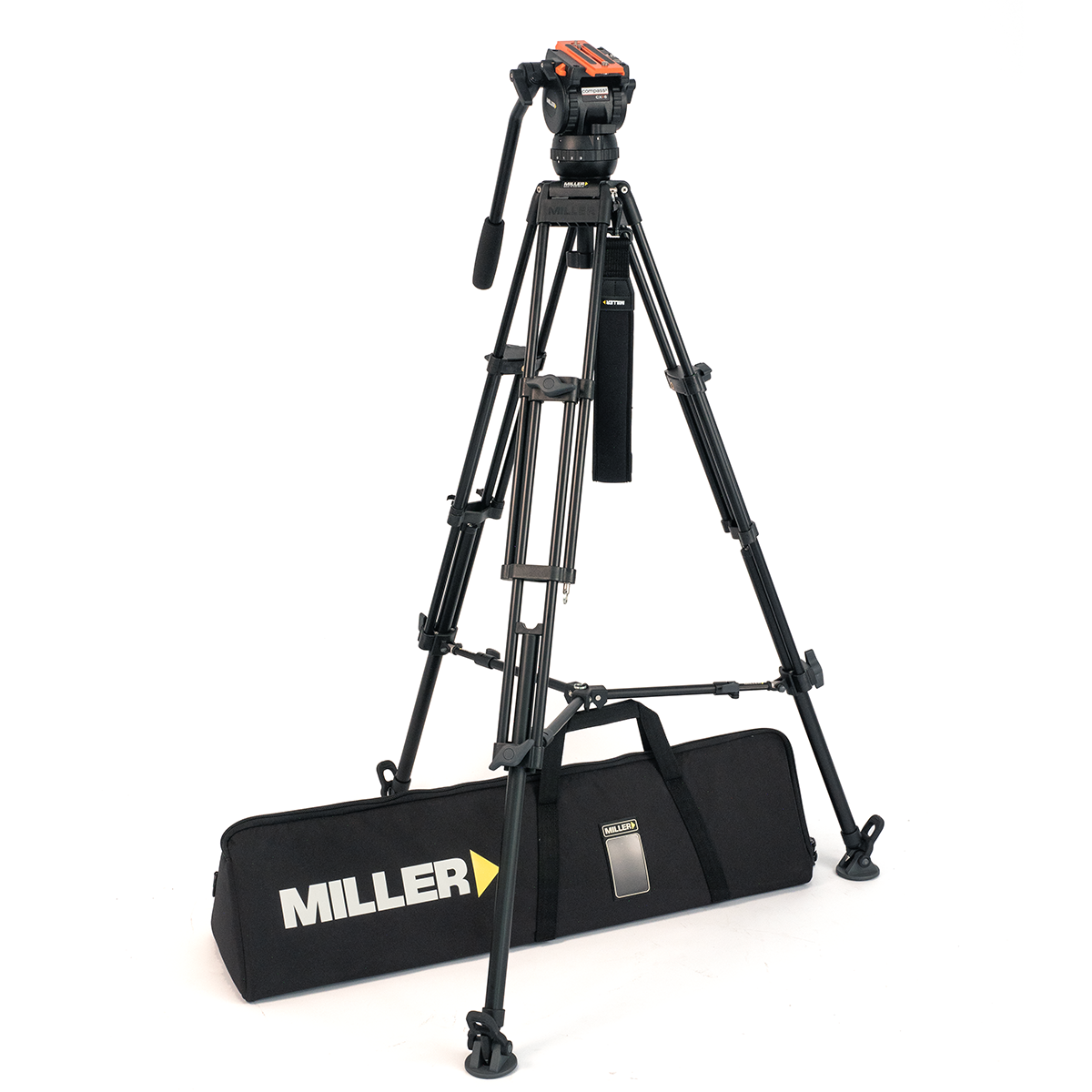

  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

Introducing the 4068 Versa CXV6 Toggle 2-STG Alloy Tripod System, a videography tech marvel. This system combines the Versa CXV6 fluid head with the budget-friendly yet incredibly stable 420 Toggle tripod, featuring an above-ground spreader.

Designed to flexibly adapt to your shooting needs, accommodating camera rigs ranging from 0kg to 12kg, the Versa CXV6 is your go-to solution for ENG, soft news, documentary, and filmmaking. It boasts exceptional versatility and powerful performance, featuring advanced fluid drag, radial control rings, and a quick-release side-loading platform for swift, smooth, and precise setup.

Equipped with CB Plus technology, the Versa CXV6 offers 16 counterbalance positions and 3+0 levels of Miller’s unparalleled fluid drag. With 100mm of camera plate travel, you can effortlessly tailor your tripod configuration for flawless camera control.

Paired with the 2-stage Toggle Alloy Tripod and an above-ground spreader, this system delivers a substantial height range of 560-1730mm (22-68″). With secure positive leg toggle locks and the adaptability to conquer various terrains, the Versa CXV6 is your ultimate videography companion. Elevate your shooting experience with the 4068 Versa CXV6 Toggle 2-STG Alloy Tripod System, designed for performance and adaptability.

Specifications - System Versa CXV6 Toggle 2-STG (Alloy) with Above Ground Spreader, Feet and Bag

Camera Platform

Quick release

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

176mm (6.9")

Height Range

560-1730mm (22-68.1")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-12kg (0-26.4lbs)

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

861mm (33.9")

Weight

6.7kg (14.8lbs)

Components

1138: Versa CXV6 fluid head, 420: Toggle 75 2-stage tripod (alloy), 508: Above ground spreader,, 550: Rubber feet (set of 3) 679: Pan handle – fixed with clamp, 1520: Shoulder strap (Aircell), 3514: Softcase 2-stage

Compatible Accessories

EAN | UPC | GTIN 9354041003805
