CAT: 1085

Skyline 90 Fluid Head

For the demanding professional Compare
  • 15 selectable fluid pan-tilt drag positions + 0.
  • Continuous counterbalance control knob for perfect counterbalance adjustment.
  • Perfect for payloads up to 75kg (165lbs) at 30 cm above central tilt axis.
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
  • Two bubble levels.
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
  • Quick release wedge plate for sturdy camera mounting (optional).
  • Mitchell base for flat mounting.
  • Robust all-alloy construction.
  • Heavy duty, industry standard telescopic pan handles (optional).
  • 3 year warranty.

2 customer(s) had already enquired for this product.

From your nearest dealer

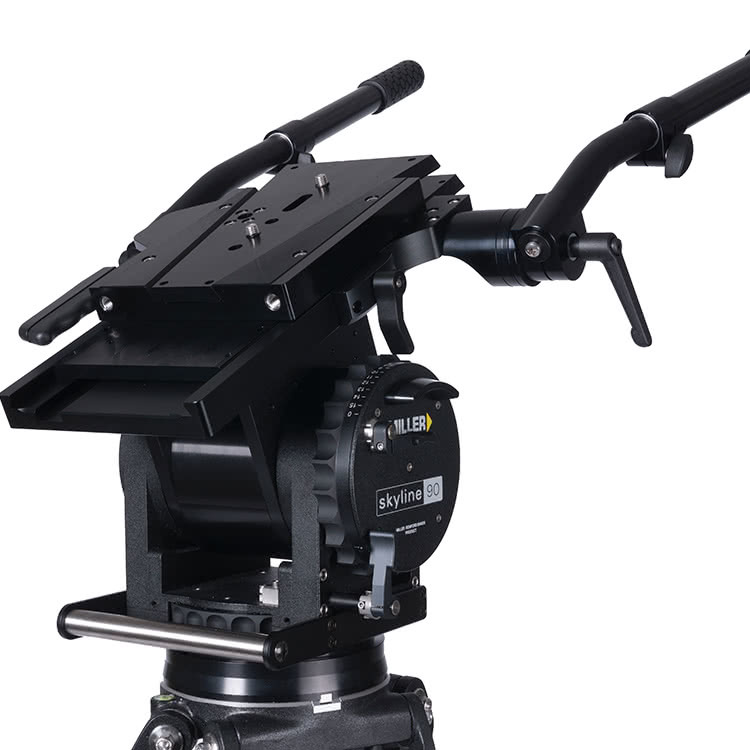

The Skyline 90 is a heavy duty fluid head designed to meet the challenging requirements of outside broadcast productions.

Reliability, ease of setup, smooth pans, tilts, diagonals and user ergonomics form the hallmarks of this revolutionary head.

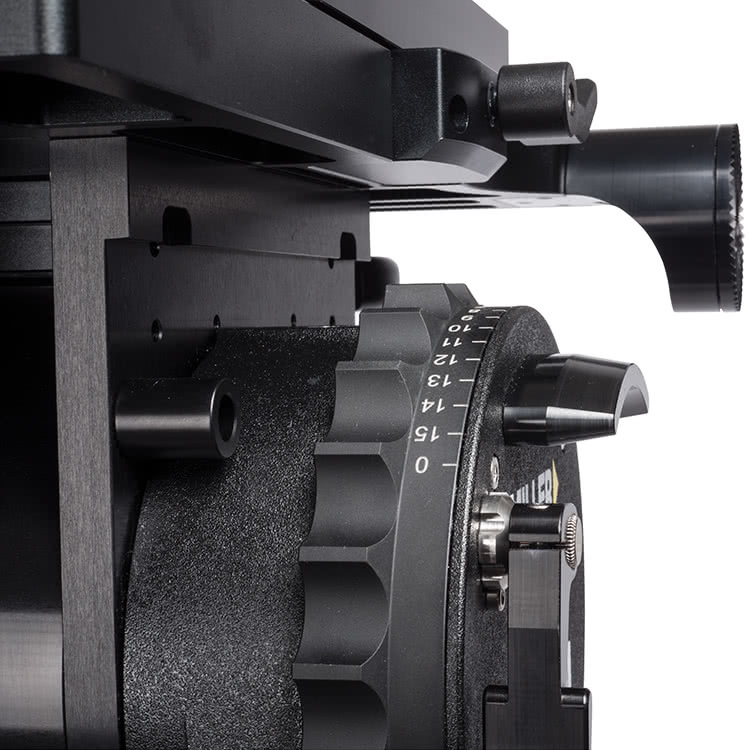

The Skyline 90 has continuous counterbalance control that ranges from zero to 165 lbs. (75 kg.) at 12 in. (30 cm.) above the tilt axis and 15+0 selectable fluid pan-tilt drag positions to ensure optimum drag for any lens focal length.

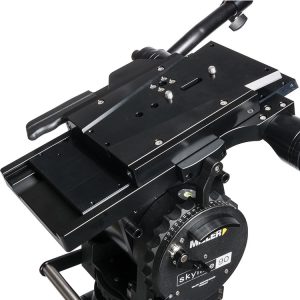

The sliding platform features 300mm of sliding range that glides smoothly and effortlessly with full payload.

Skyline 90 also comes with an auto safety lock to ensure a secure horizontal position when loading or dismantling heavy box lenses.

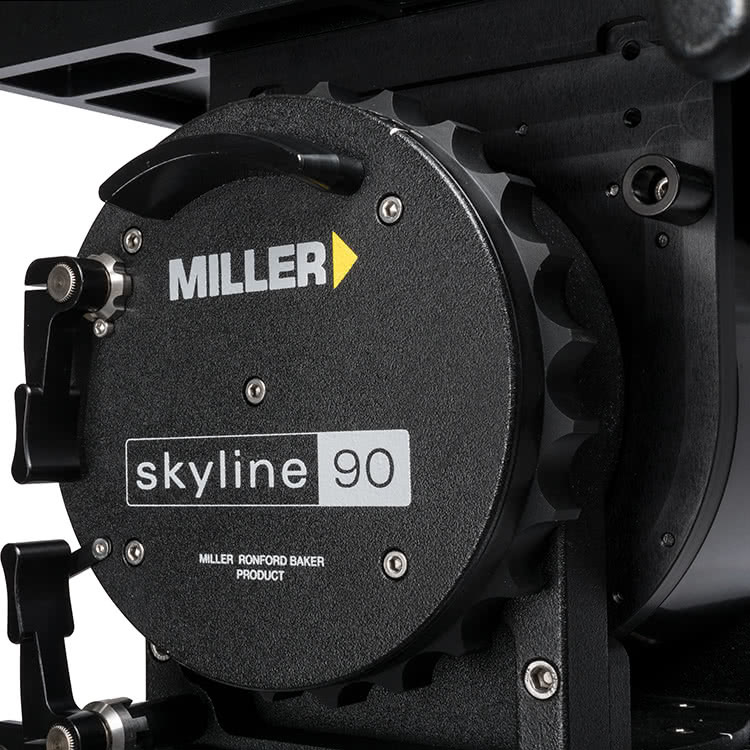

The floating calliper pan and tilt locks, with large metal levers, can be operated simultaneously with one hand without causing picture disturbance.

Two bubble levels located at either side of the head allow for convenient levelling.

Miller Skyline 90 come with a three year warranty, endorsing the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

CAT# – 1085

Specifications - Skyline 90 Fluid Head

Camera Platform

Quick release wedge plate

Counterbalance Positions

Continuous adjustment (0 – 100%)

Height Above Bowl

332mm (13.1”)

Mounting Base

Mitchell base

Pan Range

360°

Pan Tilt Drag

15 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

75.0kg (165.4lbs) @ 300mm above pivotal centre

Safety Lock

Quick release tilt lock pin

Sliding Range

300mm (11.8”)

Temperature Range

-40° to +65° C (-40° to +150° F)

Tilt Range

+60° / -60°

Weight

23.0kg (50.7lbs)

EAN | UPC | GTIN 9354041000606
