Tytan 100mm QR Long Clamp Nut

Faster to Lock. Easier to Work.

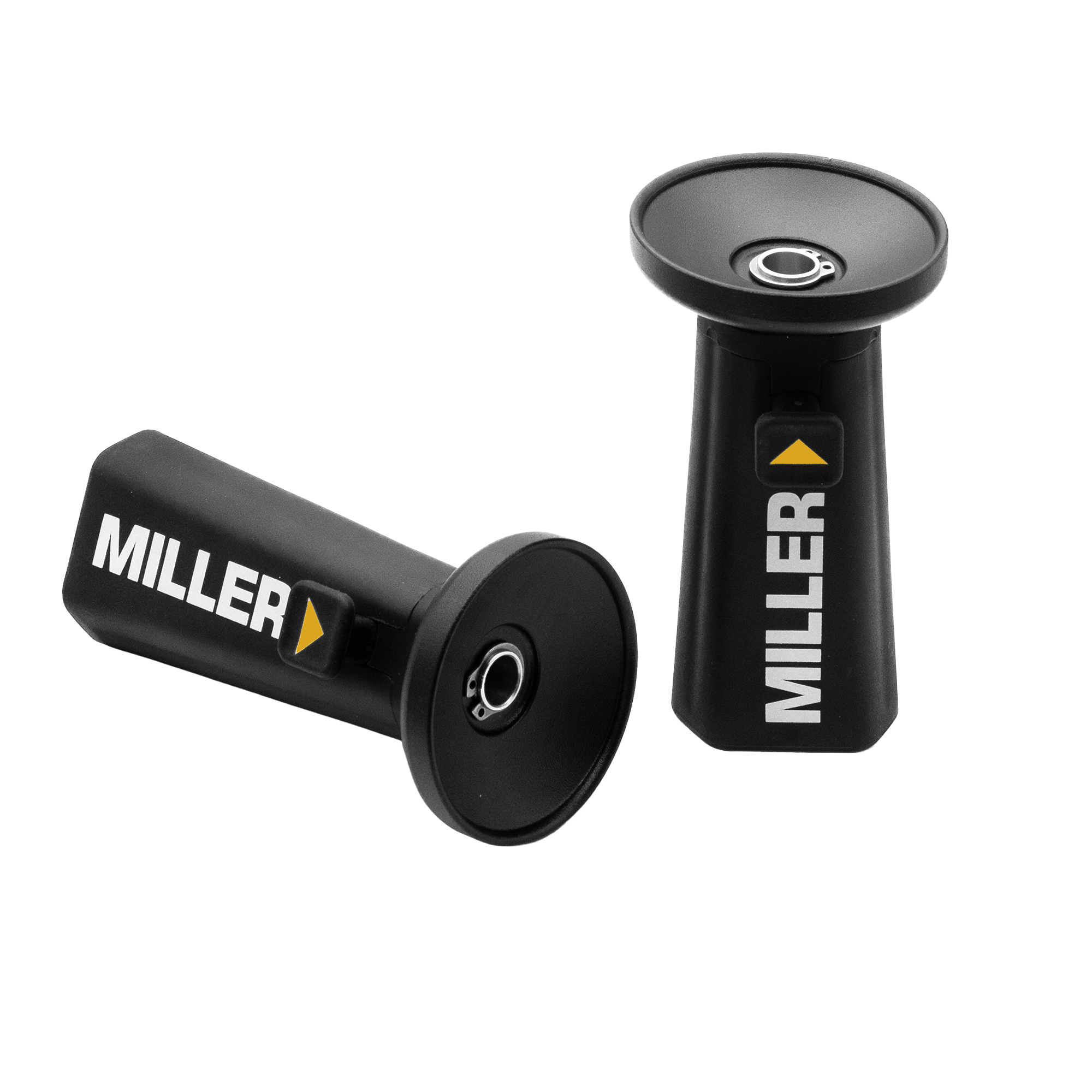

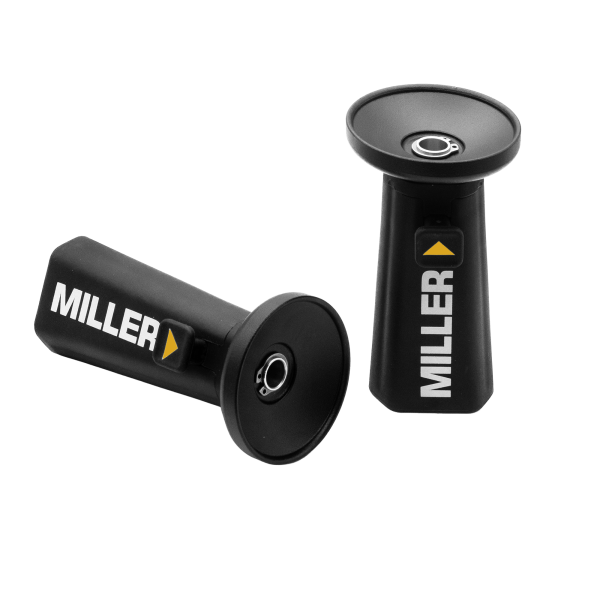

The Miller TYTAN 100mm Quick Release Long Clamp Nut brings a faster, more ergonomic way to secure a professional fluid head to a 100mm tripod bowl.

Traditional clamp nuts require you to rotate the nut along the full length of the threaded stud before the head can be secured. With TYTAN, that unnecessary spinning is gone. A simple push-button mechanism allows you to move directly through the stud, engage the thread at the end, and lock the head securely in place.

Press. In. Release. Lock.

Press the button, insert TYTAN through the stud, release the button, and tighten. That’s it.

When it’s time to pack down, simply unscrew, press the button and pull TYTAN back through the stud.

The result is a quicker, smoother workflow that reduces repetitive wrist movement and makes mounting and removing your fluid head noticeably easier—particularly when you’re doing it repeatedly throughout a production day.

Built for Professional Camera Support

Designed for broadcast, cinema, television, live production and rental environments, TYTAN combines a compact ergonomic design with high clamping torque to provide a secure connection without unnecessary effort.

The 100mm TYTAN is fully compatible with Miller’s 100mm tripod and fluid head systems, making it a straightforward upgrade for existing equipment.

Key Benefits

• Quick-release operation eliminates endless twisting along the threaded stud.
• Press. In. Release. Lock. makes mounting intuitive and fast.
• Ergonomic handle helps reduce repetitive wrist movement and fatigue.
• High clamping torque provides a secure, rock-solid connection.
• Compact and durable construction designed for professional production environments.
• Backward compatible with Miller 100mm fluid heads and tripods.
• Ideal for high-volume use in broadcast, cinema and rental applications.

High Torque. Minimal Effort.

TYTAN is designed to deliver significantly more tightening torque than the average hand grip, giving operators the leverage required for a secure connection while reducing unnecessary effort.

Designed operating torque: 26.5 Nm
Maximum torque: 42.7 Nm
Average hand-grip torque: 11.5–14.0 Nm

Choose Your TYTAN

The TYTAN system is available across 75mm, 100mm and 150mm tripod bowl sizes, with Short Handle and Long Handle options. A Flat TYTAN with Short Handle is also available for Dana Dolly applications.

Less spinning. More shooting.

TYTAN — Press. In. Release. Lock.

Cat# 1342
