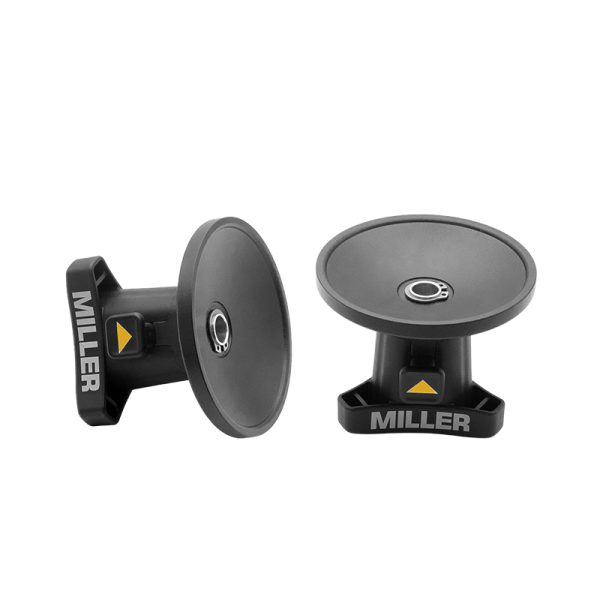

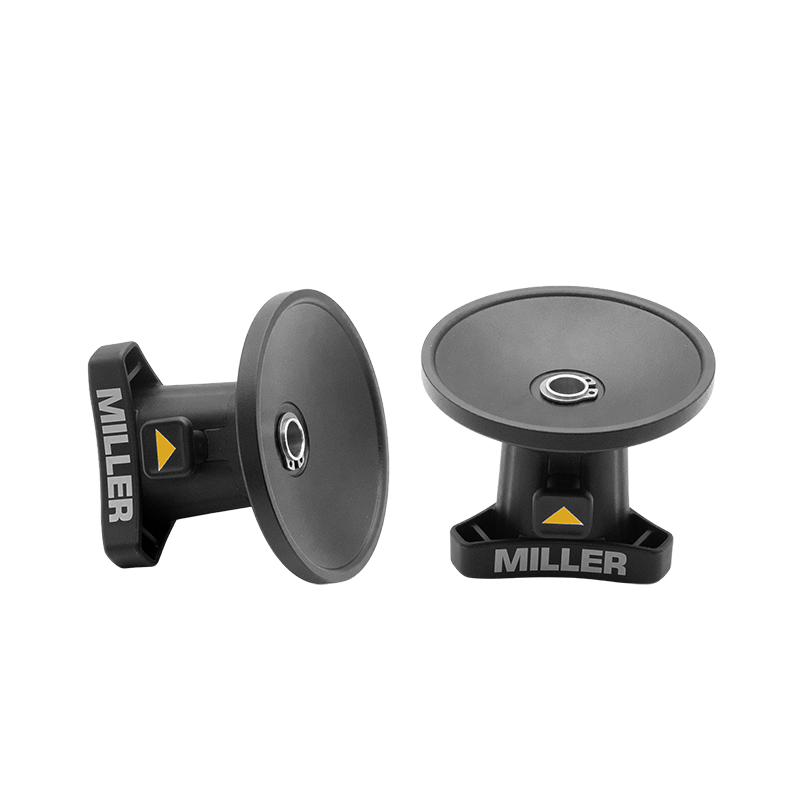

The Miller TYTAN 150mm Quick Release Clamp Nut – Short Handle provides a faster, more ergonomic way to secure professional fluid heads to a 150mm tripod bowl.
Traditional clamp nuts require repeated rotation along the full length of the threaded stud before the head can be secured. TYTAN eliminates this unnecessary spinning with its simple push-button quick-release mechanism, allowing you to move directly through the stud and engage the thread at the end.
Press the button, insert TYTAN through the stud, release the button, and tighten. Done.
When it’s time to remove the fluid head, simply unscrew, press the button and pull TYTAN back through the stud.
The result is a faster, smoother setup and pack-down process, with less repetitive wrist movement and less time spent securing your equipment.
Designed for cinema, broadcast, television, live production and rental environments, the 150mm TYTAN combines a compact, ergonomic design with high clamping torque to provide a secure and dependable connection.
The 150mm Short Handle TYTAN is designed for Miller 150mm tripod and fluid head systems, providing a straightforward upgrade to the traditional clamp nut.
Despite its compact design, TYTAN is engineered to deliver high tightening torque, giving operators the leverage needed for a secure connection without unnecessary effort.
Designed operating torque: 26.5 Nm Maximum torque: 42.7 Nm Average hand-grip torque: 11.5–14.0 Nm
TYTAN is available in 75mm, 100mm and 150mm bowl sizes, with Short Handle and Long Handle options. A Flat TYTAN with Short Handle is also available for Dana Dolly applications.
TYTAN — Press. In. Release. Lock.
