CAT: 4157

System Versa 4157 CXV+14 Toggle 2-STG (Alloy) with Ground Spreader and Bag

Compare

Compact, lightweight and versatile.
100mm bowl levelling.
Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

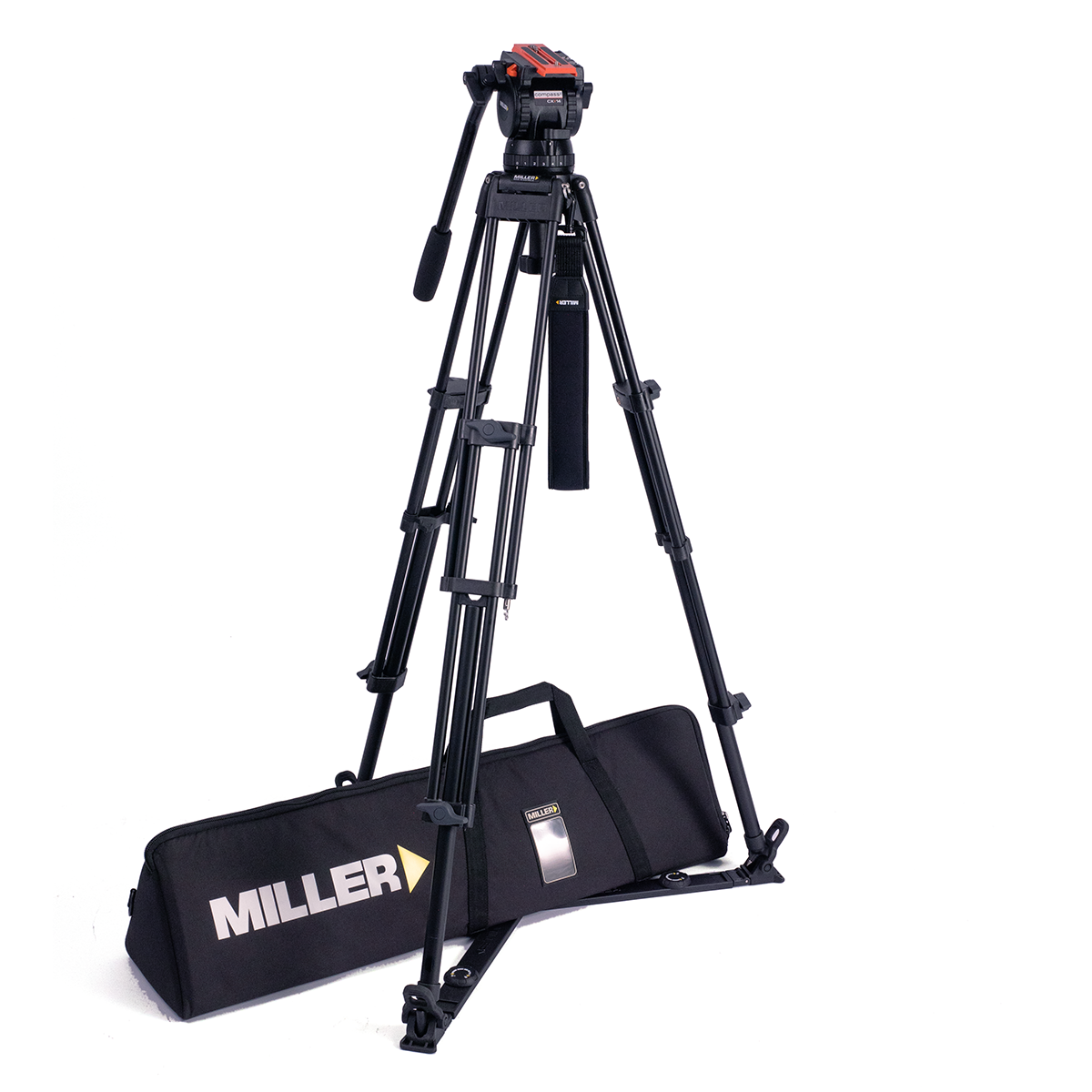

Introducing the Versa 4157 CXV+14 Toggle 2-stage (alloy) tripod system, a dynamic combination of the Versa CXV+14 fluid head and the agile 100mm 402G Toggle tripod with a ground spreader.

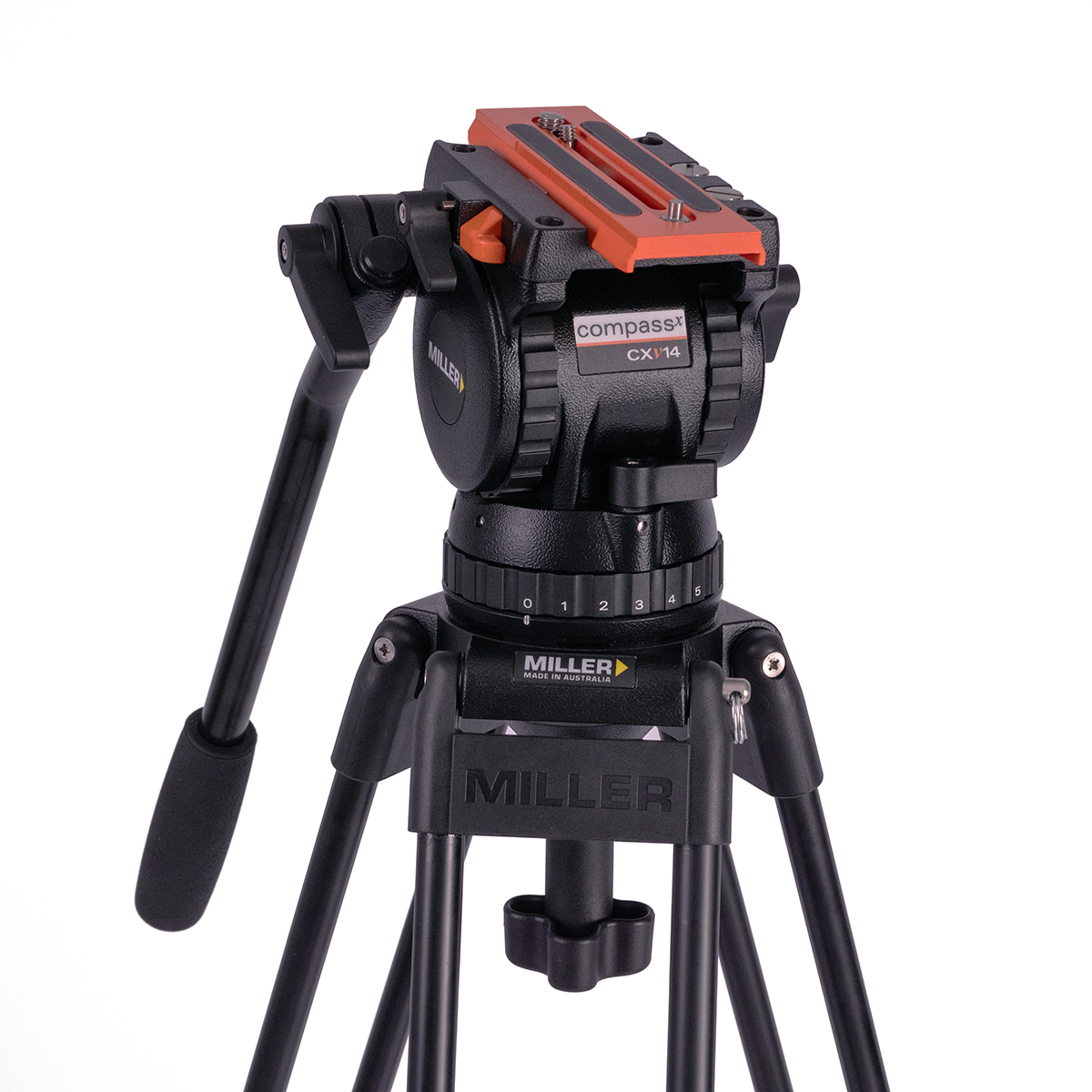

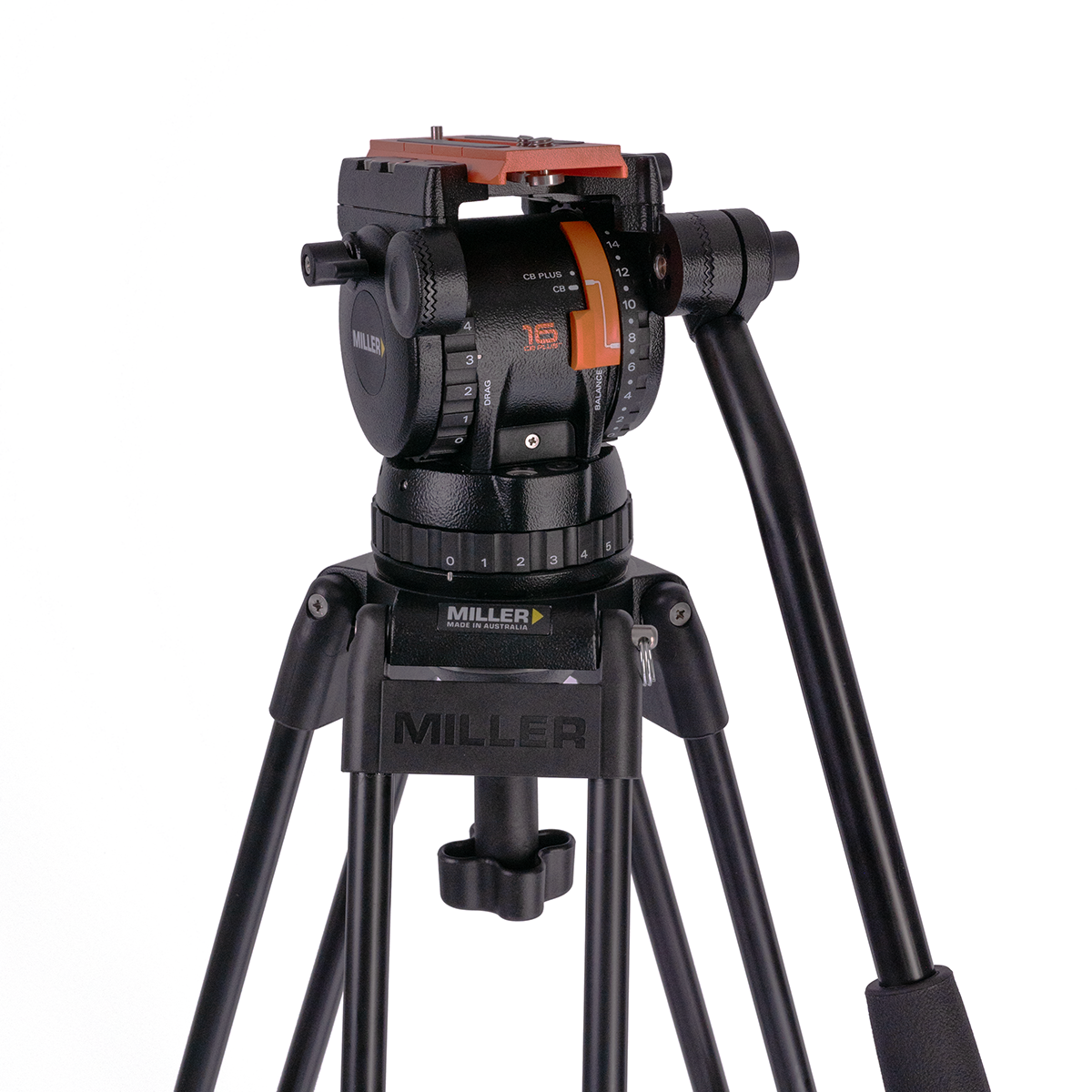

Designed for versatility and efficiency, the Versa CXV+14 fluid head features CB Plus™ technology, boasting 16 positions of counterbalance and 5+0 settings of Miller’s fluid pan and tilt drag. With a payload capacity ranging from 0 to 14.0 kg (0 to 30.9 lbs) and 100mm of camera plate travel, you can effortlessly adapt your camera setup to any shooting scenario.

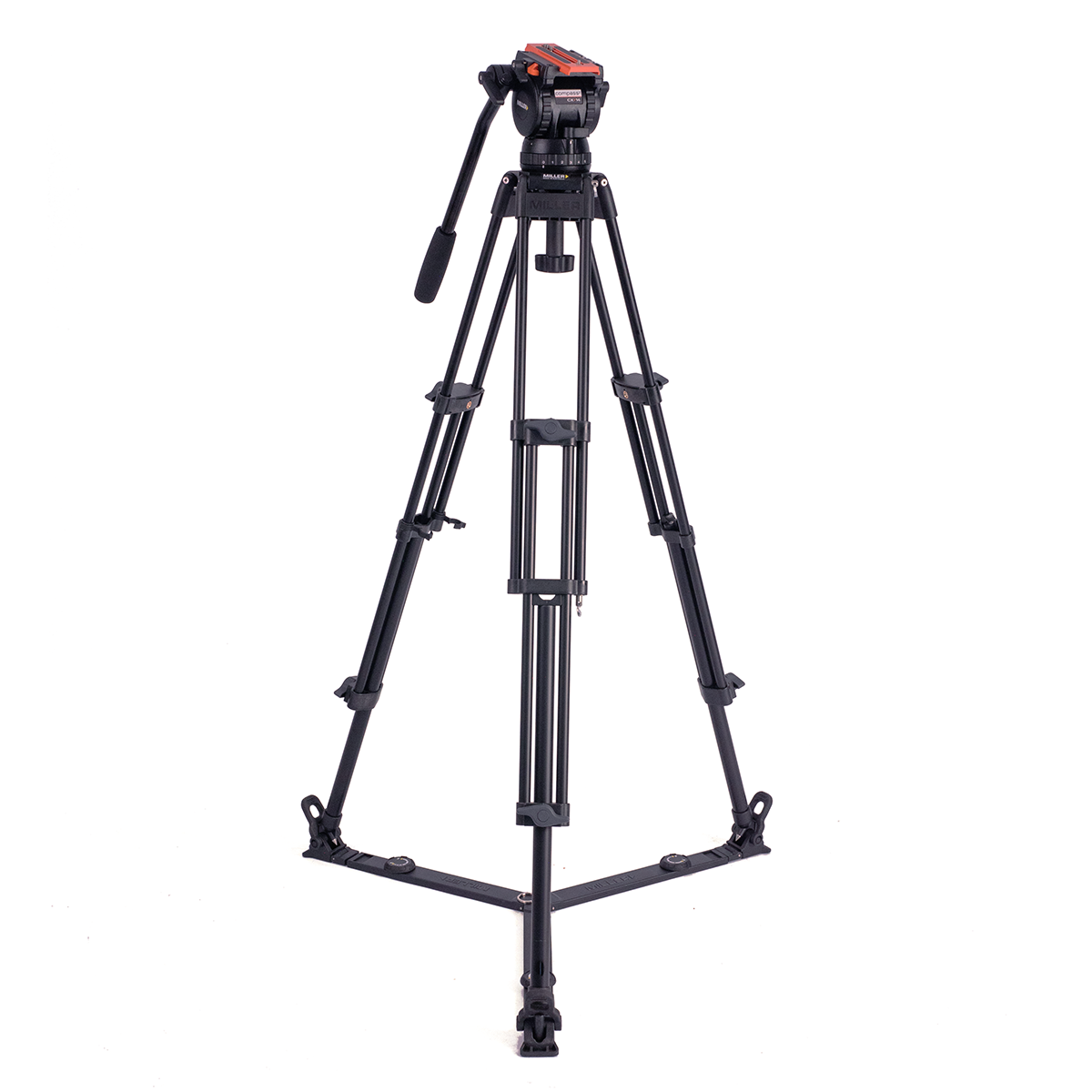

Paired seamlessly with the 2-stage Toggle alloy tripod and on-ground spreader, this system offers a generous height range of 553mm to 1723mm (22 inches to 68 inches). Equipped with positive leg toggle locks and the flexibility to traverse all terrains, this tripod system ensures stability and adaptability wherever your creative endeavours take you.

Specifications - System Versa 4157 CXV+14 Toggle 2-STG (Alloy) with Ground Spreader and Bag

Camera Platform	Quick release
Components	1147: Versa CXV14 fluid head, 402G: Toggle 2-stage tripod (alloy), 411: On ground spreader, 679: Pan handle – fixed with clamp, 1520: Shoulder strap (Aircell), 3514: Softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	158mm (6.2")
Height Range	553-1723mm (22-68")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Alloy
Lock Type	Toggle
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock caliper brake system
Payload Range	0-14.0 kg (0-30.9 lbs)
Sliding Range	100mm (3.93")
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	853mm (33.6")
Weight	6.9kg (15.2lbs)

CXV+14 Product Data Sheet

(Size: 898.72 KB)

CXV+ Operation Manual

(Size: 2495.35 KB)

Toggle 2-STG Alloy Ground Spreader Product Data Sheet

(Size: 169.07 KB)
