CAT: 3786

CX14 Solo-Q 100 2 Stage Carbon Fibre

Reliable and precise on the fly Compare

Compact, lightweight and versatile.
100mm ball levelling.
Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
2-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
Lightweight carbon fibre legs.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

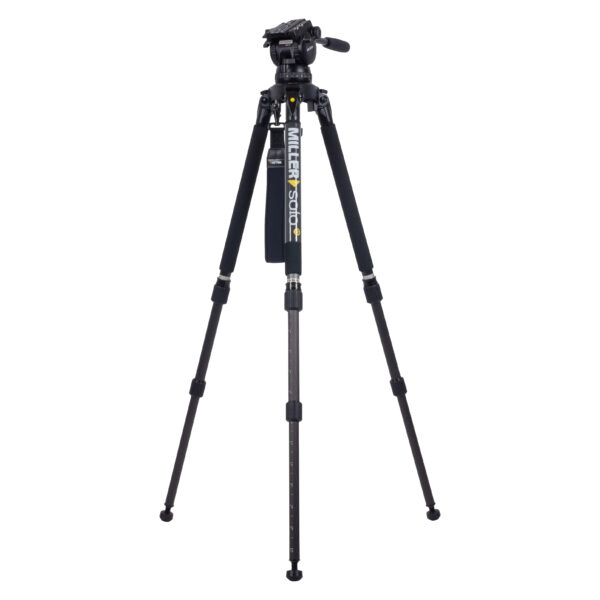

Introducing the unforgettable 3786 CX14 Solo-Q 100 2-stage (carbon fibre) tripod system—a true masterpiece that combines the groundbreaking 2515 Solo-Q 100 tripod with the exceptional CX14 fluid head.

With CX14‘s innovative CB Plus™ technology, you have access to 16 positions of counterbalance and 5+0 settings of Miller’s fluid pan and tilt drag.

This powerhouse is capable of handling payloads up to 14.0 kg (30.9 lbs) with ease, while providing 60mm of camera plate travel for unmatched precision in every shot.

Paired with the 2-stage Solo-Q carbon fibre tripod, the CX14 tripod system offers an unbeatable height range of 395mm to 1793mm (15.5 inches to 70.6 inches), ensuring versatility across all terrains.

Experience the ultimate combination of quality, innovation, and versatility in the lightest CX14 system package—crafted to make every moment unforgettable.

Specifications - CX14 Solo-Q 100 2 Stage Carbon Fibre

Camera Platform	Quick release

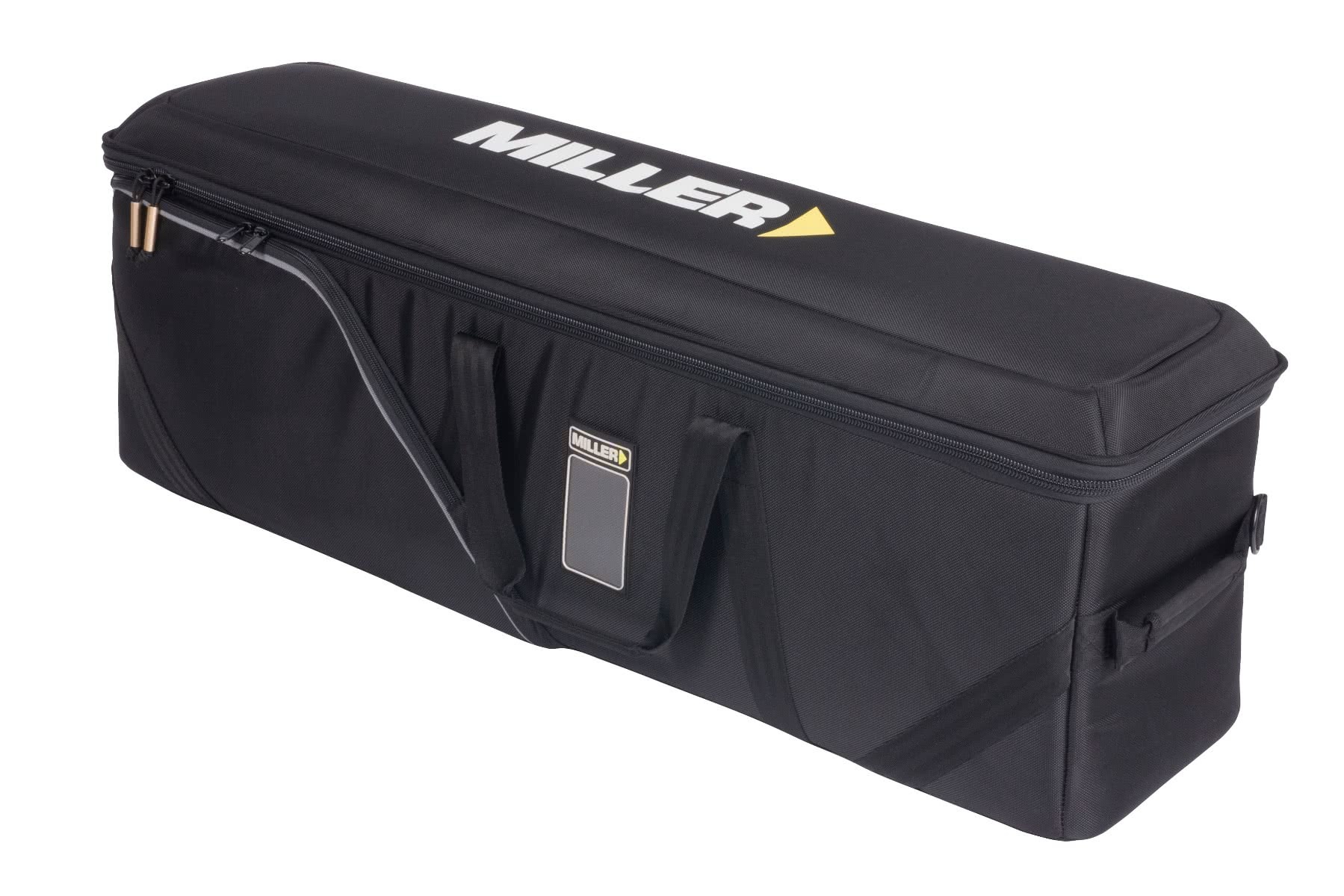

Components	1097: CX14 fluid head, 2515: Solo-Q 100 2-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3502: Arrowx softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	150mm (6.0")
Height Range	395-1793mm (15.5-70.6")
Illuminated Controls	Bubble Level
Leg Extension	2-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Fixed 390 mm (15.4”)
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-14.0 kg (0-30.9 lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	942mm (33.2")
Weight	5.7kg (12.7lbs)

2515 Solo-Q 100 2-Stage (Carbon Fibre) Data Sheet

(Size: 171.66 KB)

CX14 Product Data Sheet

(Size: 4469.85 KB)

3786 System Product Data Sheet

(Size: 131.52 KB)

Arrow Softcase Product Data Sheet

(Size: 374.41 KB)

Compatible Accessories

CAT: 679
Pan Handle Fixed With Clamp to suit CX & Compass fluid heads
CAT: 696
Pan Handle Telescopic With Clamp to suit Arrowx fluid heads
CAT: 1205
Miller Camera Plate to suit suit AIR, DS10, DS20, Compass and CompassX fluid heads
CAT: 1207
Miller Camera Plate-Long to suit suit AIR, DS10, DS20, Compass and CompassX fluid heads
CAT: 394
Solo Dolly to suit all Solo tripods
CAT: 1255
Accessory Mounting Block Kit CX to suit CXVPlus, CXV, CX & Compass fluid heads
CAT: 493
1/4″ Screw and Pin Carriage to suit all camera plate with 1/4" screw & pin carriage
CAT: 1209
Miller Camera Plate-Short to suit suit AIR, DS10, DS20, Compass and CompassX fluid heads
CAT: 1590
D36 Solo Leg Cover Set Of 3 to suit all Solo tripods
