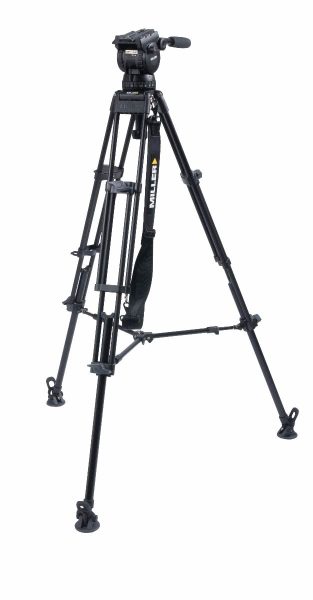

The 3770 CX14 Toggle 2 stage (alloy) tripod system combines the award-winning CX14 fluid head with the cost-effective yet speedy 100mm 402 Toggle tripod featuring an above-ground spreader. The CX14 Toggle 2 stage tripod system can balance a range of cameras, from broadcast setups to DSLRs, thanks to CB Plus™ technology and Miller’s precision fluid drag system.

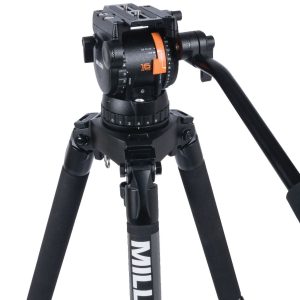

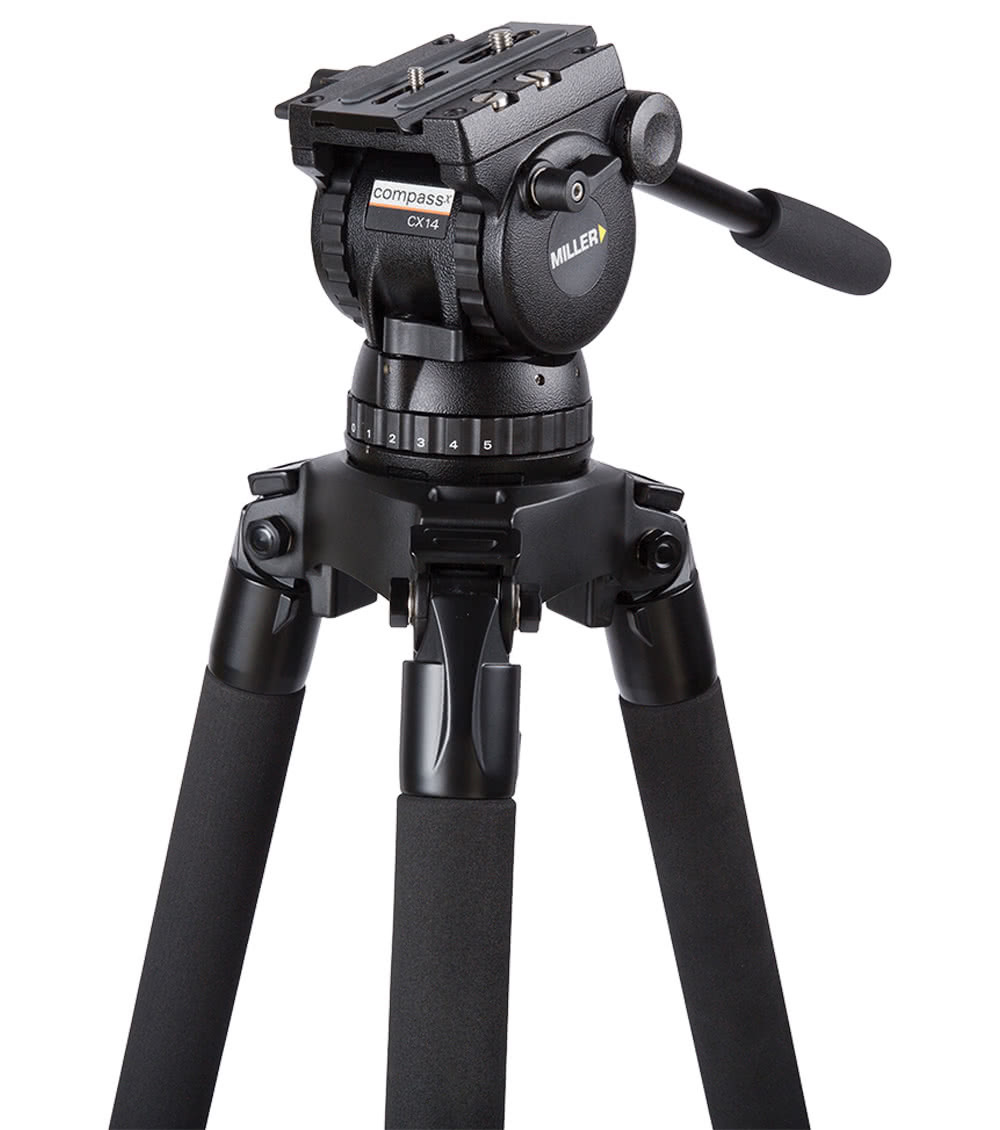

The CX14 fluid head employs CB Plus™ technology, providing 16 positions of counterbalance and 5+0 settings of Miller’s fluid pan and tilt drag. It is perfect for payloads ranging from 0 to 14.0 kg (0 – 30.9 lbs) and offers 60mm of camera plate travel, allowing you to match your camera configuration to any shot with precision.
Matched with the 2-stage Toggle (alloy) tripod and an above-ground spreader, the system offers a large height range of 553-1723mm (22-68″). It features positive leg toggle locks, providing stability and versatility across all terrains.
In conclusion, the CX14 Toggle 2 stage tripod system is an exceptional choice for professional videographers who need a reliable, adaptable, and high-performance tripod solution for various filming conditions.
Quick release

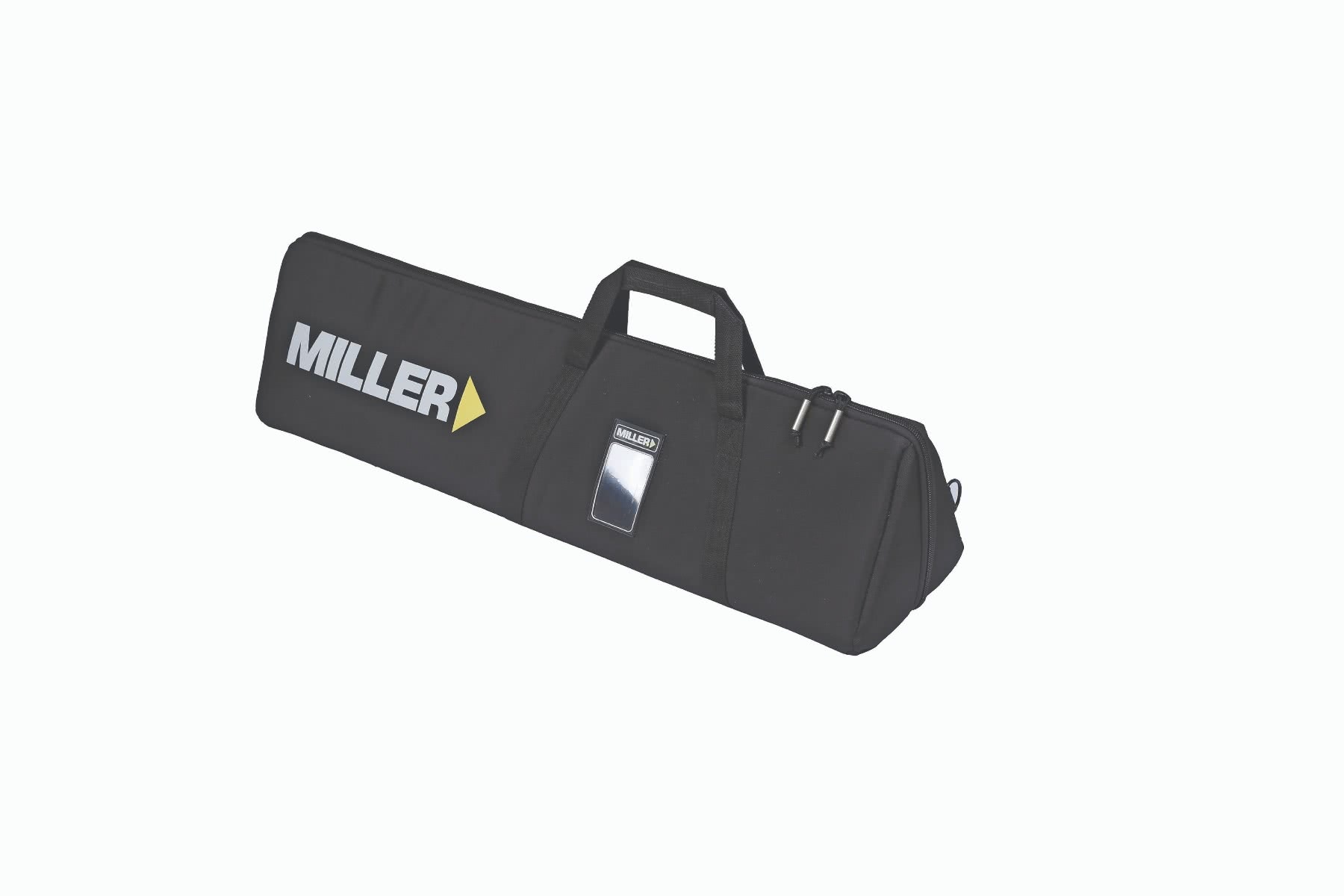

1097CX14 fluid head 402Toggle 2-stage tripod (alloy) 508Above ground spreader 550Rubber feet (set of 3) 679Pan handle – fixed with clamp 554Shoulder strap (padded) 3514Softcase 2-stage
16 selectable positions (15+0)
150mm (6.0")
553-1723mm (22-68")
Bubble Level
2-stage
Alloy
Toggle
Ø100mm (3.9") ball levelling
Fixed 390 mm (15.4”)
360°
5 selectable fluid drag positions + 0
Positive lock calliper brake system
0-14.0 kg (0-30.9 lbs)
60mm (2.4")
-40° to +65°C (-40° to +150°F)
+ 90°/ -75°
843mm (33.2”)
6.9kg (15.2lbs)
