CAT: 3769

CX14 Toggle 2 Stage Alloy

Compare
  • Compact, lightweight and versatile.
  • 100mm bowl levelling.
  • Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
  • 5+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with on ground spreader.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

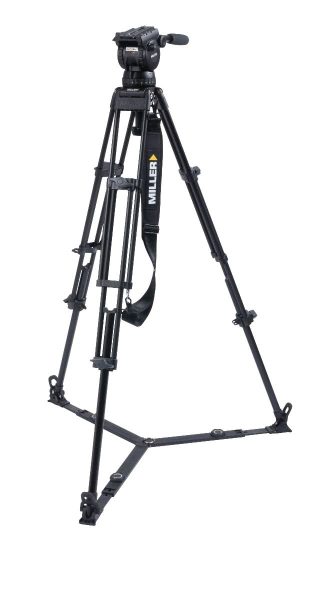

The 3769 CX14 Toggle 2 Stage Alloy tripod system is the perfect blend of stability, versatility, and affordability, designed to meet the needs of both professional and enthusiast videographers. The CX14 Toggle 2 Stage Alloy tripod system pairs the award-winning CX14 fluid head with the lightweight and cost-effective 100mm 402G Toggle tripod, featuring a reliable ground spreader for enhanced stability.

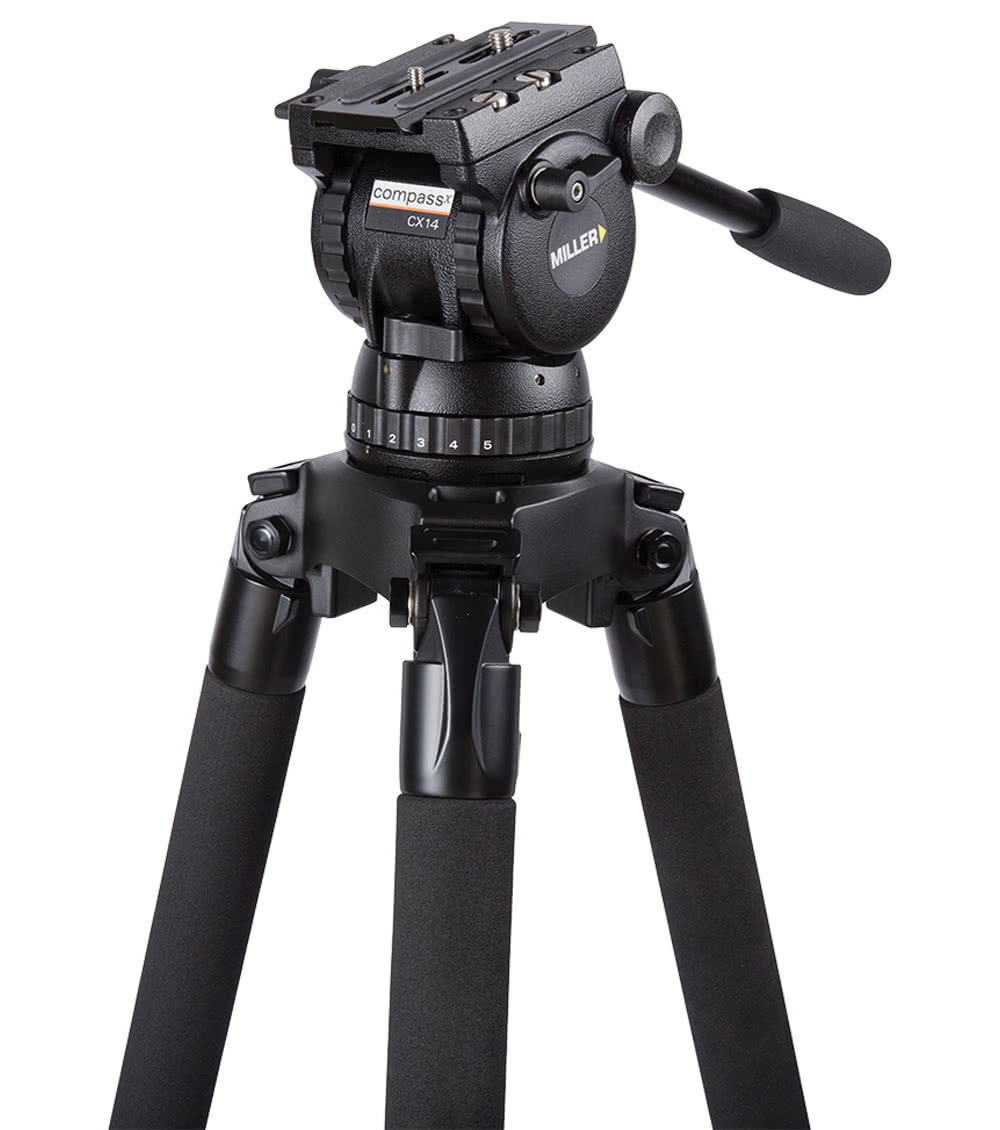

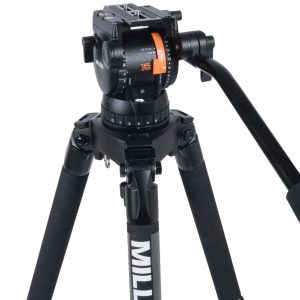

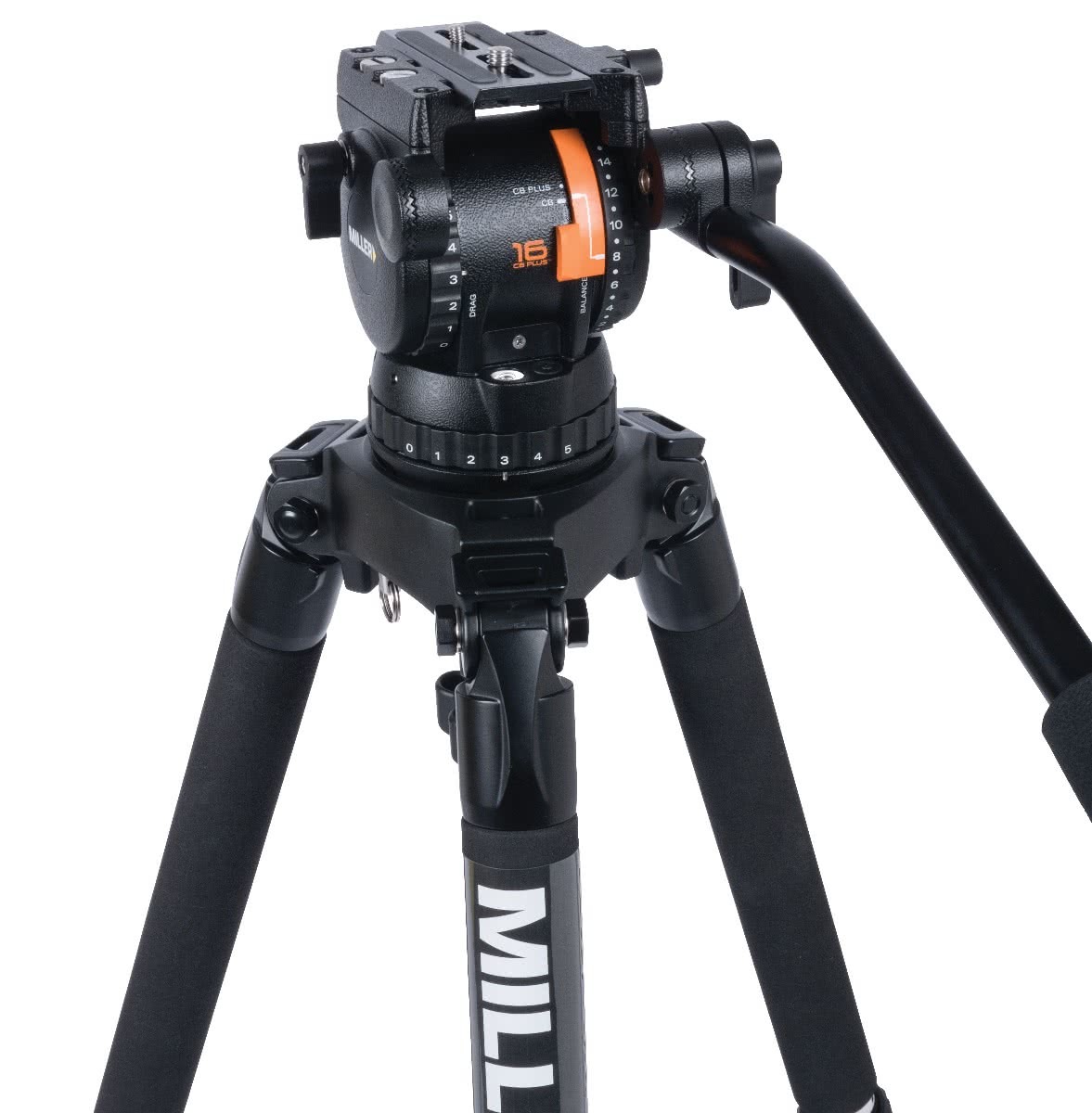

The CX14 fluid head employs advanced CB Plus™ technology, providing 16 positions of counterbalance and 5+0 settings of Miller’s fluid pan and tilt drag. It is ideal for supporting payloads from 0 to 14.0 kg (0 – 30.9 lbs) and offers 60mm of camera plate travel, ensuring you can perfectly balance and configure your camera for any shot.

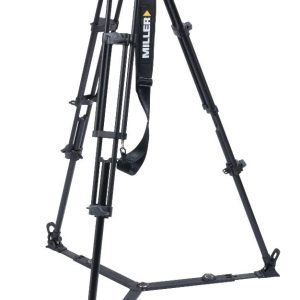

When combined with the 2-stage Toggle alloy tripod and an on-ground spreader, the system provides a substantial height range of 553-1723mm (22-68″). The tripod features positive leg toggle locks, ensuring quick and secure setup, and offers the versatility needed to perform across all terrains.

In conclusion, the CX14 Toggle 2 Stage Alloy system is your go-to solution for achieving professional-grade stability and smooth camera movements. With its superior technology and versatile design, this tripod system empowers you to capture stunning visuals with confidence, whether you’re in the studio or out in the field. Invest in the CX14 Toggle 2 Stage Alloy tripod system and elevate your videography to new heights.

Specifications - CX14 Toggle 2 Stage Alloy

Camera Platform

Quick release

Components

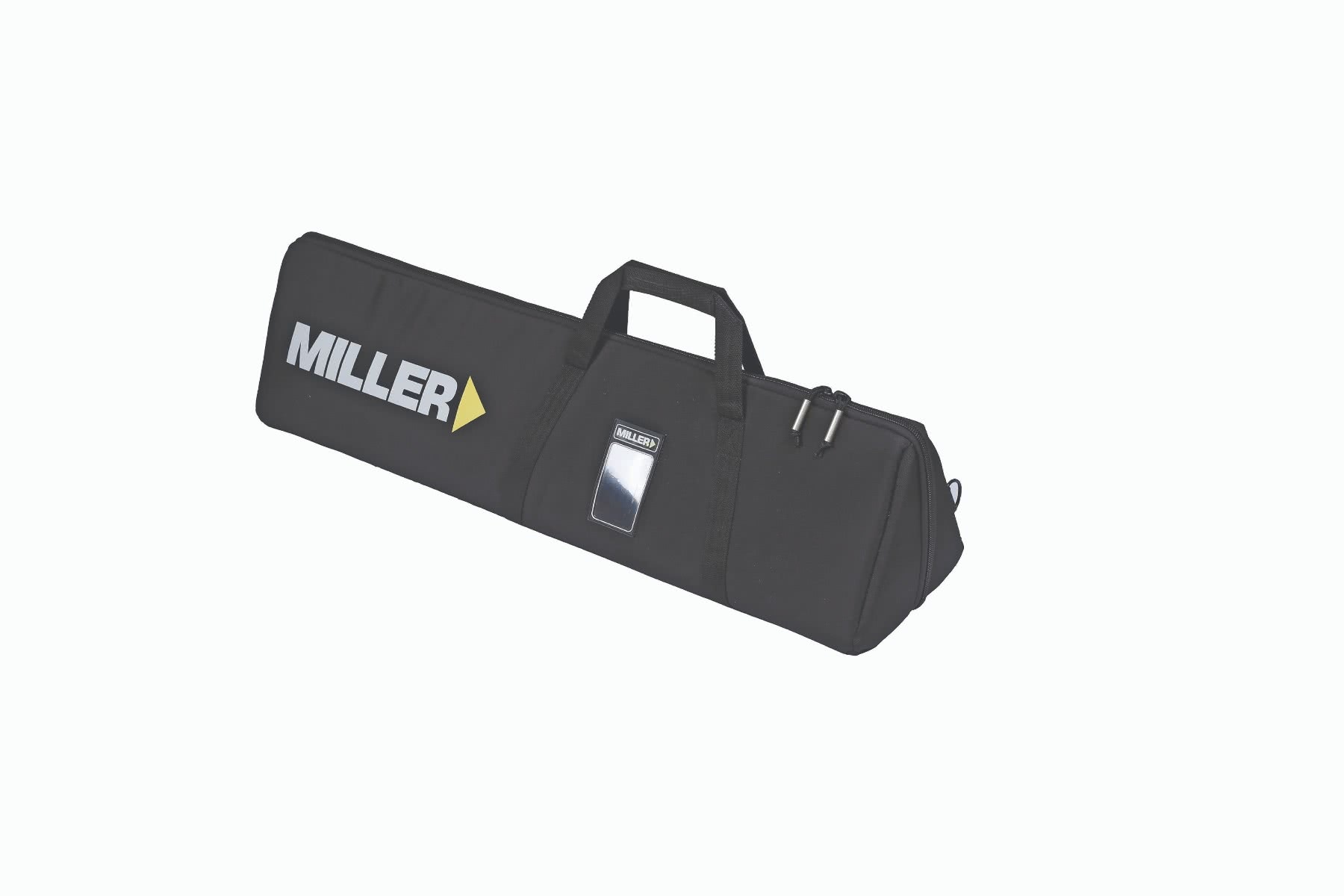

1097: CX14 fluid head, 402G: Toggle 2-stage tripod (alloy), 411: On ground spreader, 679: Pan handle – fixed with clamp, 554: Shoulder strap (padded), 3514: Softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

150mm (6.0")

Height Range

553-1723mm (22-68")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø100mm (3.9") ball levelling

Pan Handle

Fixed 390 mm (15.4”)

Pan Range

360°

Pan Tilt Drag

5 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

0-14.0 kg (0-30.9 lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

843mm (33.2”)

Weight

6.9kg (15.2lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041002822
