CAT: 3017

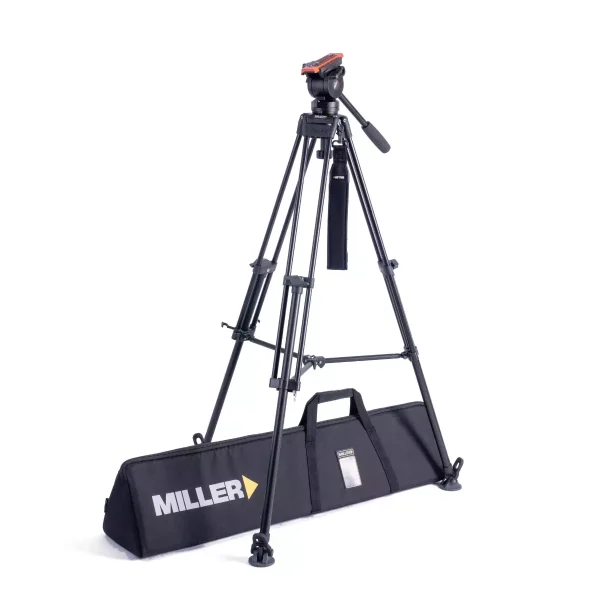

AiRV+ Toggle LW alloy tripod, above ground spreader and soft case

Lightweight travel companion for payloads up to 5kg (11lbs). Compare

Side loading, quick release Versa plate, with 100mm of balance travel.
• Consistent fluid drag performance in extreme environments.
• Versa, quick release, side load camera plate compatible with Manfrotto 501 plate, Kondor Blue ARCA/Pivot, DJI QR, SmallRig QR
• 2 selectable positions of counterbalance.
• Perfect for camera payloads to 2-5kg 4.4-11lbs .
• Integrated 75mm bowl.
• 1-stage fast toggle adjustment legs.
• Durable black anodised alloy tubing.
• Comes with above ground spreader and rubber feet.

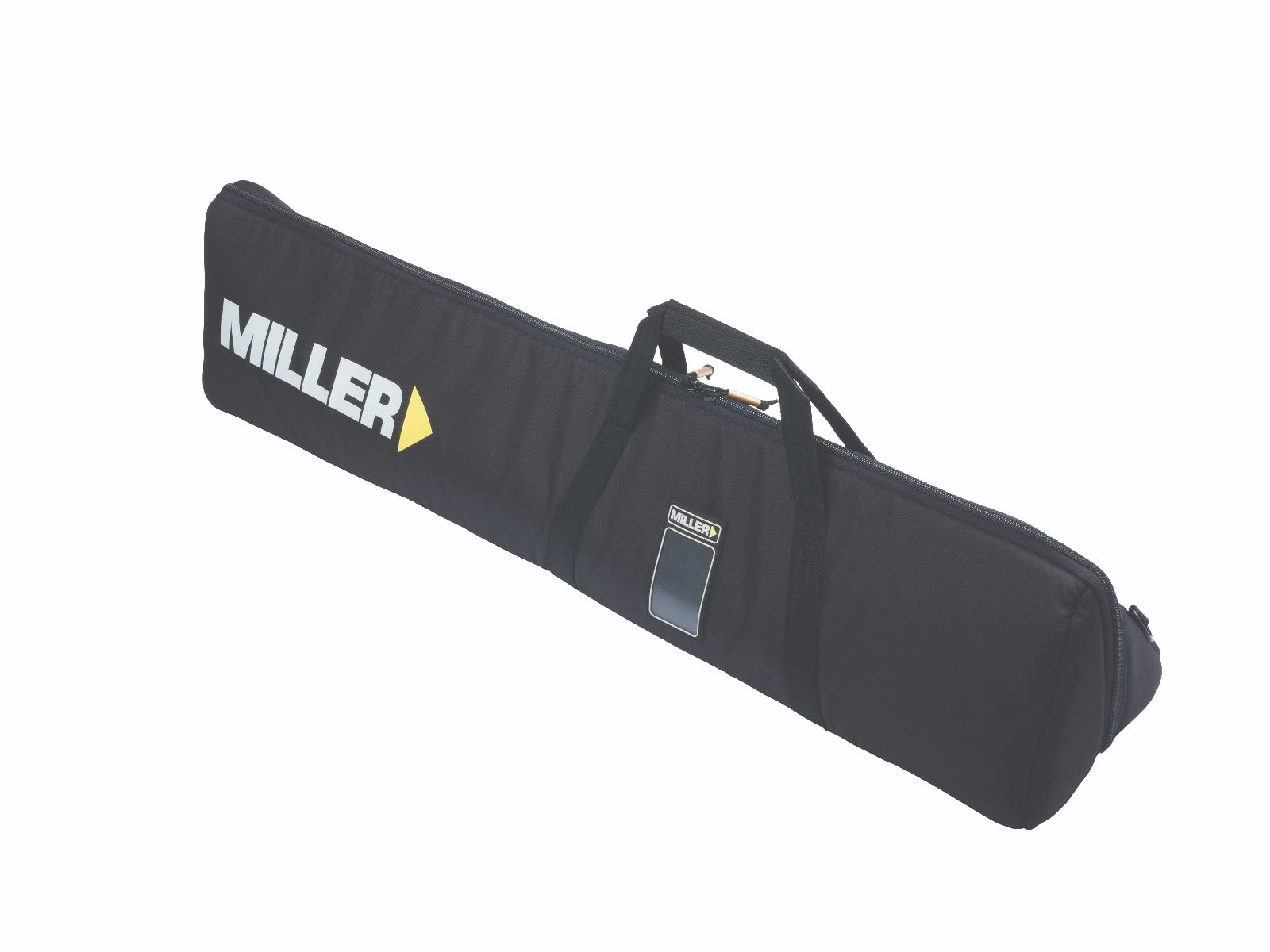

• Comes with 1-stage tripod bag.
• 3 year warranty.

From your nearest dealer

The 3017 AiRV+ Toggle system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 100mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AiRV+ will always impress. The AiRV+ head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can easily serviced.

The AiRV+ Toggle LW tripod alloy with above ground spreader makes for the most traditional AiRV+ system in the AiRV+ range, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.

Specifications - AiRV+ Toggle LW alloy tripod, above ground spreader and soft case

Camera Platform

Quick release, side load Versa camera plate

Components

1044: AIRV fluid head, 440: Toggle 75 LW tripod (alloy), 682: Pan handle – fixed with clamp, 835: DS tripod spreader, 550: Rubber feet (set of 3), 554: Shoulder strap (padded), 3512: Softcase 1-stage

Counterbalance Positions

2 selectable positions

Height Above Bowl

146mm (5.7")

Height Range

757-1467mm (29.8-57.6" )

Leg Extension

1-stage

Leg Material

Alloy

Lock Type

Toggle

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

Fixed

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

2-5kg (4.4-11.0lbs )

Sliding Range

100mm (3.93")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

967mm (38.1")

Weight

5kg (11.1lbs )

EAN | UPC | GTIN 9354041003669
