CAT: 3715

CX2 75 Sprinter II 2 Stage Carbon Fibre

Compare
  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage dual action lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

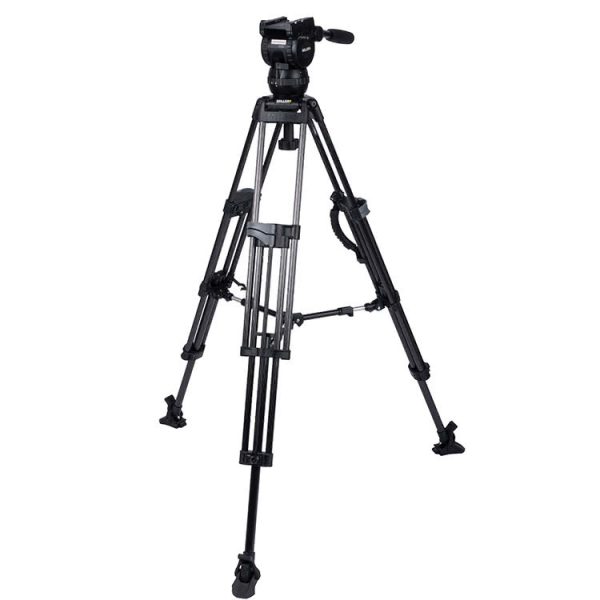

The 3715 CX2 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620 75 Sprinter II tripod and CX2 fluid head for fast and easy set-ups. CX2 75 Sprinter II 2 is designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.

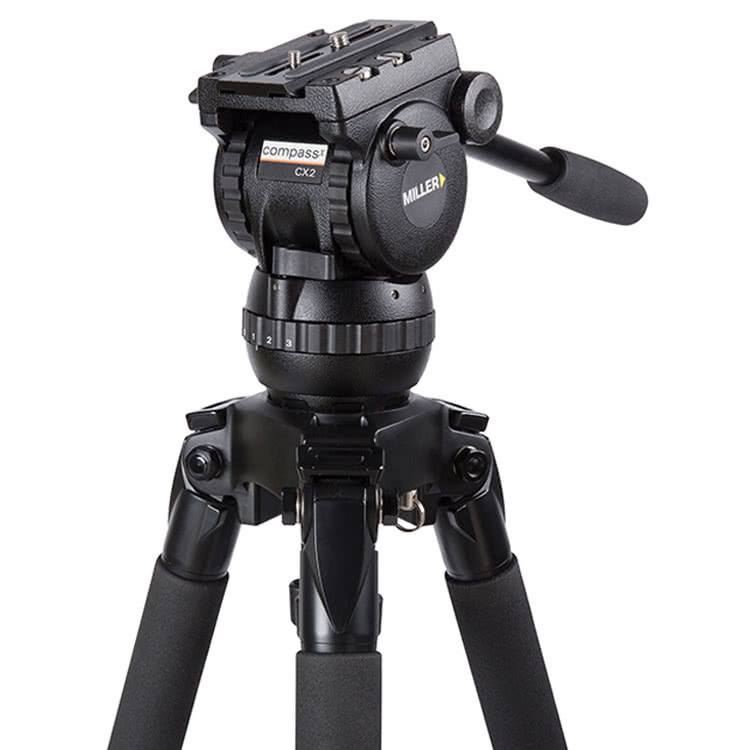

The CX2 fluid head employs CB Plus technology providing 16 positions of counterbalance, 3+0 settings of Miller’s fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

The CX2 is matched with the 2 stage 75 Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.

Specifications - CX2 75 Sprinter II 2 Stage Carbon Fibre

Camera Platform

Quick release

Components

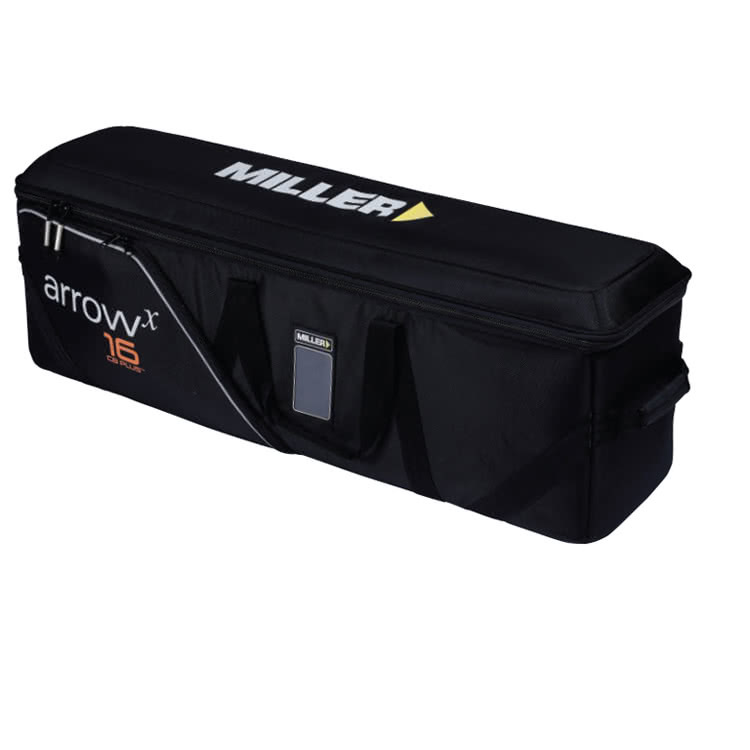

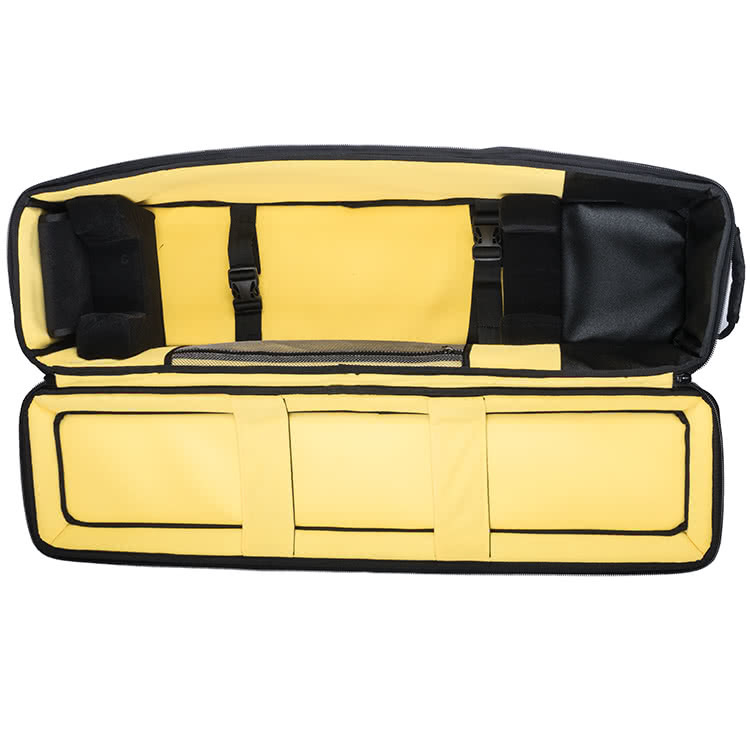

1090: CX2 fluid head, 1620: 75 Sprinter II 2-stage tripod (carbon fibre), 593: Basic Mid-level spreader, 475: Rubber feet (set of 3), 679: Pan handle – fixed with clamp, 3502: Arrowx softcase 2-stage

Counterbalance Positions

16 selectable positions (15+0)

Height Above Bowl

167mm (6.6")

Height Range

767-1697mm (30.2-66.8")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Carbon fibre

Lock Type

HS Dual Action

Mounting Base

Ø75mm (2.9") ball levelling

Pan Handle

Fixed length 390mm (15.4")

Pan Range

360°

Pan Tilt Drag

3 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock caliper brake system

Payload Range

0-8kg (0-17.6lbs)

Sliding Range

60mm (2.4")

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

867mm (34.1”)

Weight

6.5kg (14.3lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041002389
