CAT: 1078

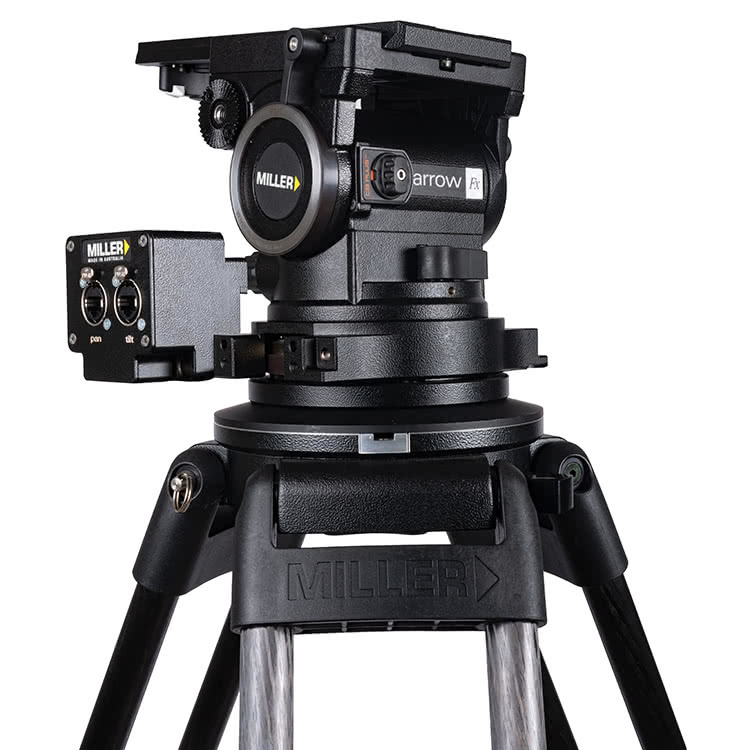

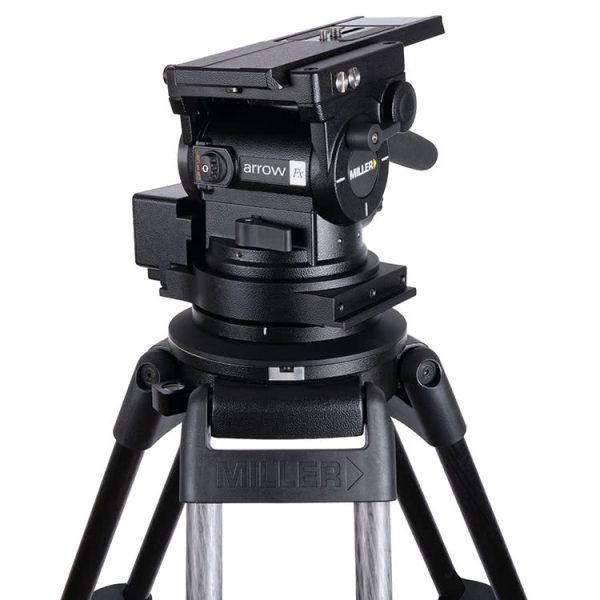

Arrow FX 3 Fluid Head

Pan & Tilt Head With Positional Data Compare

Ideal for remote pan bar systems.
Pan resolution 1.6 million counts per rev.
Tilt resolution 1.0 million counts per rev.
Removeable encoder housing.
Wide payload range 1-19kg (2.2 – 41.8lbs).
5 selectable drag positions (pan and tilt) + 0.
16 position CB PlusTM counterbalance system.
Quick release, 120mm sliding camera platform with standard camera plate (euro).
Modular base allows for D100 bowl (incl.) or D150 bowl (opt.) Mitchell base (Opt.) (pictured).
Optional second pan handle mount.
Side mounting points for viewfinders and accessories.

Make a Sales Enquiry

From your nearest dealer

The Arrow FX 3 offers precise pan and tilt coordination with separated outputs, ideal for augmented visual effects in broadcast and production. Designed to accommodate a variety of cameras, lenses, and accessories, it suits ENG, EFP, Studio, and Field OB setups.

With its robust construction, including a precision ball bearing mounted fluid drag plate system, the Arrow FX 3 ensures stability, accuracy, and durability across temperature and payload ranges.

Its fluid drag and counterbalance systems provide excellent control and repeatability, with progressive increments for smooth adjustments. The illuminated single control location streamlines operation for pan-tilt, counterbalance, and viewing bubble level.

The Arrow FX 3 is a reliable and versatile fluid head, tailored to the demanding requirements of broadcast and production professionals.

CAT# – 1078

Specifications - Arrow FX 3 Fluid Head

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Illuminated Controls	Bubble Level
Mounting Base	Ø100mm (3.9") ball levelling (std.) Ø150mm (5.9") ball levelling (opt.) Mitchell Base (opt.)
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock caliper brake system
Payload Range	1-19kg (2.2-41.8lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Weight	4.8kg (10.5lbs)

1078 Arrow FX 3 Fluid Head Data Sheet

(Size: 794.48 KB)

Arrow FX Operator's Manual

(Size: 3905.12 KB)

Fluid Head Accessories Product Data Sheet

(Size: 1566.95 KB)

Compatible Accessories

CAT: 1260
Accessory Mounting Block ArrowX to suit AX & Arrow fluid heads
CAT: 1240
Tele Handle Rod/Clamp to suit SkyX 8 & CiNX 8 fluid heads
CAT: 1296
Ø150 Claw Ball Level to suit ArtX, ArrowFX, SkyX, SFX9, CiNX fluid heads
CAT: 696
Pan Handle Telescopic With Clamp to suit Arrowx fluid heads
CAT: 1225
Mitchell base Adaptor With Clamp to suit Arrowx, Skyline 70 & Cineline 70, CiNX 8 & SkyX 8 fluid heads

EAN | UPC | GTIN 9354041002150
