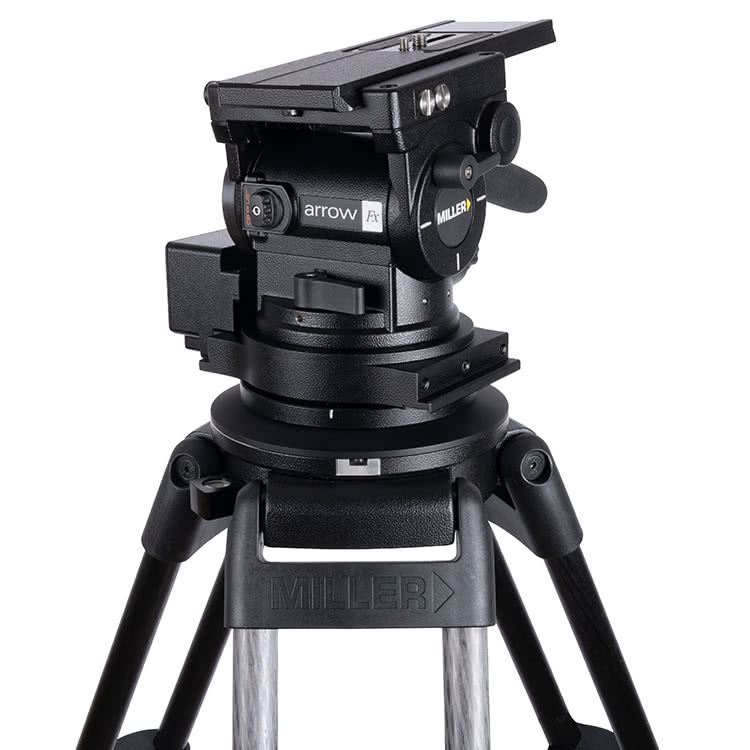

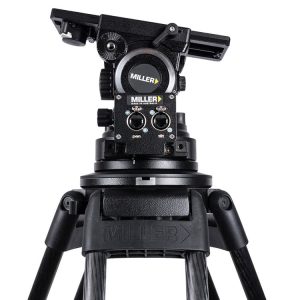

Arrow FX 5 Fluid Head

Compare

Designed for AR/VR systems.
Pan resolution 1.6 million counts per rev.
Tilt resolution 1.0 million counts per rev.

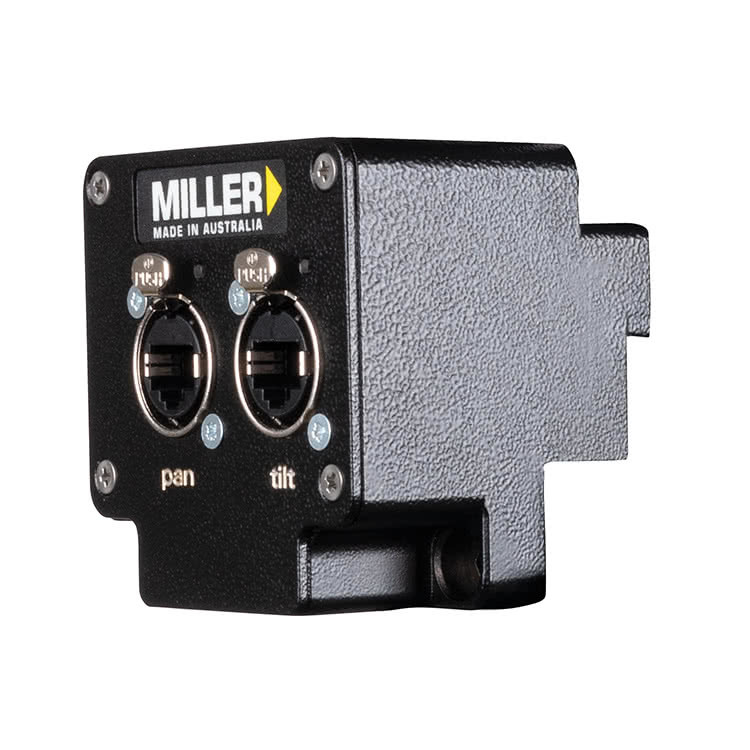

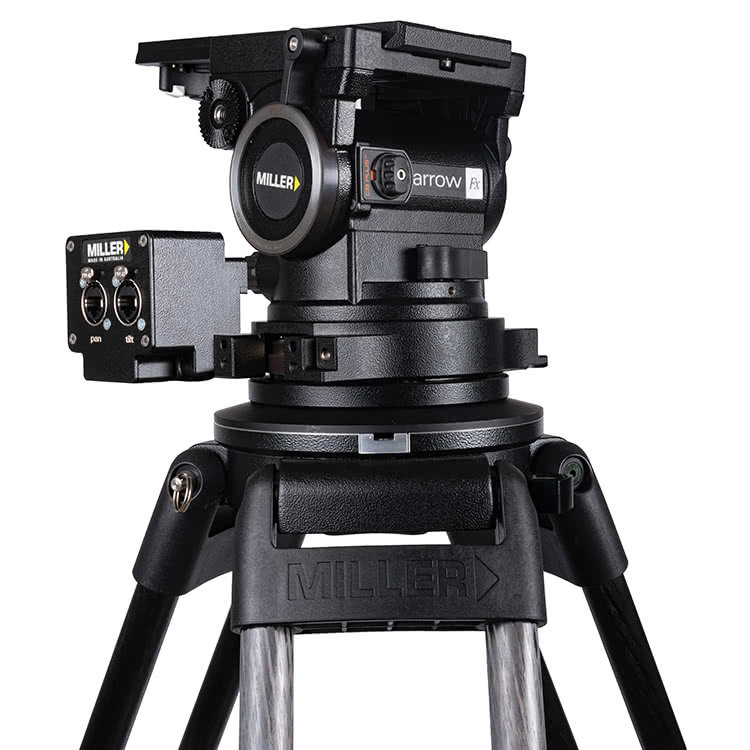

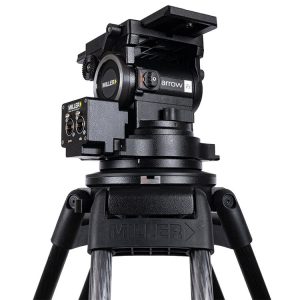

Removeable encoder housing.
Wide payload range 2-21kg (4.4-46.2lbs).
7 selectable drag positions (pan and tilt) + 0.

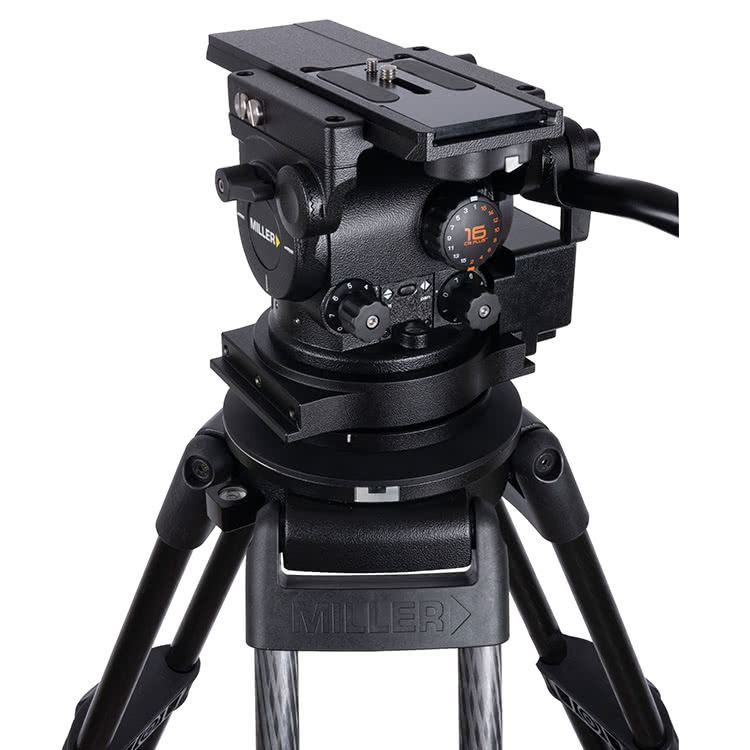

16 position CB PlusTM counterbalance system.
Quick release, 120mm sliding camera platform with standard camera plate (euro).
Modular base allows for D100 bowl (incl.) or D150 bowl (opt.) Mitchell base (Opt.) (pictured).
Optional second pan handle mount.
Side mounting points for viewfinders and accessories.

Make a Sales Enquiry

From your nearest dealer

The Arrow FX 5 offers precise pan and tilt coordination with separated outputs, enhancing visual effects in broadcast and production. Designed for ENG, EFP, Studio, and Field OB setups, it accommodates a wide range of cameras, lenses, and accessories.

Built with robust construction, the Arrow FX 5 fluid head ensures maximum stability, accuracy, and durability. Its precision ball bearing mounted fluid drag plate system provides consistent fluid drag performance across temperature and payload variations.

The fluid drag and counterbalance system of the Arrow FX 5 offer excellent control and repeatability, featuring progressive increments of drag and torque.

Additionally, its illuminated single control location simplifies operation for pan-tilt, counterbalance, and viewing bubble level adjustments.

The Arrow FX 5 is a reliable and versatile choice for broadcast and production professionals, delivering precision and performance in demanding environments.

CAT# – 1080

Specifications - Arrow FX 5 Fluid Head

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Illuminated Controls	Bubble Level
Mounting Base	Ø100mm (3.9") ball levelling (std.) Ø150mm (5.9") ball levelling (opt.) Mitchell Base (opt.)
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock caliper brake system
Payload Range	2-21kg (4.4-46.2lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Weight	5.1kg (11.2lbs)

1080 Arrow FX 5 Fluid Head Data Sheet

(Size: 890.75 KB)

Arrow FX Operator's Manual

(Size: 3905.12 KB)

Fluid Head Accessories Product Data Sheet

(Size: 1566.95 KB)
