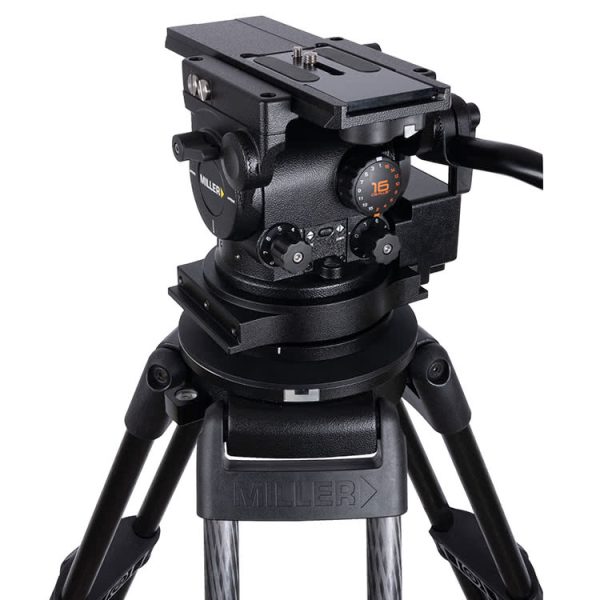

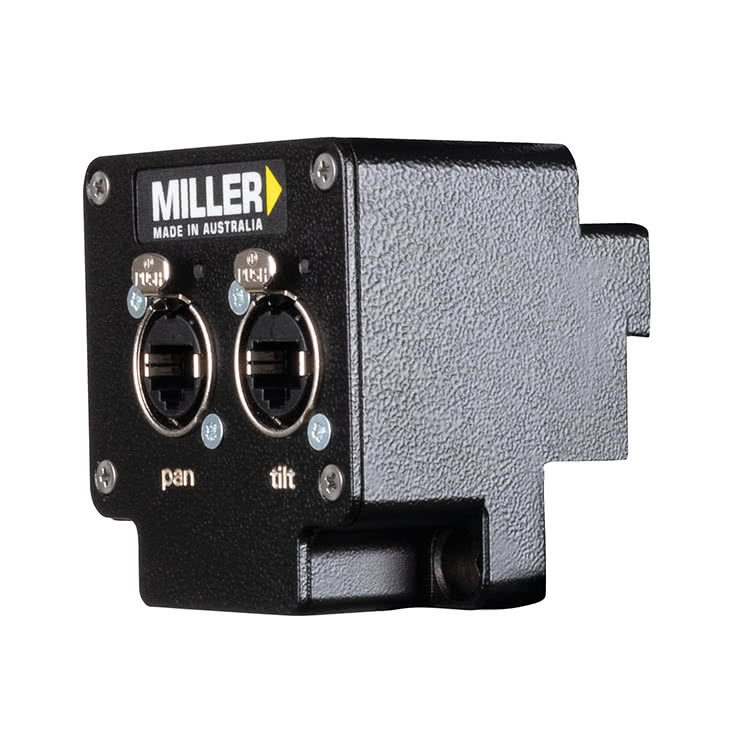

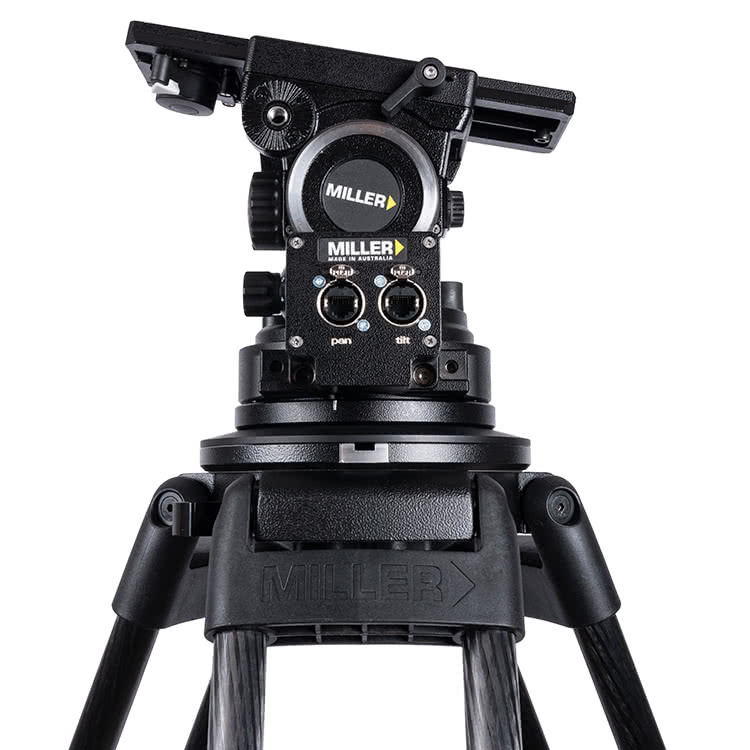

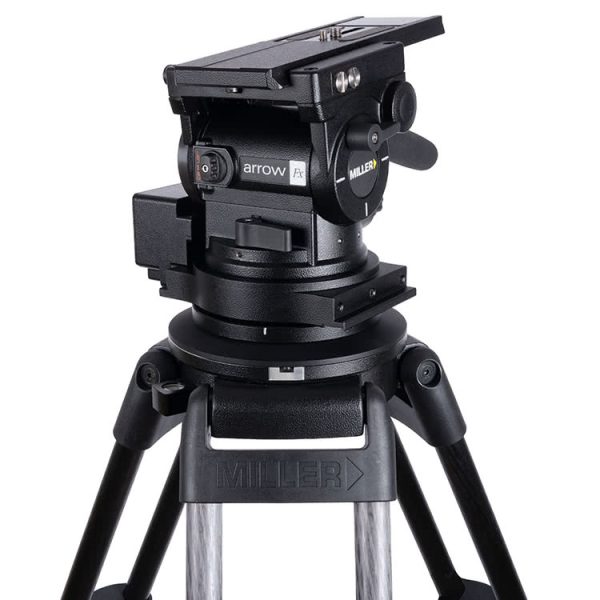

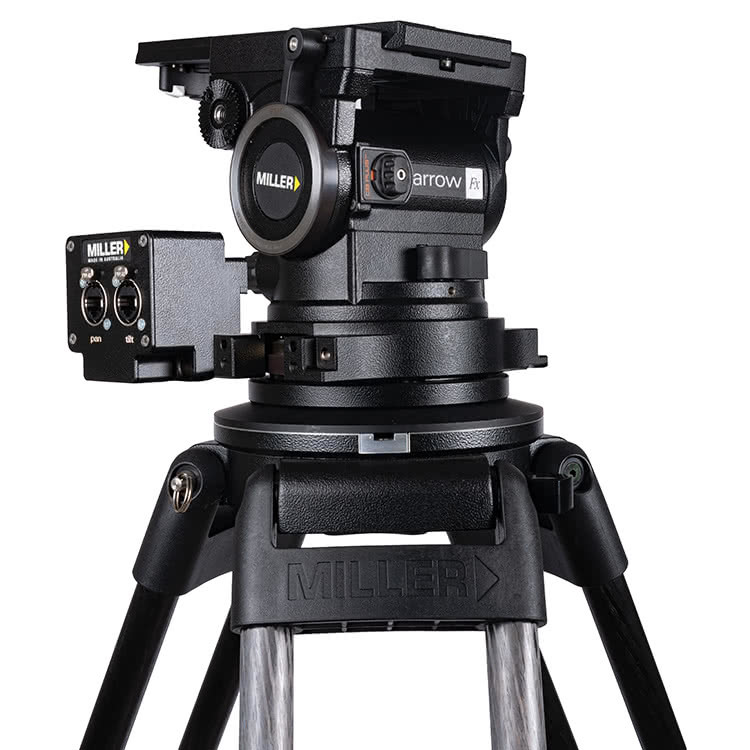

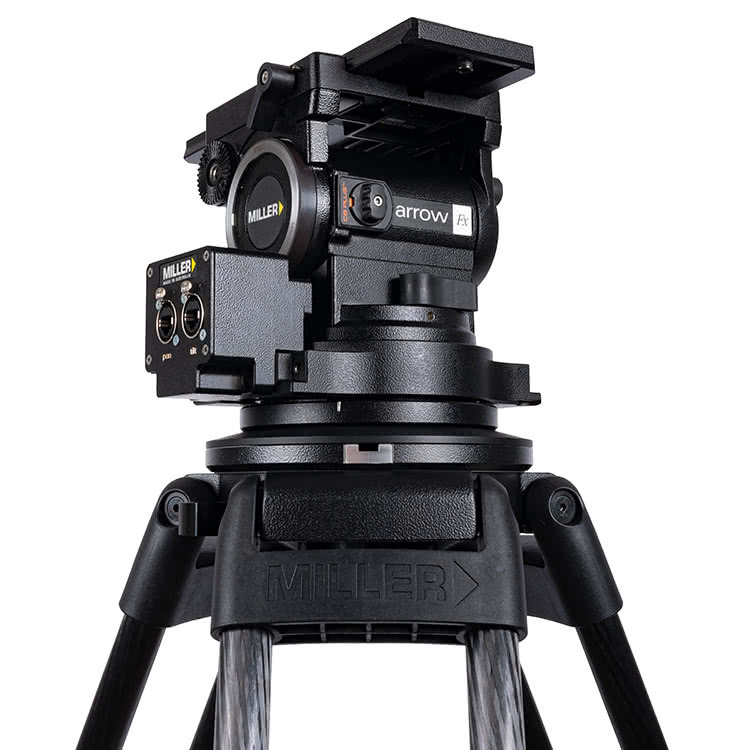

The Arrow FX 7 provides the user precise pan and tilt coordinates through separated (pan and tilt) outputs. These outputs can be coupled with other equipment data to provide augmented visual effects during broadcast and production.
The Arrow FX 7 has been designed to suit a wide range of cameras, lenses and accessories as demanded by ENG, EFP, Studio and Field OB setups.
The robust design and construction of the Arrow FX 7 fluid head offers maximum stability, accuracy and durability and includes precision ball bearing mounted fluid drag plate system in the pan and tilt assembly to deliver true fluid drag performance over the entire temperature and payload range.
The fluid drag and the counterbalance system were designed to provide excellent control and repeatability and offer progressive equal increments of drag and torque.
The Arrow FX 7 fluid head also offers illuminated single control location for operating pan-tilt, counterbalance and viewing bubble level.
CAT# – 1082
Quick release camera plate (Euro)
16 selectable positions
Bubble Level
Ø100mm (3.9") ball levelling (std.) Ø150mm (5.9") ball levelling (opt.) Mitchell Base (opt.)
Telescopic 390-590mm (15.4-23.2")
360°
7 selectable fluid drag positions + 0
Positive lock caliper brake system
6-25kg (13.2-55.1lbs)
120mm (4.7)
-40° to +65°C (-40° to +150°F)
+ 90°/ -75°
5.1kg (11.2lbs)
CAT: 696
CAT: 1240
CAT: 1225
CAT: 1296
CAT: 1260
EAN | UPC | GTIN 9354041002051
