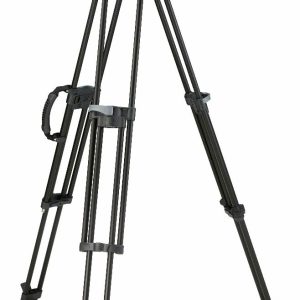

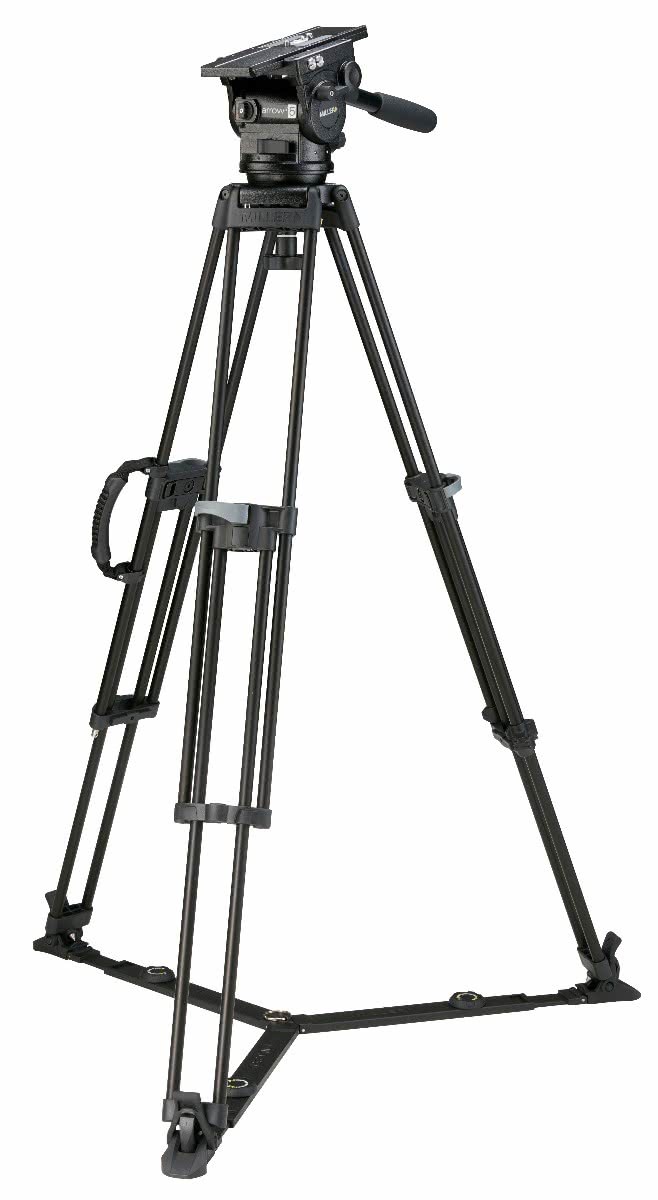

The 3092 Arrowx 5 Sprinter II 1 stage system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
2-21kg (4.4-46.2lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 5 ideal for ENG and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.
The Arrowx5 is matched with the 1 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of set up.
Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.
Quick release camera plate (Euro)
16 selectable positions
162mm (6.4")
797-1587mm (31.4-62.5")
Bubble Level
1-stage
Alloy
HS Single Action
Ø100mm (3.9") ball levelling
Telescopic 390-590mm (15.4-23.2")
360°
7 selectable fluid drag positions + 0
Positive lock calliper brake system
2.0-21.0kg (4.4-46.2lbs)
120mm (4.7)
-40° to +65°C (-40° to +149°F)
+ 90°/ -75°
1002mm (39.4")
7.8kg (17.3lbs)

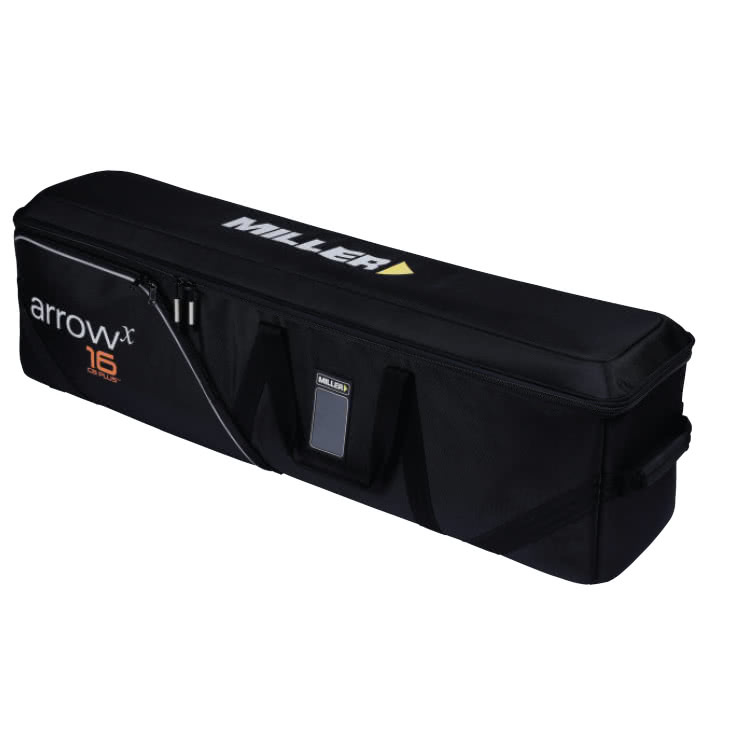

1074: Arrowx 5 fluid head, 1589G: Sprinter II 1-stage tripod (alloy), 470: On ground spreader, 696: Pan handle – telescopic with clamp, 3500: Arrowx softcase 1-stage
