CAT: 3097

Arrowx 5 Sprinter II 2 Stage Alloy

Compare

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Perfect for payloads to 2-21kg (4.4-46.2lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with mid-level spreader and rubber feet.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

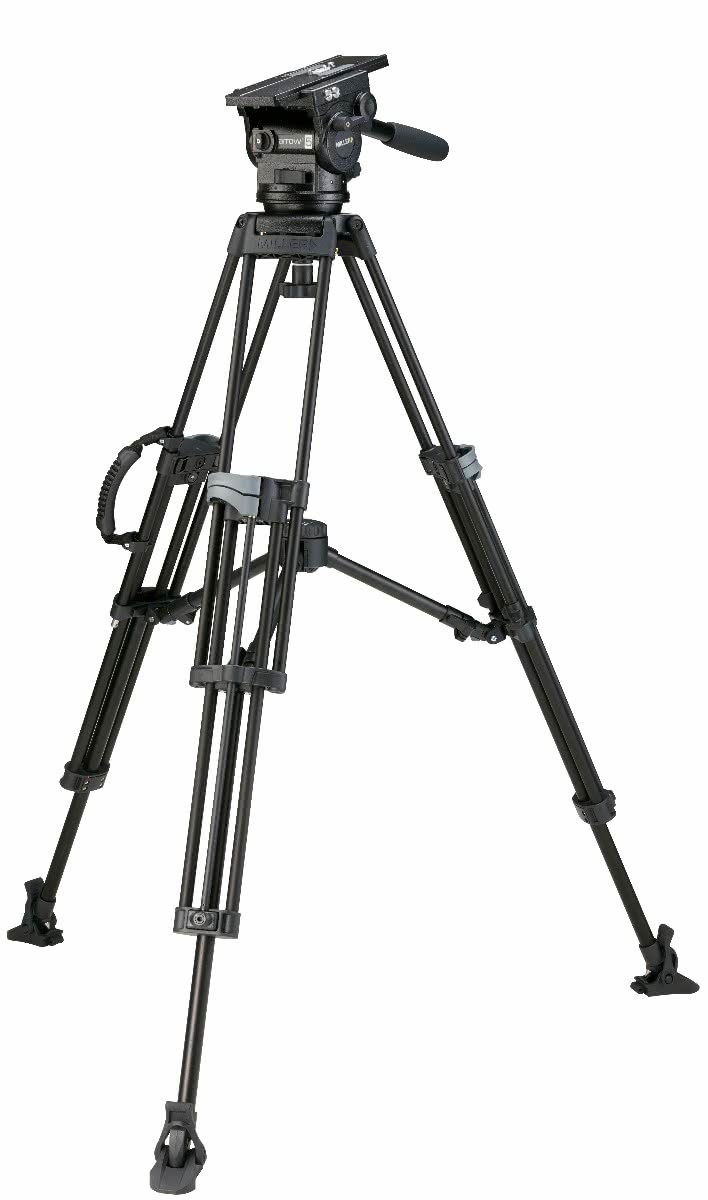

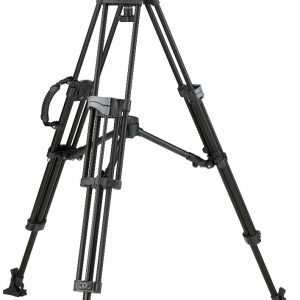

The 3097 Arrowx 5 Sprinter II 2 stage system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow^x 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

2-21kg (4.4-46.2lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make
Arrow^x 5 ideal for ENG and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.

The Arrowx 5 Sprinter II 2 stage (alloy) tripod and ground spreader to give incredible speed of set up and incredible height range.

Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.

Specifications - Arrowx 5 Sprinter II 2 Stage Alloy

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	602-1692mm (23.7-66.6")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Alloy
Lock Type	HS Dual Action
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.0-21.0kg (4.4-46.2lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	862mm (33.9")
Weight	8.8kg (19.6lbs)

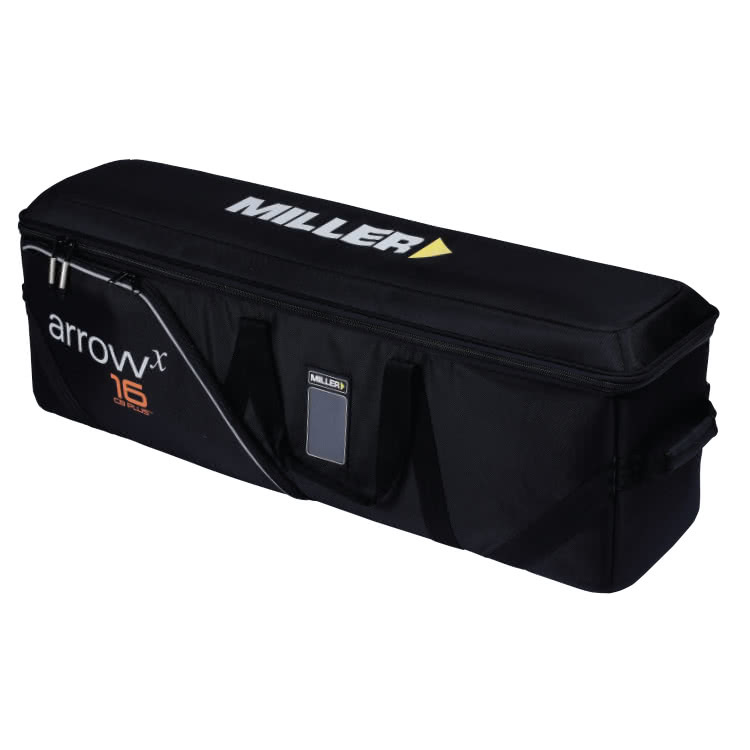

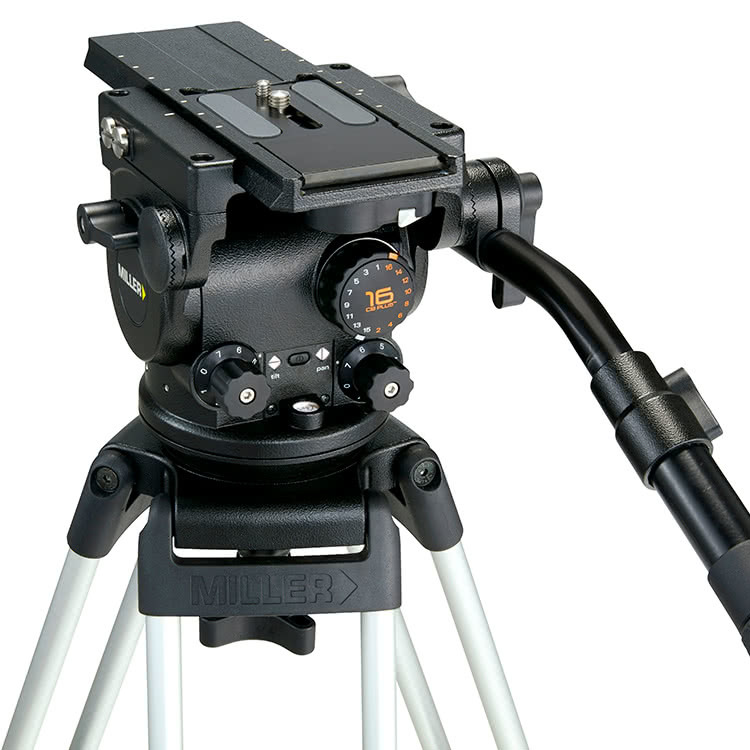

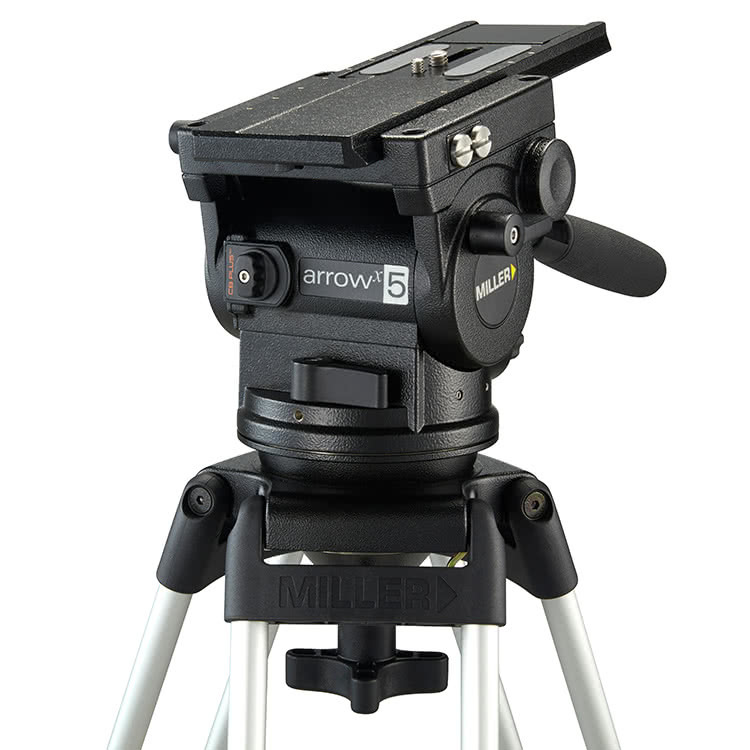

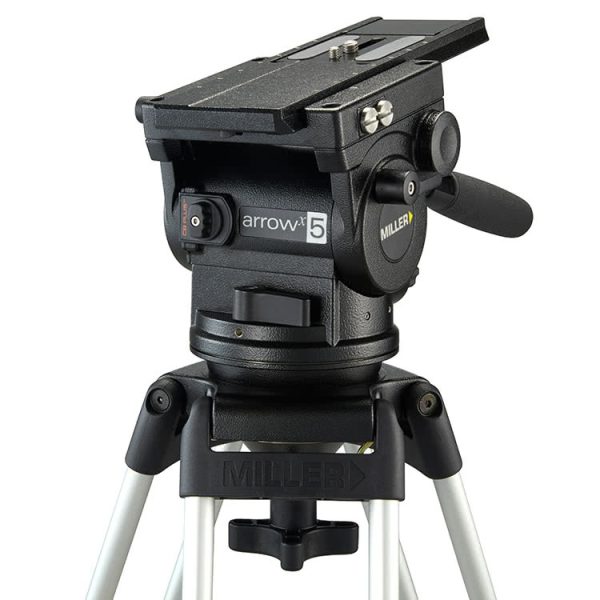

Components	1074: Arrowx 5 fluid head, 1580: Sprinter II 2-stage tripod (alloy), 993: Mid-level spreader, 475: Rubber feet (set of 3), 696: Pan handle – telescopic with clamp, 3502: Arrowx soft case 2-stage
