CAT: 3101

Arrowx 5 Sprinter II 2 Stage Carbon Fibre

Compare

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Perfect for payloads to 2-21kg (4.4-46.2lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Lightweight carbon fibre legs.
Comes with mid-level spreader and rubber feet.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

The 3101 Arrowx 5 Sprinter II 2 Stage system, fitted with mid-level spreader is designed for speed of setup, high level of stability in a lightweight package, and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow^x 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

2-21kg (4.4-46.2lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make
Arrow^x 5 ideal for ENG and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.

The Arrowx 5 Sprinter II 2 Stage (carbon fibre) tripod and mid-level spreader to give incredible speed of set up, ultra light weight, large height range and the versatility to set up on all terrain.

Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.

Specifications - Arrowx 5 Sprinter II 2 Stage Carbon Fibre

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	602-1692mm (23.7-66.6")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Carbon fibre
Lock Type	HS Dual Action
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.0-21.0kg (4.4-46.2lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	862mm (33.9")
Weight	8.2kg (18.2lbs)

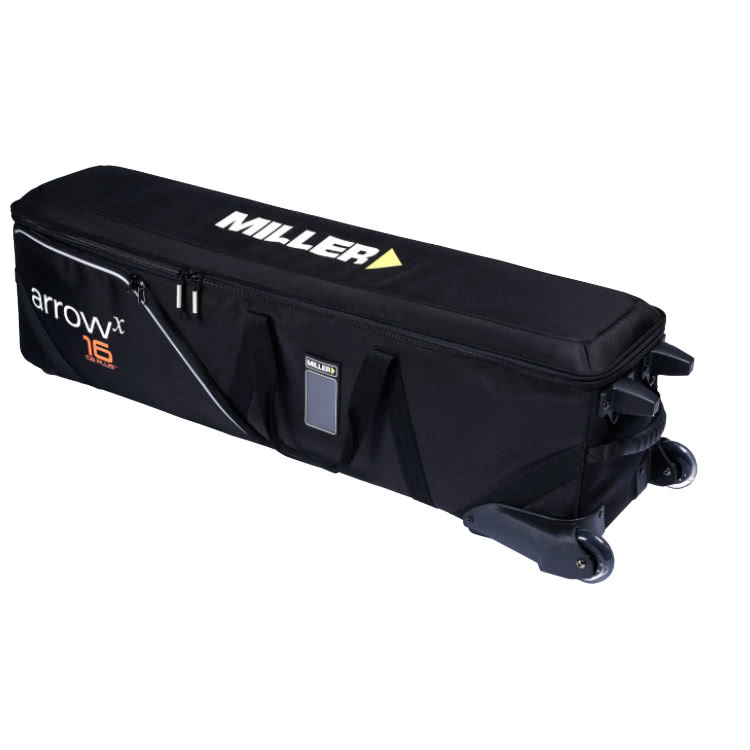

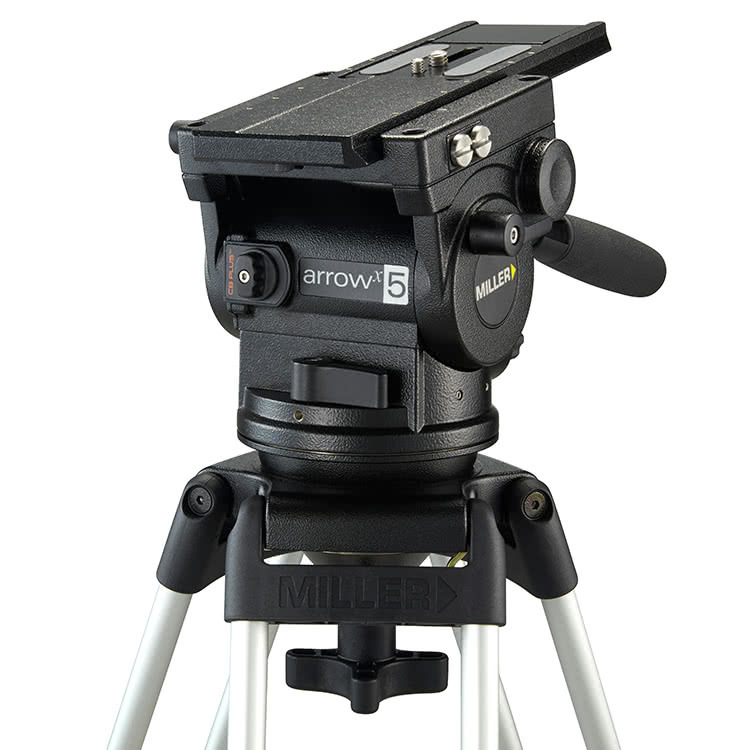

Components	1074 Arrowx 5 fluid head, 1576 Sprinter II 2-stage tripod (carbon fibre), 993 Mid-level spreader, 475 Rubber feet (set of 3), 696 Pan handle – telescopic with clamp, 3534 Arrowx shell case on wheels
