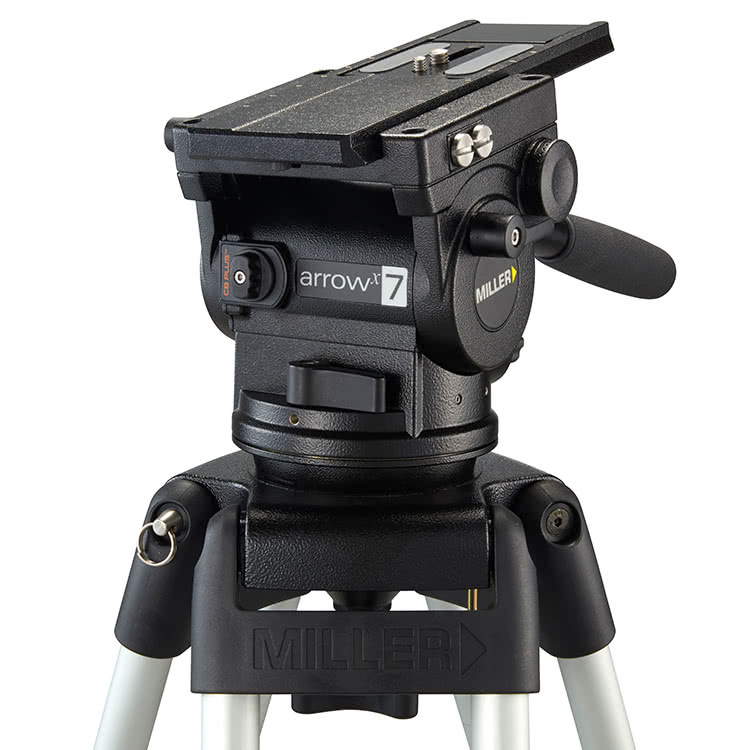

Arrowx 7 Fluid Head

The heavy duty performer Compare
  • Compact, lightweight and versatile.
  • 7 selectable positions of fluid pan and tilt drag +0.
  • 16 position CB Plus™ counterbalance system.
  • Wide payload range 6-25kg (13.2-55.1lbs).
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
  • Controls “all in one location” design for fast easy and practical use.
  • Illuminated bubble level and pan-tilt drag controls.
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.

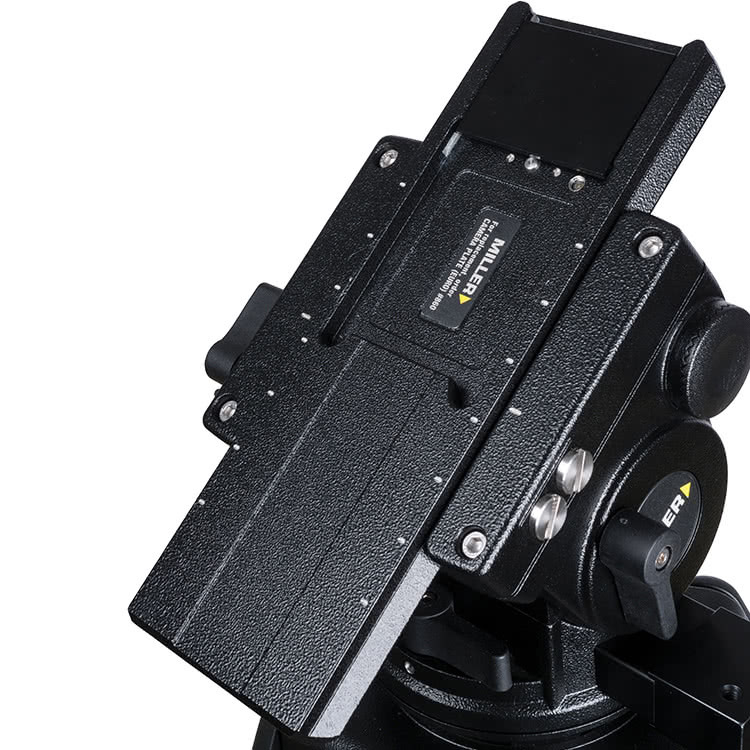

  • Quick release, 120mm sliding camera platform with camera plate (euro).
  • Removable ball level stud allows for flat base mounting with 3/8” screw thread.
  • Mitchell base adaptable.
  • Robust construction for rugged outdoor shooting conditions.
  • Optional second pan handle mount.

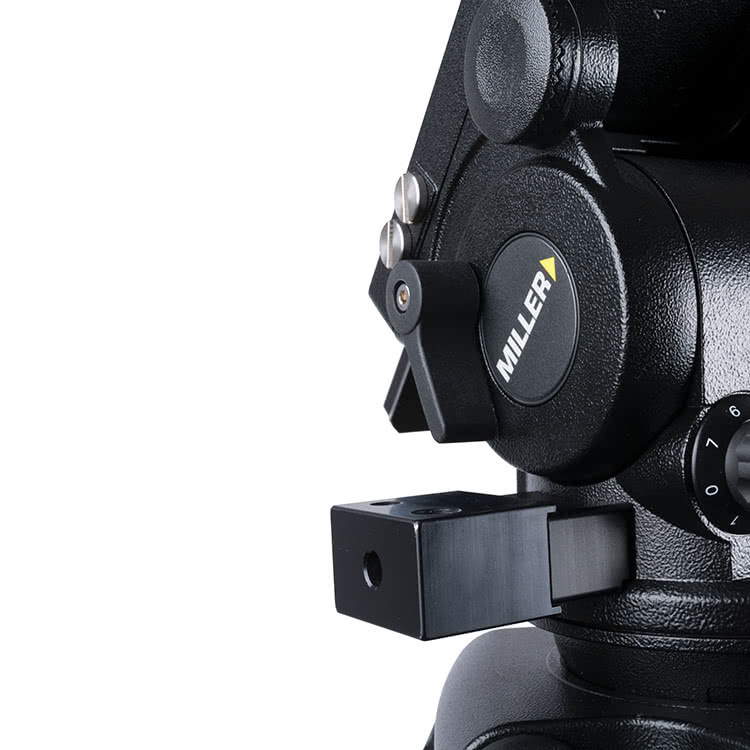

  • Side mounting point for viewfinders and accessories.
  • 3 year warranty.
From your nearest dealer

Following in the tradition and reputation of the world-renowned Arrow series, the Arrowx 7 sets new dimensions in professional camera support augmenting the power of expression of creative professionals.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

6-25kg (13.2-55.1lb) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

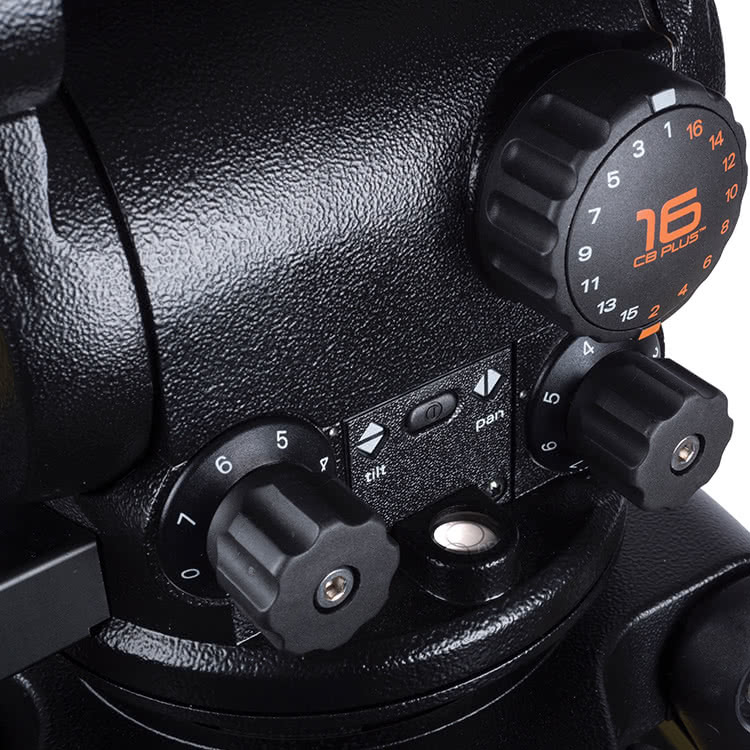

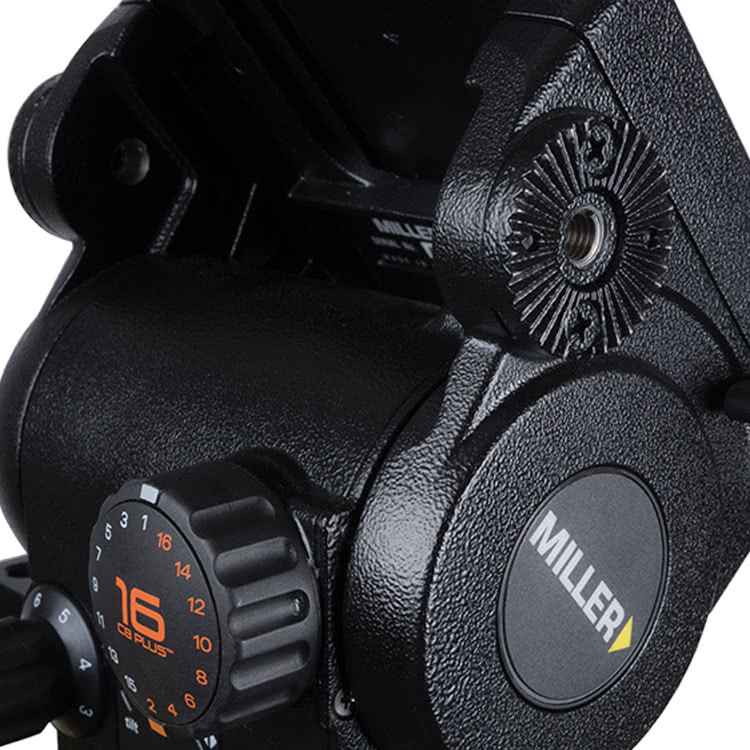

CB Plus™ is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup.

CB Plus™ features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently.

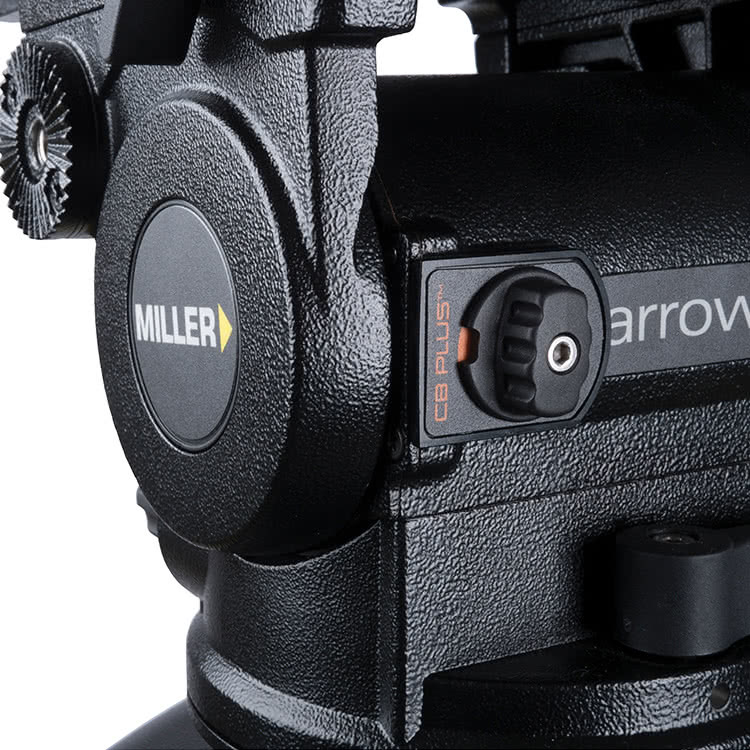

The CB Plus™ “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

The new Arrowx 7 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

CAT# – 1076

Specifications - Arrowx 7 Fluid Head

Camera Platform

Quick release camera plate (Euro)

Counterbalance Positions

16 selectable positions

Height Above Bowl

162mm (6.4")

Illuminated Controls

Bubble Level

Mounting Base

Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting

Pan Handle

Telescopic 390-590mm (15.4-23.2")

Pan Range

360°

Pan Tilt Drag

7 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

6.0-25.0kg (13.2-55.1lbs)

Sliding Range

120mm (4.7)

Temperature Range

-40° to +65°C (-40° to +149°F)

Tilt Range

+ 90°/ -75°

Weight

3.4kg (7.4lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041000590
