Arrowx 7 HD 2 Stage Carbon Fibre

Compare

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Perfect for payloads to 6-25kg (13.2-55.1lbs).
Integrated 100mm bowl.
2-stage flip lock leg extension.
Lightweight carbon fibre tubing.
Comes with mid-level spreader and rubber feet.
3 year warranty.

Make a Sales Enquiry

2 customer(s) had already enquired for this product.

From your nearest dealer

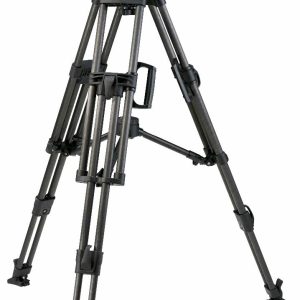

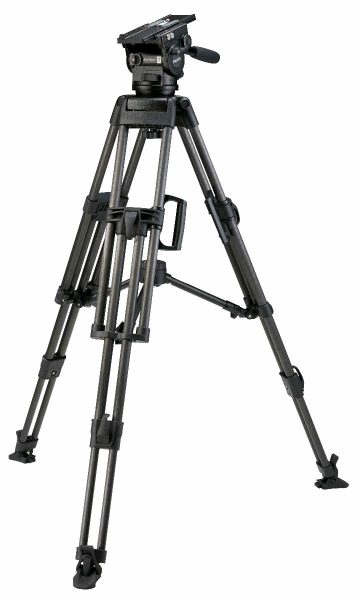

The 3179 Arrowx 7 HD 2 stage system, fitted with mid-level spreader is designed for speed of setup, high level of stability, height range and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow^x 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrow^x 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

The Arrowx 7 HD 2 stage (carbon fibre) tripod and mid-level spreader which makes for one of the most solid system packages in the Miller range. The system can support EFP and OB applications and the mid-level spreader means system can be set up in all terrains.

Specifications - Arrowx 7 HD 2 Stage Carbon Fibre

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	642-1752mm (25.3-69.0")
Illuminated Controls	Bubble Level
Leg Extension	2-stage
Leg Material	Carbon fibre
Lock Type	Fliplock
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	6.0-25.0kg (13.2-55.1lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	912mm (35.9")
Weight	9.6kg (21.1lbs)

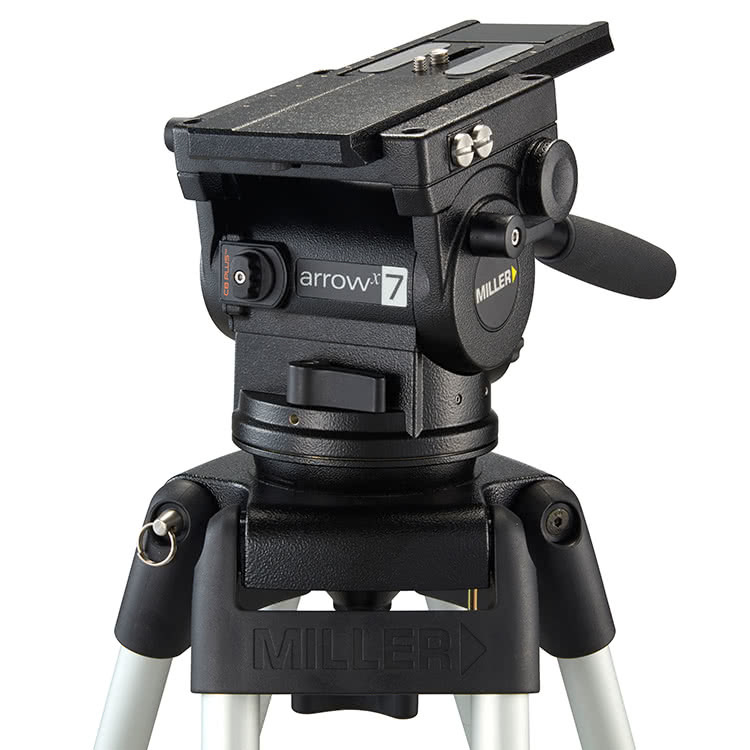

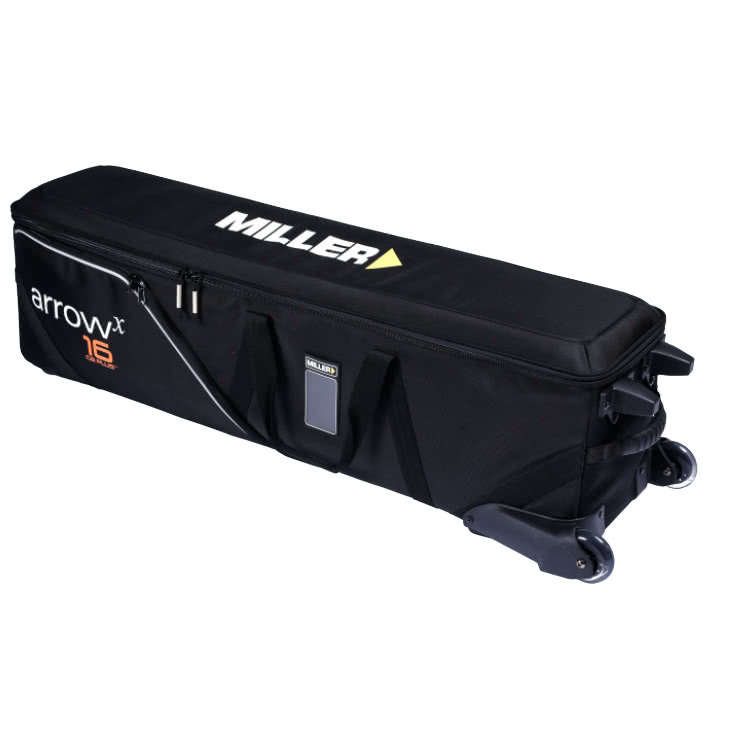

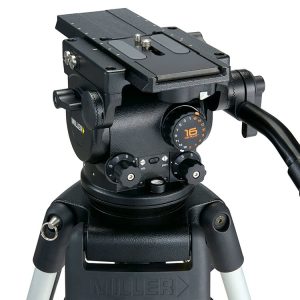

Components	1076: Arrowx 7 fluid head, 925: HD 2-stage tripod (carbon fibre), 993: Mid-level spreader, 475: Rubber feet (set of 3), 696: Pan handle – telescopic with clamp, 3534: Arrowx shell case on wheels
