CAT: 3155

Arrowx 7 Sprinter II 1 Stage Alloy

Compare

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Perfect for payloads to 6-25kg (13.2-55.1lbs).
Integrated 100mm bowl.
High speed independent 1-stage leg locks.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 1-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

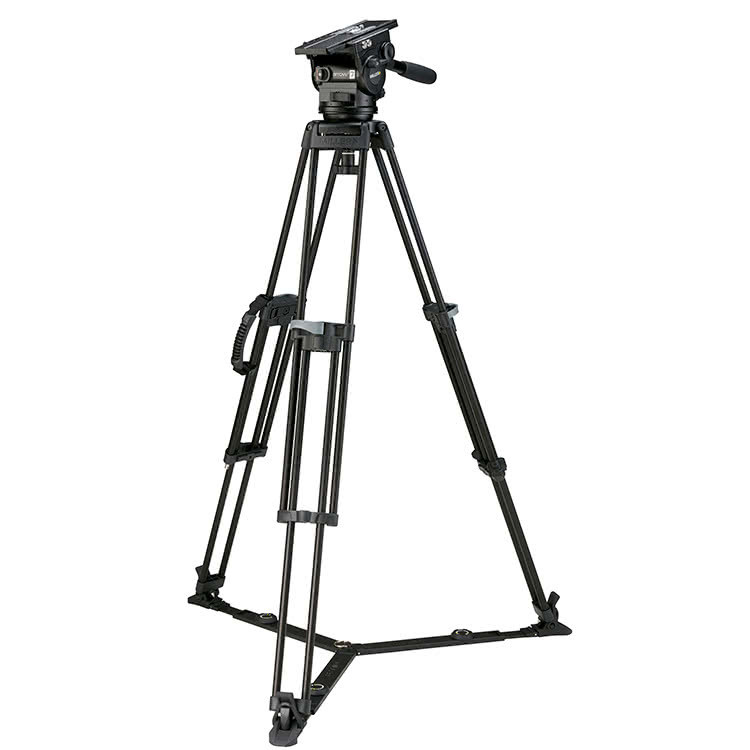

The 3155 Arrowx 7 Sprinter II 1 Stage system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow^x 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrow^x 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

The Arrowx 7 Sprinter II 1 Stage (alloy) tripod and ground spreader to give incredible speed of set up.

Specifications - Arrowx 7 Sprinter II 1 Stage Alloy

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	797-1587mm (31.4-62.5")
Illuminated Controls	Bubble Level
Leg Extension	1-stage
Leg Material	Alloy
Lock Type	HS Single Action
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	6.0-25.0kg (13.2-55.1lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	1002mm (39.4")
Weight	7.8kg (17.3lbs)

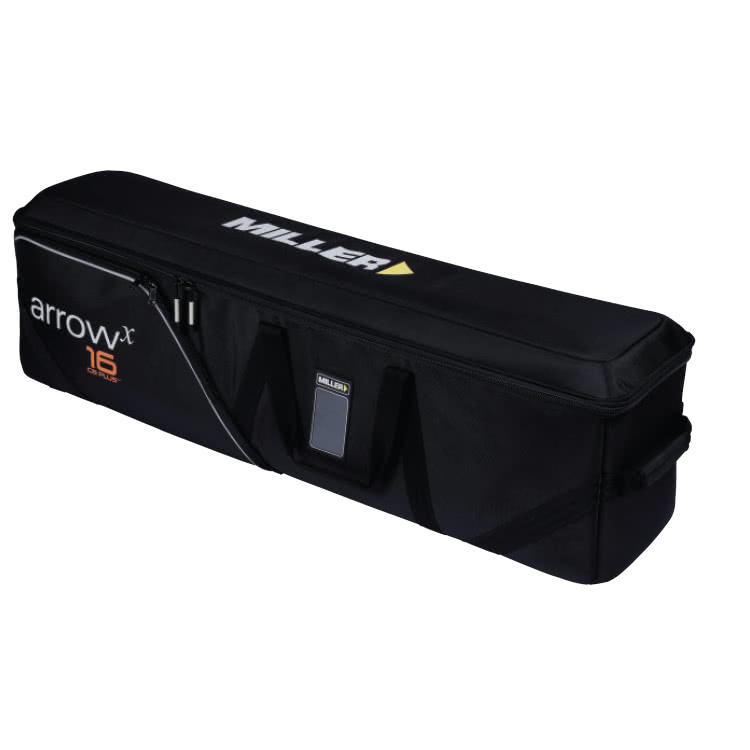

Components	1076: Arrowx 7 fluid head, 1589G: Sprinter II 1-stage tripod (alloy), 470: On ground spreader, 696: Pan handle – telescopic with clamp, 3500: Arrowx softcase 1-stage
