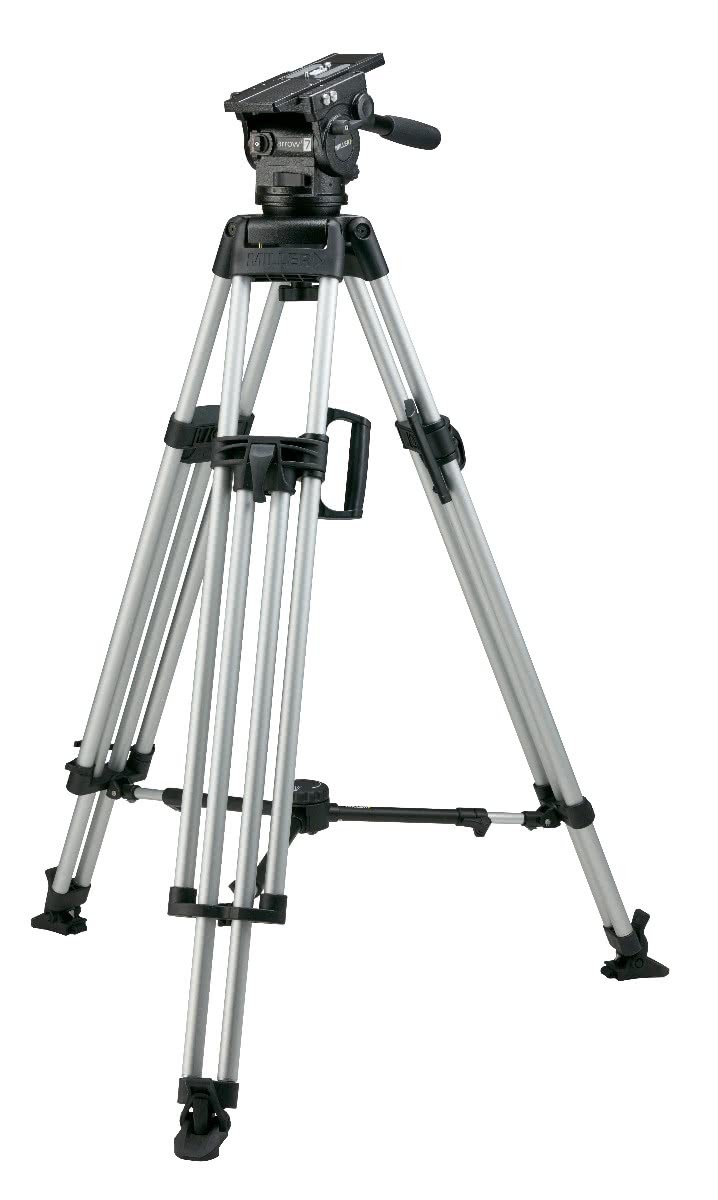

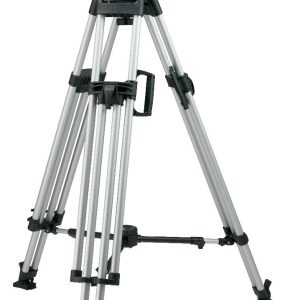

The 3175 Arrowx 7 HD 1 stage system, fitted with mid-level spreader is designed for speed of setup, high level of stability, and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

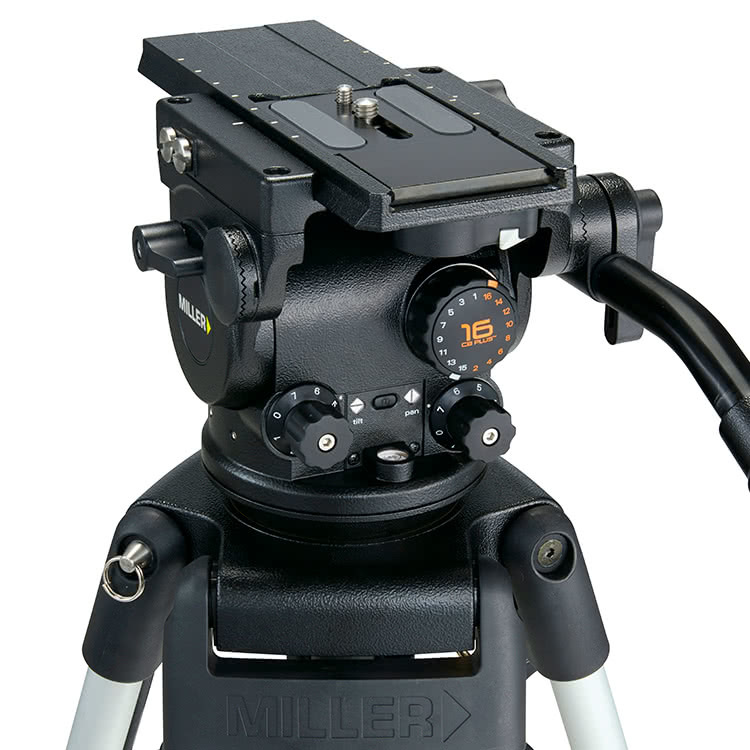

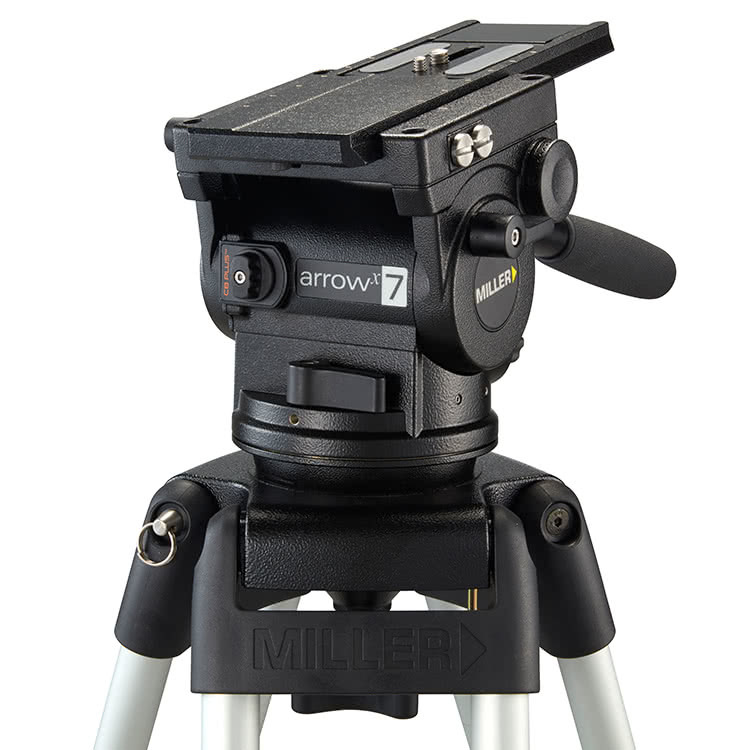

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
The Arrowx 7 HD 1 stage (alloy) tripod and mid-level spreader which makes for one of the most solid system packages in the Miller range. The system can support EFP and OB applications and the mid-level spreader means system can be set up in all terrains.
Quick release camera plate (Euro)
16 selectable positions
162mm (6.4")
947-1737mm (37.3-68.4")
Bubble Level
1-stage
Alloy
Flip lock
Ø100mm (3.9") ball levelling
Telescopic 390-590mm (15.4-23.2")
360°
7 selectable fluid drag positions + 0
Positive lock calliper brake system
6.0-25.0kg (13.2-55.1lbs)
120mm (4.7)
-40° to +65°C (-40° to +149°F)
+ 90°/ -75°
1092mm (43")
10.4kg (23.1lbs)
1076: Arrowx 7 fluid head, 931: HD 1-stage tripod (alloy), 993: Mid-level spreader, 475: Rubber feet (set of 3), 696: Pan handle – telescopic with clamp
