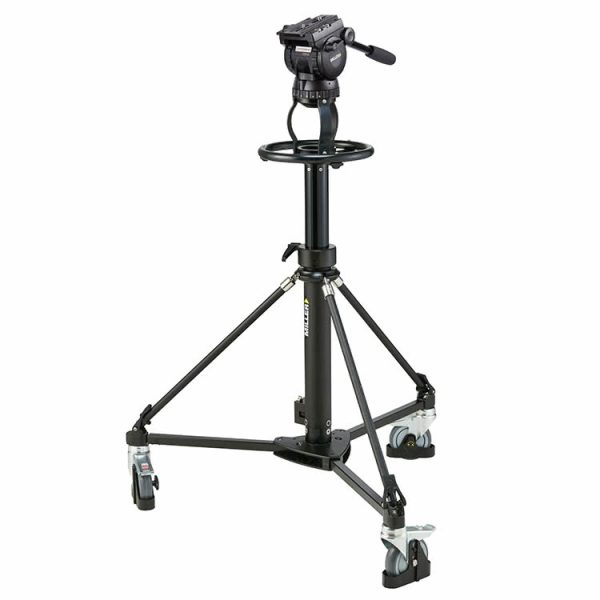

CX10 Combo Pedestal

Compare
  • 7 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Plus™ counterbalance system.
  • Perfect for payloads to 0-12.0kg (0-26.4lbs).
  • Quick action column lock.
  • Smooth 350mm (13.8”) stroke.
  • Independent 125mm dolly wheel brake system.
  • Sturdy adjustable cable guards.
  • Steering wheel diameter 294mm (11.6”).
  • Dolly tracking width 920mm (36.2”).
From your nearest dealer

The 3797 CX10 Combo pedestal is the epitome of lightweight portability, featuring an air-adjustable column system that provides an impressive 350mm (13.8”) stroke and a payload range of 0-12.0kg (0-26.4lbs).

Built with robust construction for maximum stability and reliability, this pedestal offers a user-friendly design with simple setup procedures, ensuring a stress-free experience for operators.

The Cx10 with 7 selectable positions of fluid pan and tilt drag, along with the innovative 16 position CB Plus™ counterbalance system, and is perfectly suited for payloads up to 12.0kg (26.4lbs).

The Combo Pedestal with its quick-action column lock ensures smooth adjustments, while the independent 125mm dolly wheel brake system enhances control during operation.

Furthermore, sturdy adjustable cable guards, a steering wheel with a diameter of 294mm (11.6”), and a dolly tracking width of 920mm (36.2”) further contribute to the versatility and efficiency of this pedestal.

The CX10 Combo pedestal stands out as the top choice for studio operators seeking a versatile solution that exceeds expectations in terms of performance, ease of use, and reliability.

Specifications - CX10 Combo Pedestal

Column In-Shot Stroke

350mm (13.8")

Height Range

1062-1412mm (41.8-55.6")

Mounting Base

Ø100mm (3.9") ball levelling

Payload Range

0-12.0kg (0-26.4lbs)

Steering Wheel Diameter

Ø294mm (11.6")

Tracking Width

1072mm (42.2")

Weight

18.0kg (39.7lbs)

Wheel Diameter

Ø125mm (4.9")

Components

1096: CX10 fluid head, 679: Pan handle – fixed with clamp, 1960: Combo pedestal
