CAT: 1978

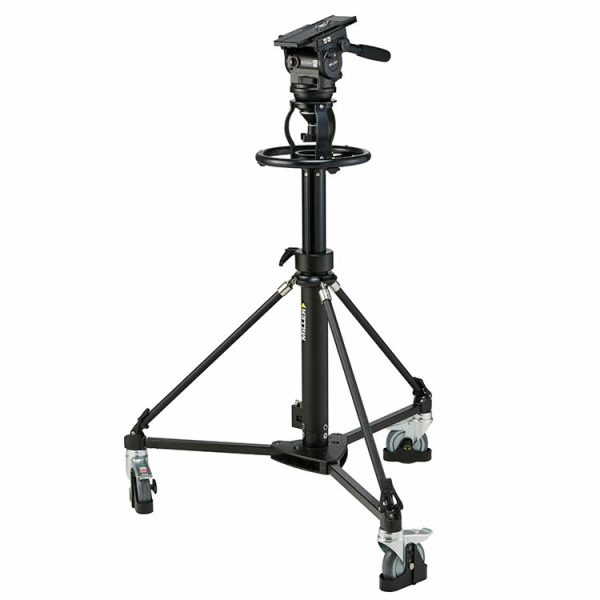

Arrowx 5 Combo Pedestal

Compare
  • 7 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Plus™ counterbalance system.
  • Perfect for payloads to 2-21kg (4.4-46.2lbs).
  • Quick action column lock.
  • Smooth 350mm (13.8”) stroke.
  • Independent 125mm dolly wheel brake system.
  • Sturdy adjustable cable guards.
  • Steering wheel diameter 294mm (11.6”).
  • Dolly tracking width 920mm (36.2”).
From your nearest dealer

Introducing the 1978 Arrowx 5 Combo pedestal: a beacon of lightness and portability, engineered with an air adjustable column system granting a generous 350mm (13.8”) stroke, capable of accommodating payloads ranging from 2 to 21kg (4.4 to 46.2lb).

Arrowx 5 Combo pedestal is crafted for durability, its robust construction ensures unparalleled stability and reliability. Embracing user convenience, it boasts intuitive features, facilitating effortless setups and stress-free operation.

In a league of its own, the Combo pedestal emerges as the premier choice for studio operators seeking versatility without compromise. With 7 fluid pan and tilt drag positions plus 0, and a 16-position CB Plus™ counterbalance system, the Arrowx 5 empowers precise control over motion. Designed to accommodate payloads within the 2-21kg (4.4-46.2lb) range, it offers swift column lock action and a seamless 350mm (13.8”) stroke.

Equipped with an independent 125mm dolly wheel brake system and sturdy adjustable cable guards, it ensures smooth operation and cable management. The inclusion of a 294mm (11.6”) steering wheel further enhances manoeuvrability, cementing its status as the epitome of excellence in studio pedestals.

Specifications - Arrowx 5 Combo Pedestal

Column In-Shot Stroke

350mm (13.8")

Height Range

1062-1412mm (41.8-55.6")

Mounting Base

Ø100mm (3.9") ball levelling

Payload Range

2.0-21.0kg (4.4-46.2lbs)

Steering Wheel Diameter

Ø294mm (11.6")

Tracking Width

1072mm (42.2")

Weight

18.0kg (39.7lbs)

Wheel Diameter

Ø294mm (11.6")

Components

1074: Arrowx 5 fluid head, 696: 2 x Pan handle – telescopic with clamp, 1960: Combo pedestal

Compatible Accessories

EAN | UPC | GTIN 9354041000934
