CAT: 3784

CX14 Solo-Q 100 3-Stage Carbon Fibre

to suit 100mm fluid heads Compare

Compact, lightweight and versatile.
100mm ball levelling.
Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
3-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
Lightweight carbon fibre legs.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

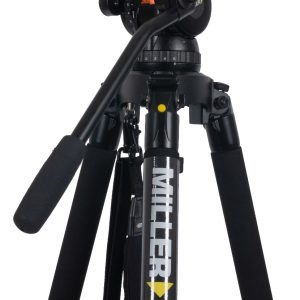

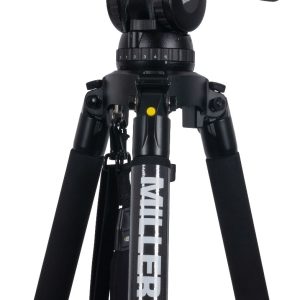

The 3784 CX14 Solo-Q 100 3-stage (carbon fibre) tripod system combines the innovative 2520 Solo-Q 100 tripod and CX14 fluid head.

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 – 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

Matched with the 3 stage Solo-Q (carbon fibre) tripod that results in range topping height range of 391-2042mm (15.4-80.4″) all terrain versatility in the lightest CX14 system package.

The CX14 Solo-Q 100 3-stage tripod system seamlessly merges the cutting-edge technology of the CX14 fluid head with the versatility and durability of the 2520 Solo-Q 100 tripod

Specifications - CX14 Solo-Q 100 3-Stage Carbon Fibre

Camera Platform	Quick release

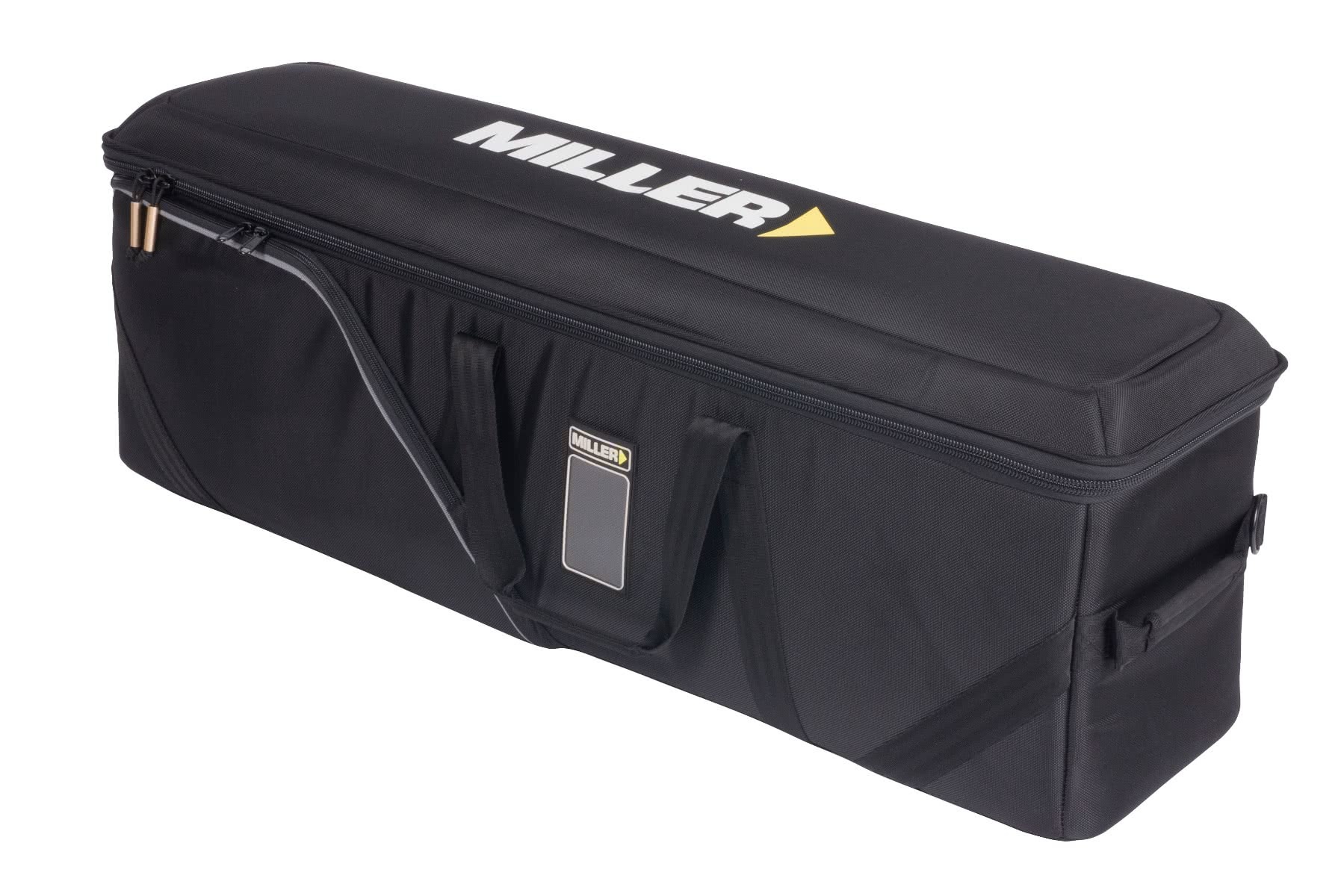

Components	1097: CX14 fluid head, 2520: Solo-Q 100 3-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3502: Arrowx softcase 2-stage
Counterbalance Positions	16 selectable positions (15+0)
Height Above Bowl	150mm (6.0")
Height Range	391-2042mm (15.4-80.4")
Illuminated Controls	Bubble Level
Leg Extension	3-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Fixed 390 mm (15.4”)
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-14.0 kg (0-30.9 lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	842mm (33.2")
Weight	6.2kg (13.6lbs)

1097 CX14 Product Data Sheet

(Size: 4469.85 KB)

2520 Solo 100 3-Stage (Carbon Fibre) Data Sheet

(Size: 156.98 KB)

CompassX Operator Manual

(Size: 5242.35 KB)
