CAT: 1640

DS10 Solo 75 2 Stage Alloy

Compare

Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 2.5-5kg (5.5-11lbs).
Integrated 75mm bowl.
2-stage rapid leg lock extension.
Durable black anodised alloy tubing.

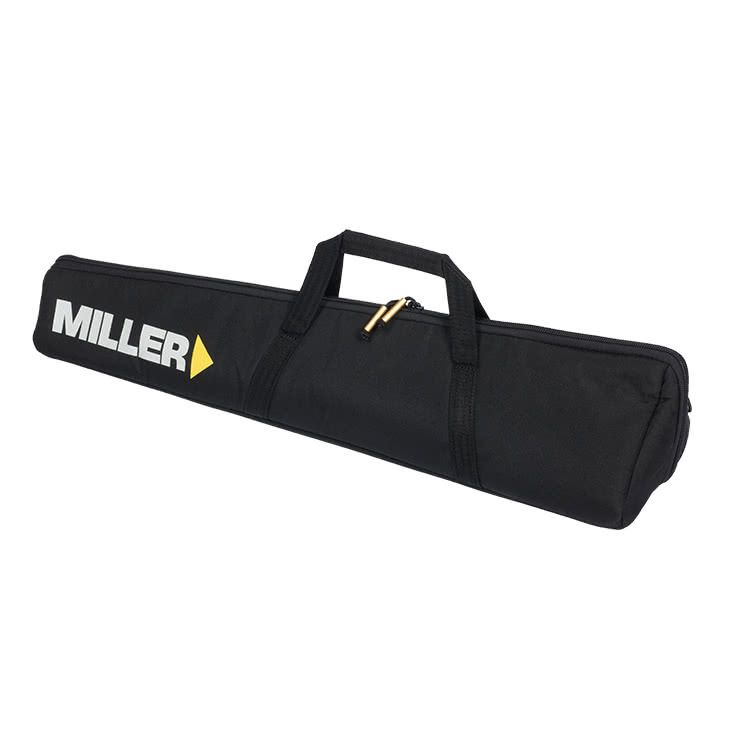

Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

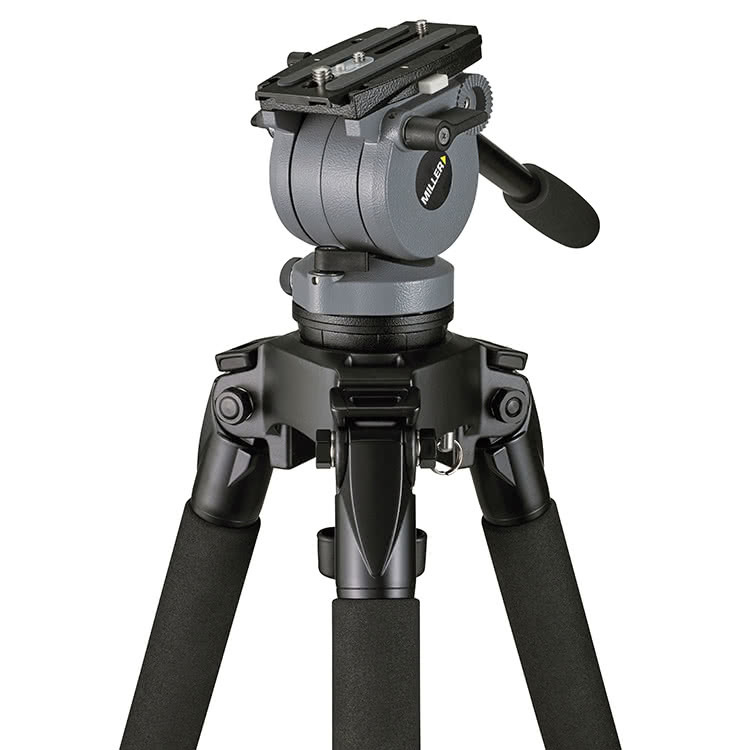

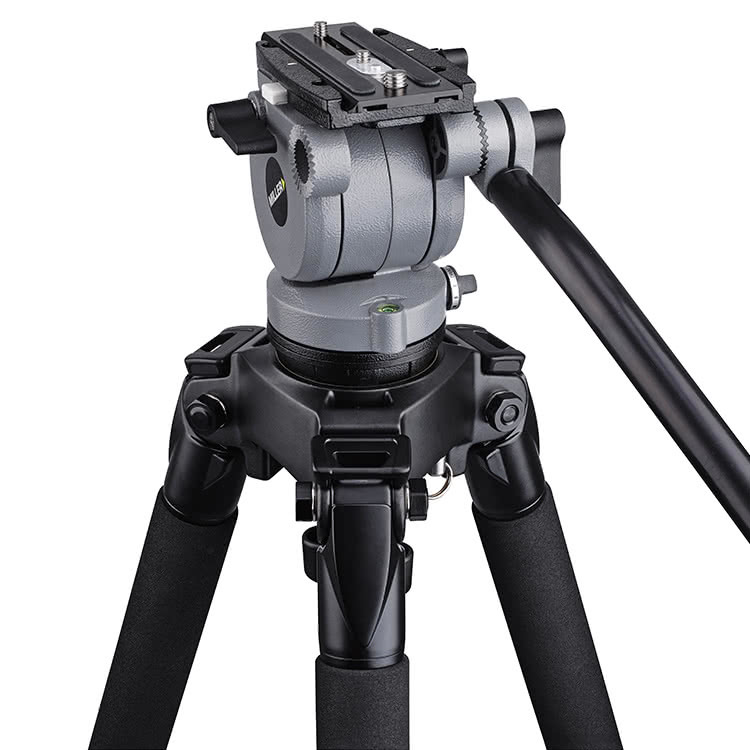

The 1640 DS10 Solo 75 2 Stage system combines the ultra-rigid alloy Solo 1630 tripod with the versatile DS10 75mm ball levelling head & selectable counterbalance.

The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field. DS10 is an all in one solution for payloads up to 5kg (11lbs).

Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

The DS10 Solo 75 2 Stage (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), and offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.

Specifications - DS10 Solo 75 2 Stage Alloy

Camera Platform	Sliding camera plate
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	371-1762mm (14.6-69.4")
Leg Extension	2-stage telescopic
Leg Material	Alloy
Lock Type	Concentric Rapid Lock
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.5-5.0kg (5.5-11.0lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	837mm (33")
Weight	4.8kg (10.7lbs )
Components	182 DS10 fluid head 1630 Solo 75 2-stage tripod (alloy) 681 Pan handle – fixed with clamp 3516 Solo 75 2-stage tripod bag
