CAT: 1511

DS10 Solo-Q 75 2 Stage Carbon Fibre

Compare

Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 2.5-5kg (5.5-11lbs).
Integrated 75mm bowl.
Lightweight carbon fibre legs.
2-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

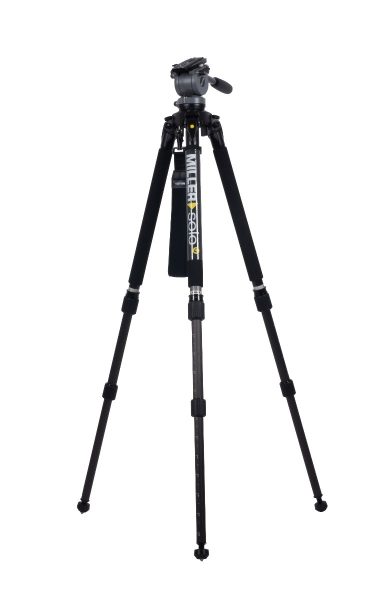

The 1511, DS10 Solo-Q 75 2 Stage system combines the ultralight, ultra-rigid carbon fibre Solo-Q tripod with the versatile DS10 75mm ball levelling head & selectable counterbalance.

The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field. DS10 is an all in one solution for payloads up to 5kg (11lbs).

Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

The DS10 Solo-Q 75 2 Stage carbon fibre tripod offering a working height range of 379-1767mm (14.9-69.5″), rapid action twist locks, versatility of the Solo leg angles with the added benefit of carbon fibre construction.

Specifications - DS10 Solo-Q 75 2 Stage Carbon Fibre

Camera Platform	Sliding camera plate
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	371-1751mm (14.6-68.9")
Leg Extension	2-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.5-5.0kg (5.5-11.0lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	831mm (32.7")
Weight	4.5kg (10.0lbs )
