CAT: 828

DS10 Toggle LW 1 Stage alloy

Compare

Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 2.5-5kg 5.5-11lbs.
Integrated 75mm bowl.
1-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Above ground spreader.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

The 828 DS10 Toggle LW 1 stage system comes in a solid, highly reliable support package providing users with a cost-effective support option of full broadcast performance.

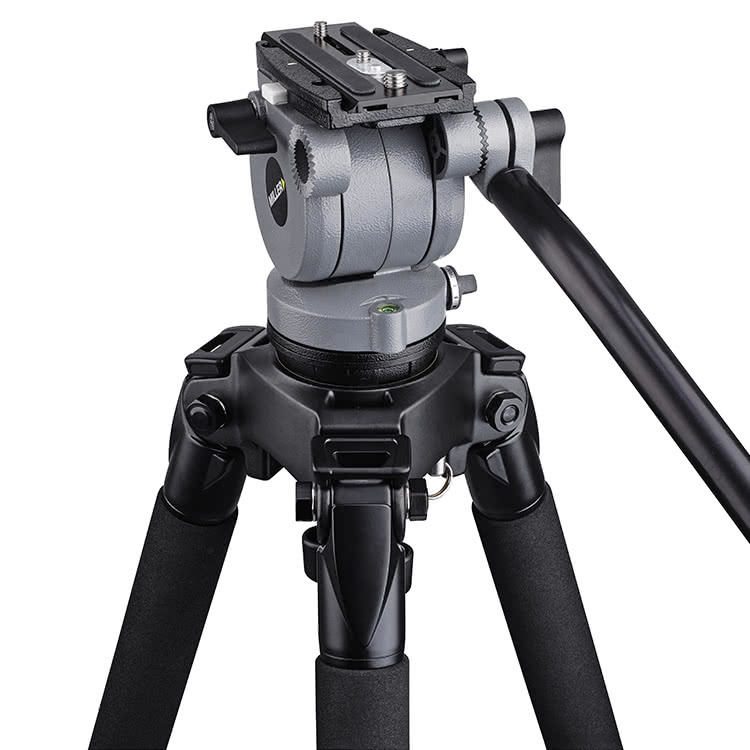

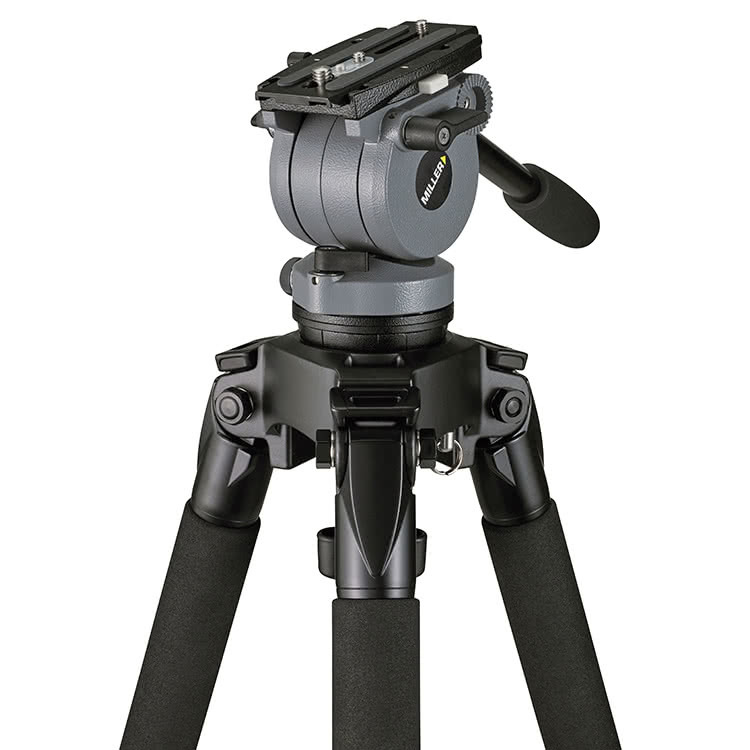

The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field.

DS10 fluid head is an all in one solution for payloads up to 5kg (11lbs).

Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

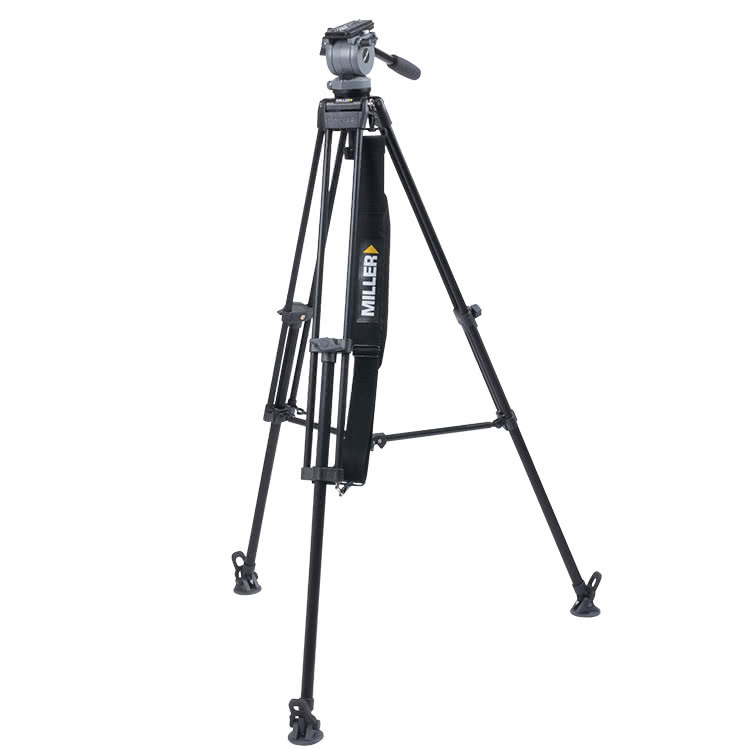

The DS10 Toggle LW 1 stage tripod alloy with above ground spreader, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.

Specifications - DS10 Toggle LW 1 Stage alloy

Camera Platform	Sliding camera plate

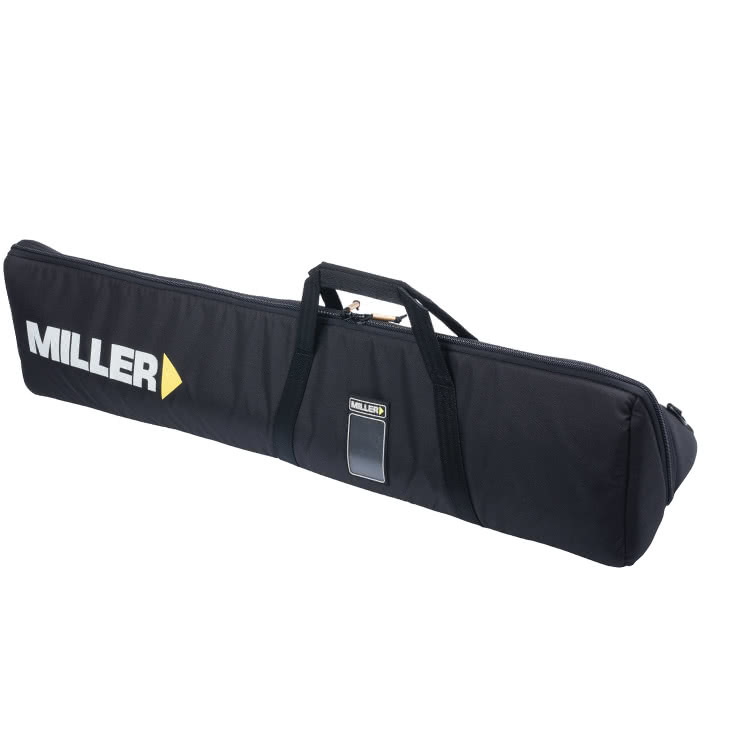

Components	182: DS10 fluid head, 440: Toggle 75 1-stage tripod (alloy), 835: DS tripod spreader, 550: Rubber feet (set of 3), 681: Pan handle – fixed with clamp, 3512: Softcase 1-stage, 554: Shoulder strap (padded)
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	Ø7 57-1467mm (29.8-57.6" )
Leg Extension	1-stage
Leg Material	Alloy
Lock Type	Toggle
Mounting Base	75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.5-5.0kg (5.5-11.0lbs)
Sliding Range	60mm (2.4")
Tilt Range	+ 90°/ -75°
Transport Length	967mm (38.1")
Weight	5.0kg (11.1lbs )
