CAT: 1643

DS20 Solo 75 2 Stage Alloy

Compare

Compact, lightweight and a hi-performer.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 5-10kg (11-22lbs).
Integrated 75mm bowl.
2-stage rapid leg lock extension.
Durable black anodised alloy tubing.

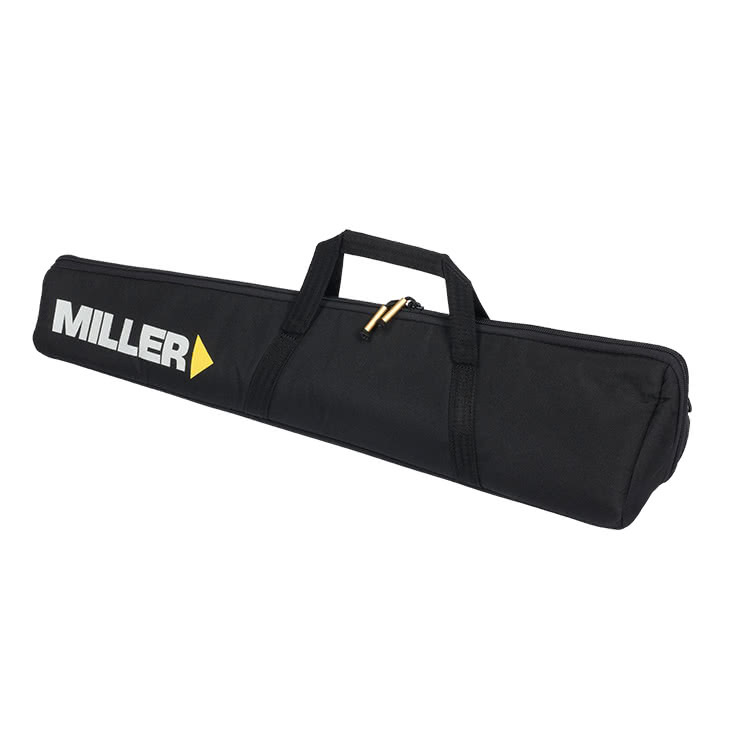

Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

3 customer(s) had already enquired for this product.

From your nearest dealer

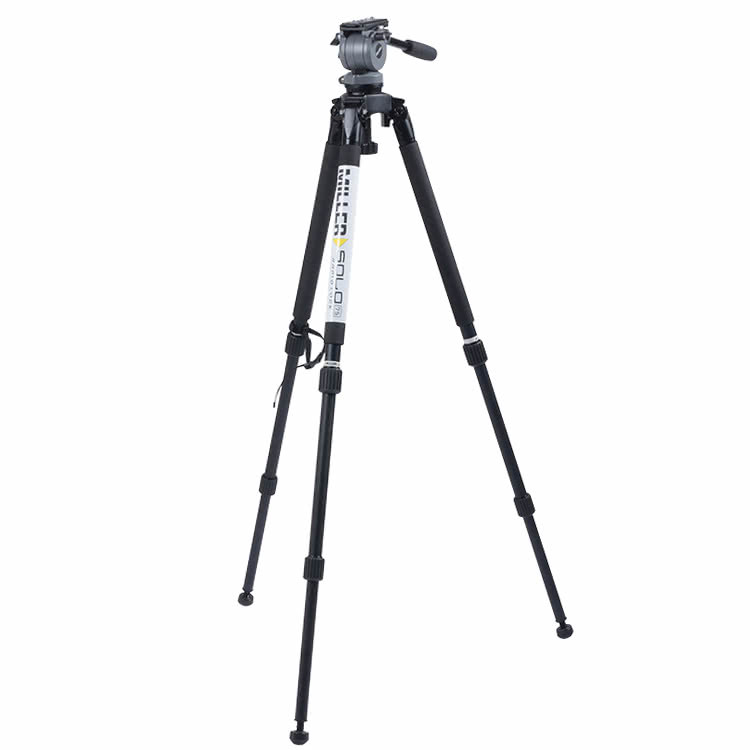

The 1643 DS20 Solo 75 2 Stage alloy system offers incredible price-performance solution for 10 kg/22 lbs payloads, combining the ultra-rigid alloy Solo 1630 tripod with the versatile DS20 75mm ball levelling head & selectable counterbalance.

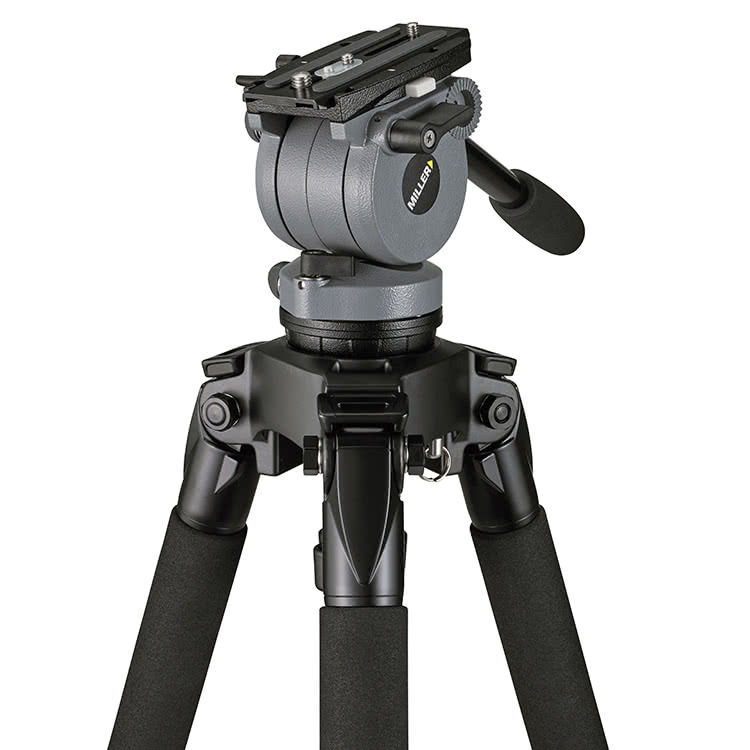

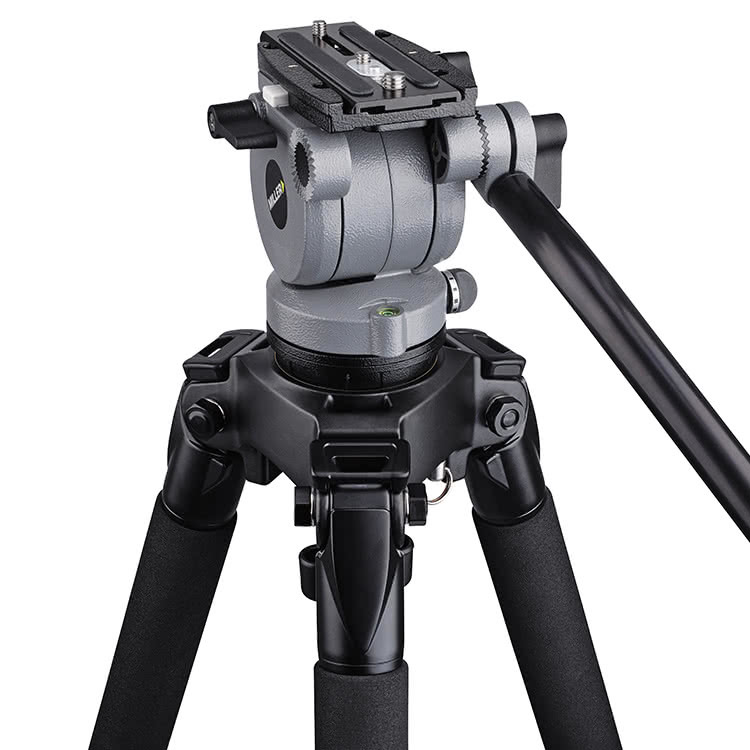

The DS20 provides a perfect lightweight solution for those who want a smaller fluid head but need more capacity than the DS10. An economical solution for payloads up to 10kg (22lbs).

Whether you are in the field or configured for small studio use, the dual position counterbalance plus
60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations. Whatever your application the DS20 will impress your clients.

The DS20 Solo 75 2 Stage (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.

Specifications - DS20 Solo 75 2 Stage Alloy

Camera Platform	Sliding camera plate
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	371-1762mm (14.6-69.4")
Leg Extension	2-stage telescopic
Leg Material	Alloy
Lock Type	Concentric Rapid Lock
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	5.0-10.0kg (11.0-22.0lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	837mm (33")
Weight	4.8kg (10.7lbs )
Components	184: DS20 fluid head, 1630: Solo 75 2-stage tripod (alloy), 681: Pan handle – fixed with clamp, 3516: Solo 75 2-stage tripod bag
