CAT: 848

DS20 Toggle 2 Stage Alloy

Compare

Compact, lightweight and a hi-performer.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 5-10kg (11-22lbs).
Integrated 75mm bowl .
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
On ground spreader.
3 year warranty.

Make a Sales Enquiry

2 customer(s) had already enquired for this product.

From your nearest dealer

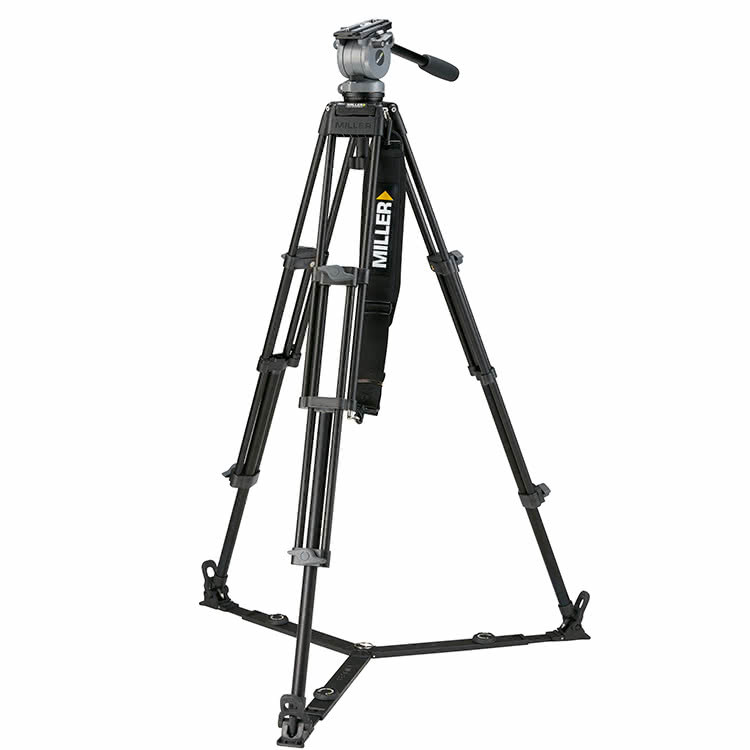

The 848 DS20 Toggle 2 stage system provides two stage height versatility in a solid, highly reliable support package providing users with a cost-effective support option of full broadcast performance.

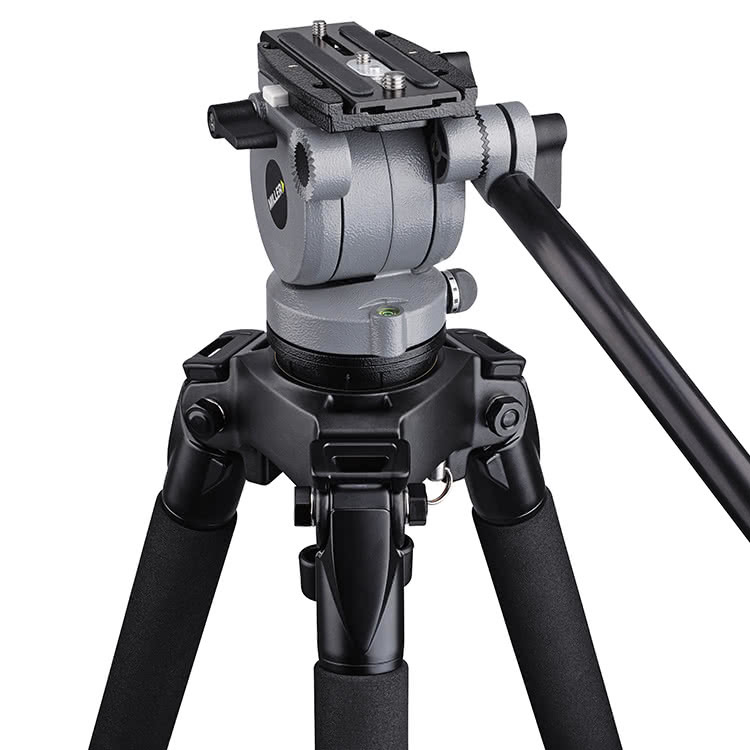

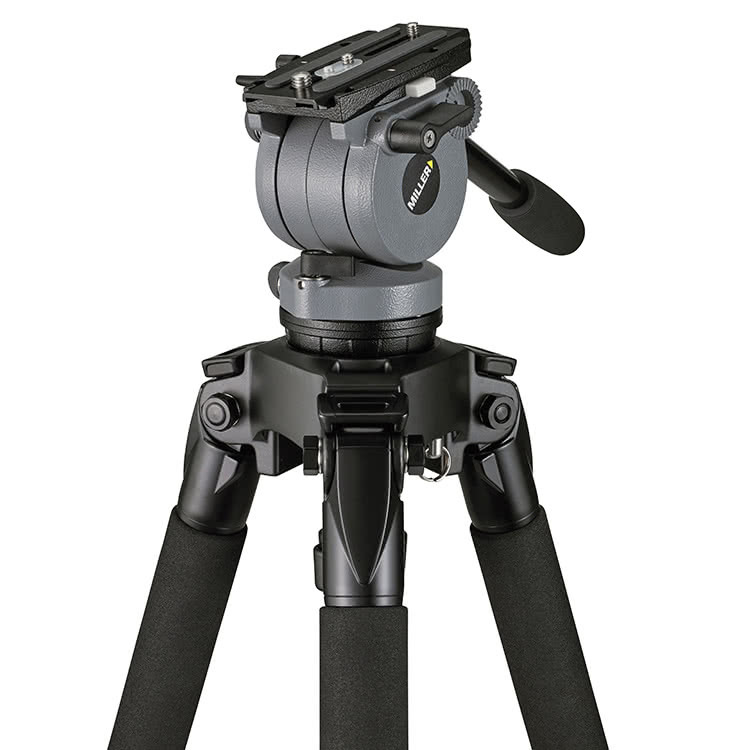

The DS20 fluid head provides a perfect lightweight solution for those who want a smaller fluid head with a greater capacity for payloads up to 10kg (22lbs) .

Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

The DS20 Toggle 2 stage alloy tripod and on ground spreader to give a large height range 527-1697mm (20.7-66.8″), positive leg toggle locks and quick pack down. Whatever your application the results achieved by using the 848, DS20/Toggle system will impress your clients.

Specifications - DS20 Toggle 2 Stage Alloy

Camera Platform	Sliding camera plate

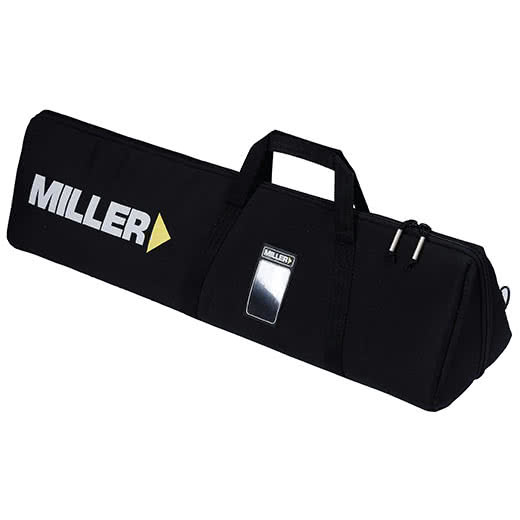

Components	184: DS20 fluid head, 420G: Toggle 75 2-stage tripod (alloy), 411: On ground spreader, 681: Pan handle – fixed with clamp, 554: Shoulder strap (padded), 3514: Softcase 2-stage
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	527-1697mm (20.7-66.8")
Leg Extension	2-stage
Leg Material	Alloy
Lock Type	Toggle
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	5.0-10.0kg (11.0-22.0lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	827mm (32.6")
Weight	5.9kg (13.1lbs)
