CAT: 1514

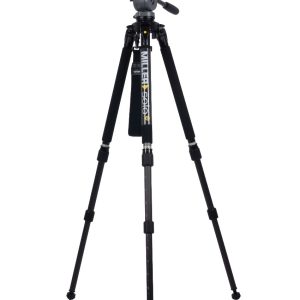

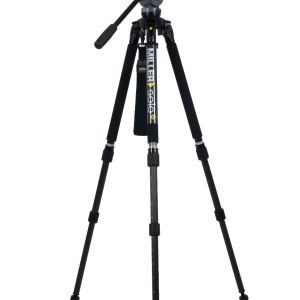

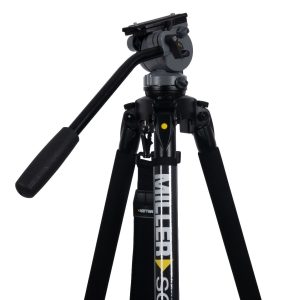

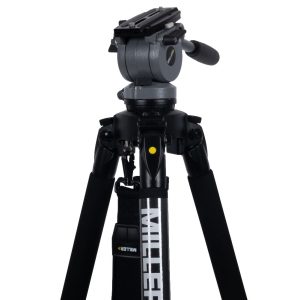

DS20 Solo-Q 75 2 Stage Carbon Fibre

Compare

Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 5-10kg (11-22lbs).
Integrated 75mm bowl.
Lightweight carbon fibre legs.
2-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
3 year warranty.

Make a Sales Enquiry

3 customer(s) had already enquired for this product.

From your nearest dealer

The 1514 DS20 Solo-Q 75 2 Stage system offers an ideal price to performance ratio and ultra-light carbon support for payloads between 5-10kg (11-22lbs).

The DS20 provides a perfect lightweight solution for those who want a smaller fluid head but need more capacity than the DS10. An economical solution for payloads up to 10kg (22lbs).

Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations. Whatever your application the DS20 will impress your clients.

DS20 Solo-Q 75 2 Stage carbon fibre tripod offering a working height range of 379-1767mm (14.9-69.5″), rapid action twist locks, Q-Lock speed and versatility of the Solo leg angles with the added benefit of carbon fibre construction.

Specifications - DS20 Solo-Q 75 2 Stage Carbon Fibre

Camera Platform	Sliding camera plate

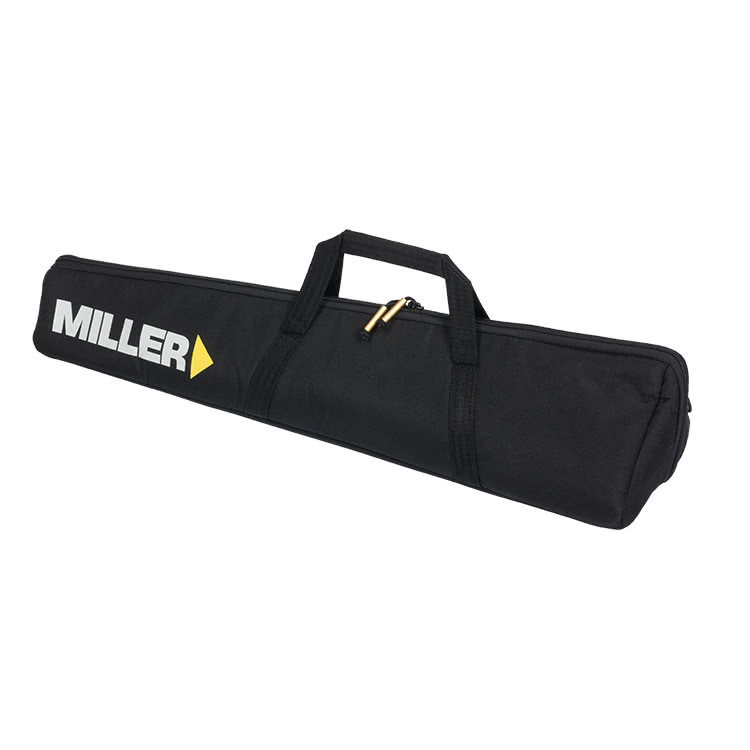

Components	184: DS20 fluid head, 2500: Solo-Q 75 2-stage tripod (carbon fibre), 681: Pan handle – fixed with clamp, 1520: Solo-Q shoulder strap (Aircell), 3516: Solo-Q 75 2 Stage tripod bag
Counterbalance Positions	2 selectable positions
Height Above Bowl	137mm (5.4")
Height Range	379-1767mm (14.9-69.5" )
Leg Extension	2-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø75mm (2.9") ball levelling
Pan Handle	Fixed length 390mm (15.4")
Pan Range	360°
Pan Tilt Drag	Adjustable fluid drag
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	5.0-10.0kg (11.0-22.0lbs)
Sliding Range	60mm (2.4")
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Transport Length	831mm (32.7")
Weight	4.5kg (10.2lbs )
