CAT: 1074

Arrowx 5 Fluid Head

The ENG/EFP Master Compare

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Wide payload range 2-21kg (4.4-46.2lbs).
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
Controls “all in one location” design for fast, easy and practical use.

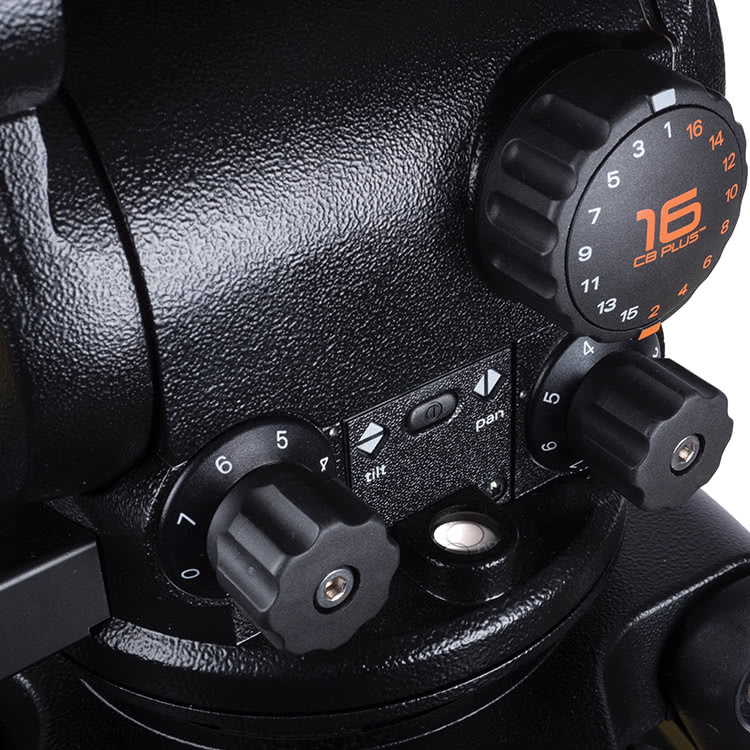

Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Quick release, 120mm sliding camera platform with camera plate (euro).
Removable ball level stud allows for flat base mounting with 3/8” screw thread.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.
Optional second pan handle mount.
Side mounting point for viewfinders and accessories.
3 year warranty.

Make a Sales Enquiry

1 customer had already enquired for this product.

From your nearest dealer

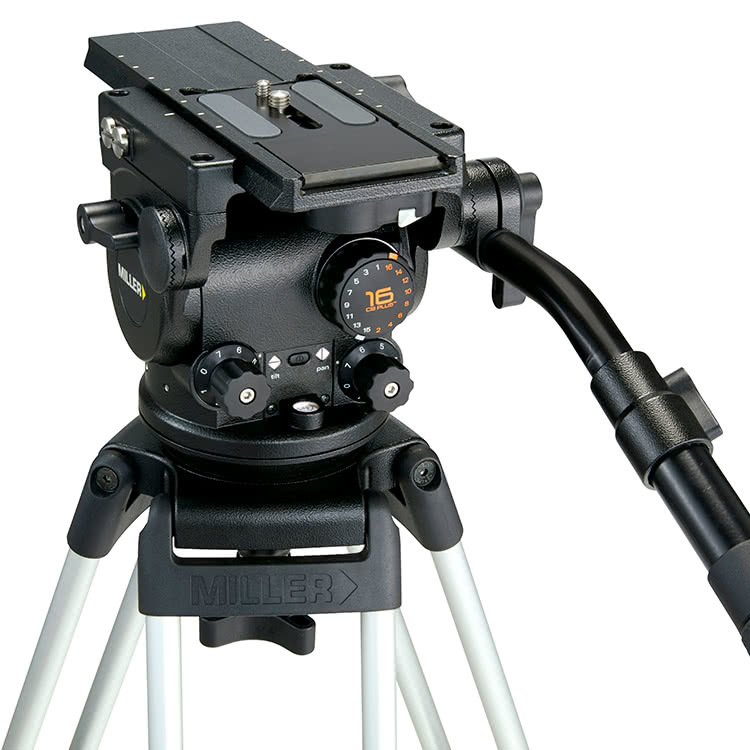

The Arrowx 5, a pinnacle of professional camera support that builds upon the esteemed legacy of the Arrow series. Crafted to empower the creative vision of professionals, the Arrowx 5 introduces new dimensions in camera support.

With its wide payload range of 2-21kg (4.4-46.2lb), precision fluid drag, and Miller’s revolutionary 16 position CB Plus™ counterbalance system, the Arrowx 5 offers the flexibility, setup speed, and shot accuracy demanded by professionals.

Ideal for ENG and EFP applications, the Arrowx 5 accommodates a variety of cameras, lenses, and accessories, thanks to its 7 + 0 selectable pan-tilt fluid drag positions.

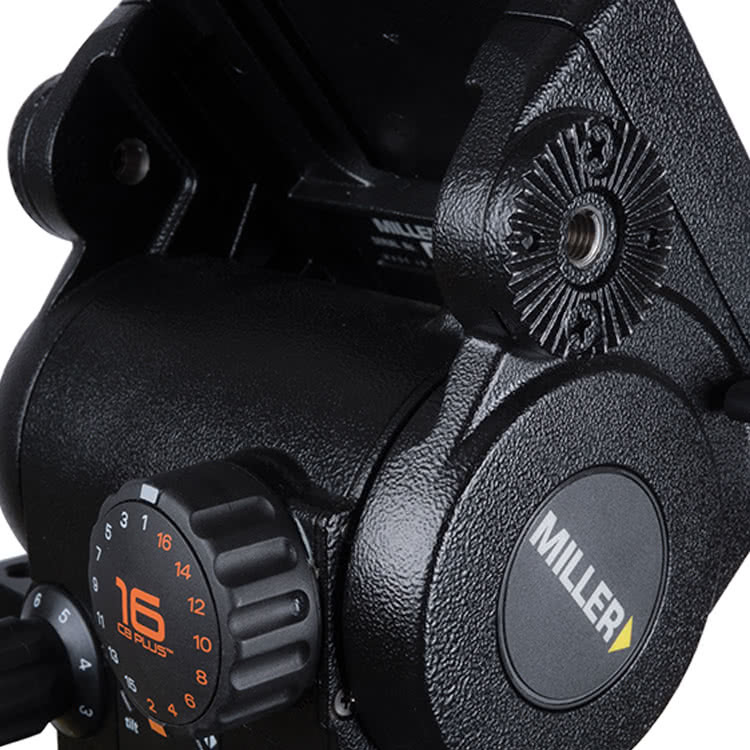

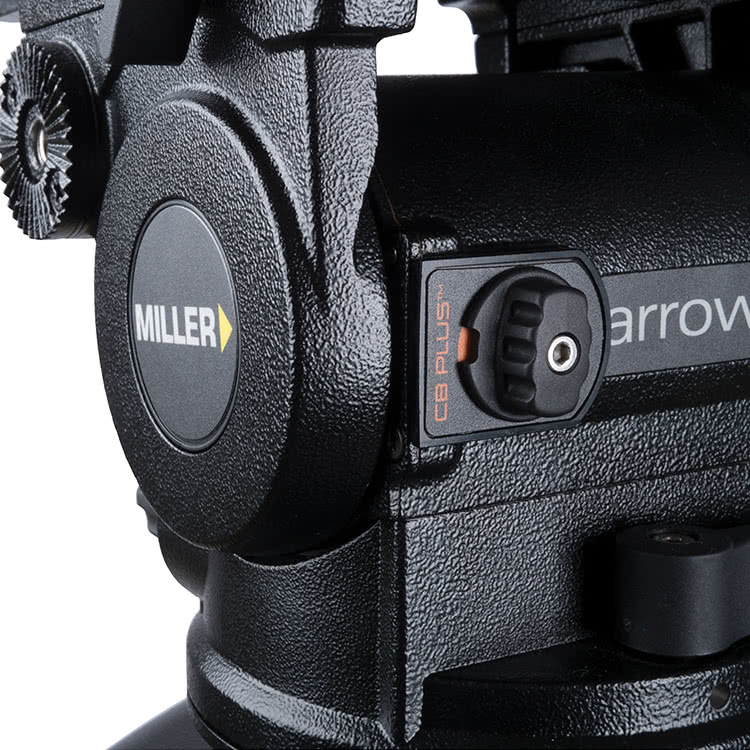

The CB Plus™ system revolutionizes counterbalance, featuring eight larger counterbalance steps for swift and precise adjustments. Its “one flick” switch, conveniently located at the front of the head, enables fine-tuning with half-step increments for optimal balance.

Backed by Miller’s hallmark reliability and “THE RIGHT FEEL”, the Arrowx 5 ensures every setup feels just right, delivering unmatched performance and peace of mind.

CAT# – 1074

Specifications - Arrowx 5 Fluid Head

Camera Platform	Quick release camera plate (Euro)
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Illuminated Controls	Bubble Level
Mounting Base	Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	2.0-21.0kg (4.4-46.2lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +149°F)
Tilt Range	+ 90°/ -75°
Weight	3.4kg (7.4lbs)
